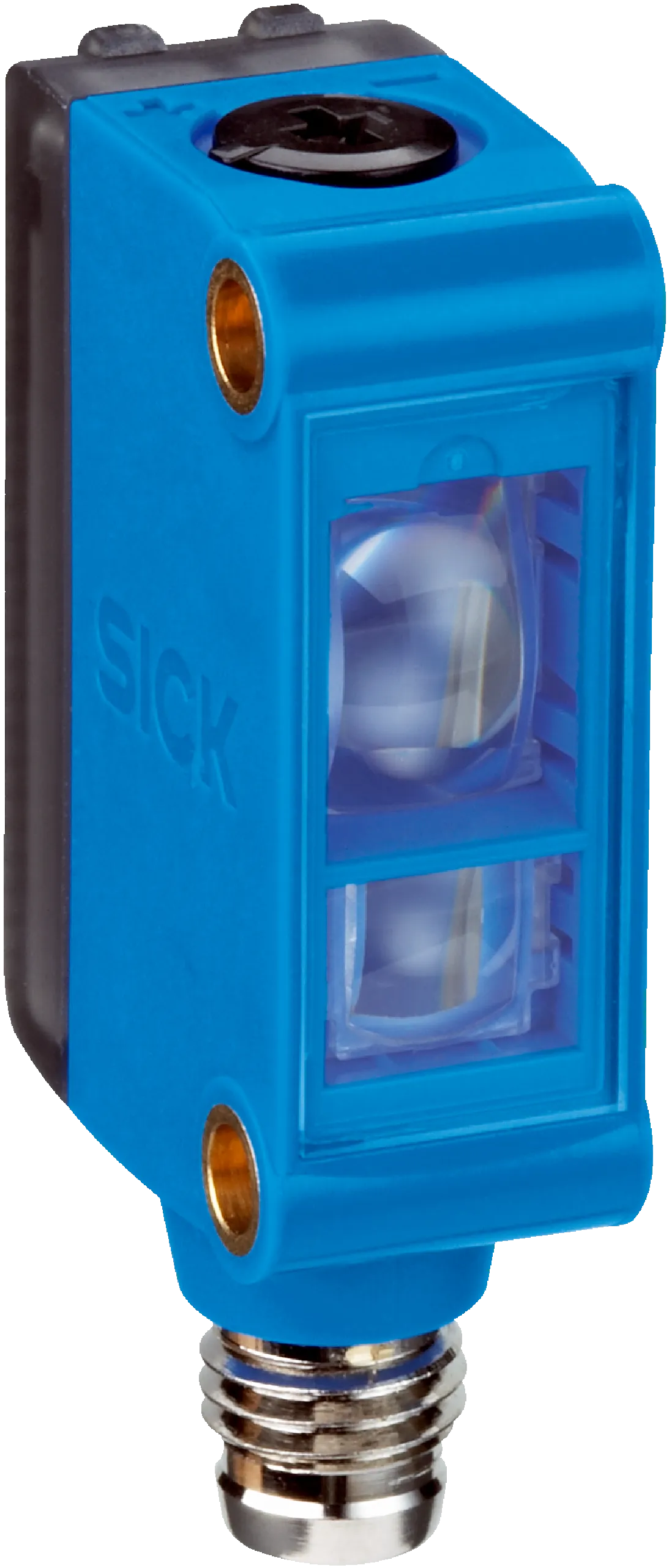

Sick KTM-MB31111P
Contrast sensors | KTM | KTM-MB31111P | Light source: LED, white | Communication interface: – | Sensing distance: 12.5 mm | Switching output: PNP, NPN | Light spot size: Ø 2 mm (12.5 mm) | Light spot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Contrast sensors | KTM | KTM-MB31111P | Light source: LED, white | Communication interface: – | Sensing distance: 12.5 mm | Switching output: PNP, NPN | Light spot size: Ø 2 mm (12.5 mm) | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Male connector M8, 4-pin | Adjustment: Potentiometer, screw driver | Housing material: Plastic
Specification
Features
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
|---|---|
| Sensing distance | ⤠12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Small |
| Light source | LED, white 1) |
| Light emission | Long side of housing |
| Light spot size | ÃÂ 2Â mm (12.5Â mm) |
| Light spot direction | Round |
| Receiving filters | None |
| Adjustment | Potentiometer, screw driver |
Electronics
| Supply voltage | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 5 Vpp 2) |
| Current consumption | <Â 50Â mAÂ 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Jitter | 25 µs |
| Switching output | PNP, NPN |
| Switching output (voltage) | PNP: HIGH = UV â¤Â 2 V / LOW approx. 0 V, NPN: HIGH = approx. UV / LOW â¤Â 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 50Â mAÂ 6) |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | ABS |
|---|---|
| Display | LED indicator green: power onLED indicator, yellow: Status switching output Q |
| Optics material | PMMA |
| Connection type | Male connector M8, 4-pin |
| Weight | 20Â g |
Ambient data
| Ambient operating temperature | â10 °C ... +55 °C |
|---|---|
| Ambient temperature, storage | â20 °C ... +75 °C |
| Shock load | According to IECÂ 60068 |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Connection type/pinouts
| Connection type | Male connector M8, 4-pin |
|---|---|
| BN 1 | + (L+) |
| WH 2 | Q NPN |
| BU 3 | - (M) |
| BK 4 | Q PNP |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (IEC EN 62471) | â |
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
