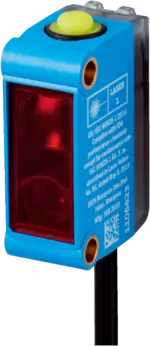

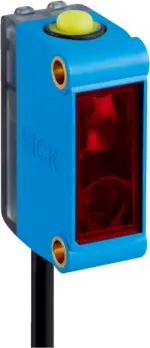

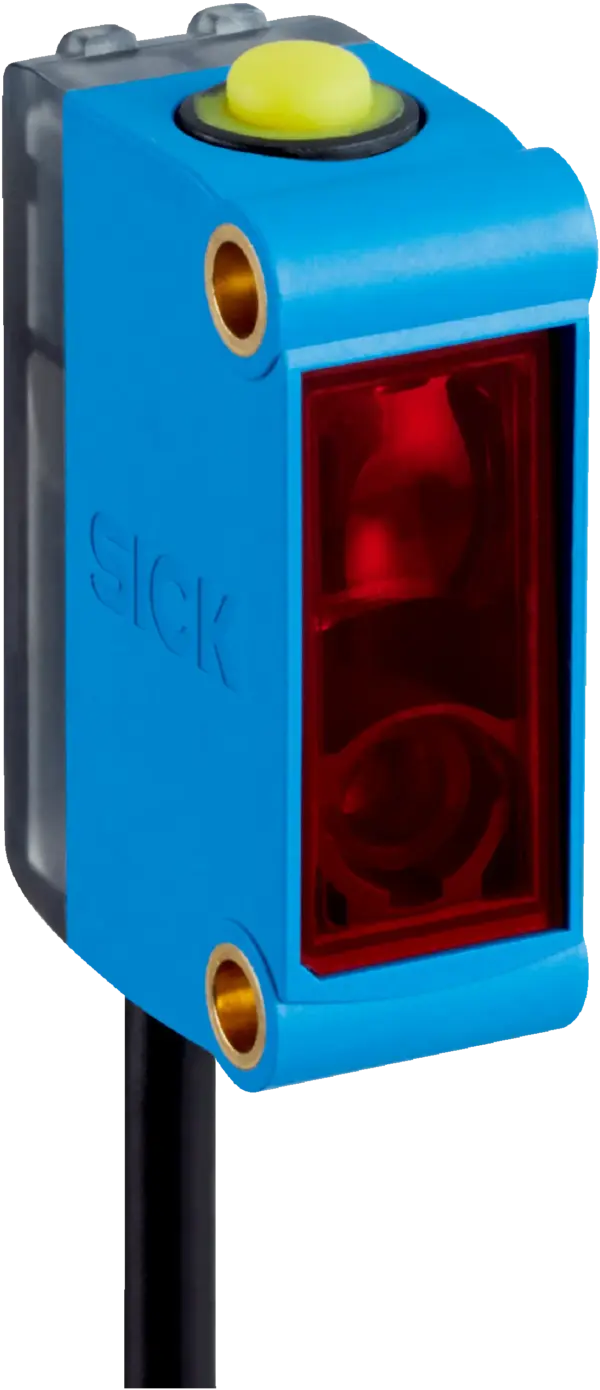

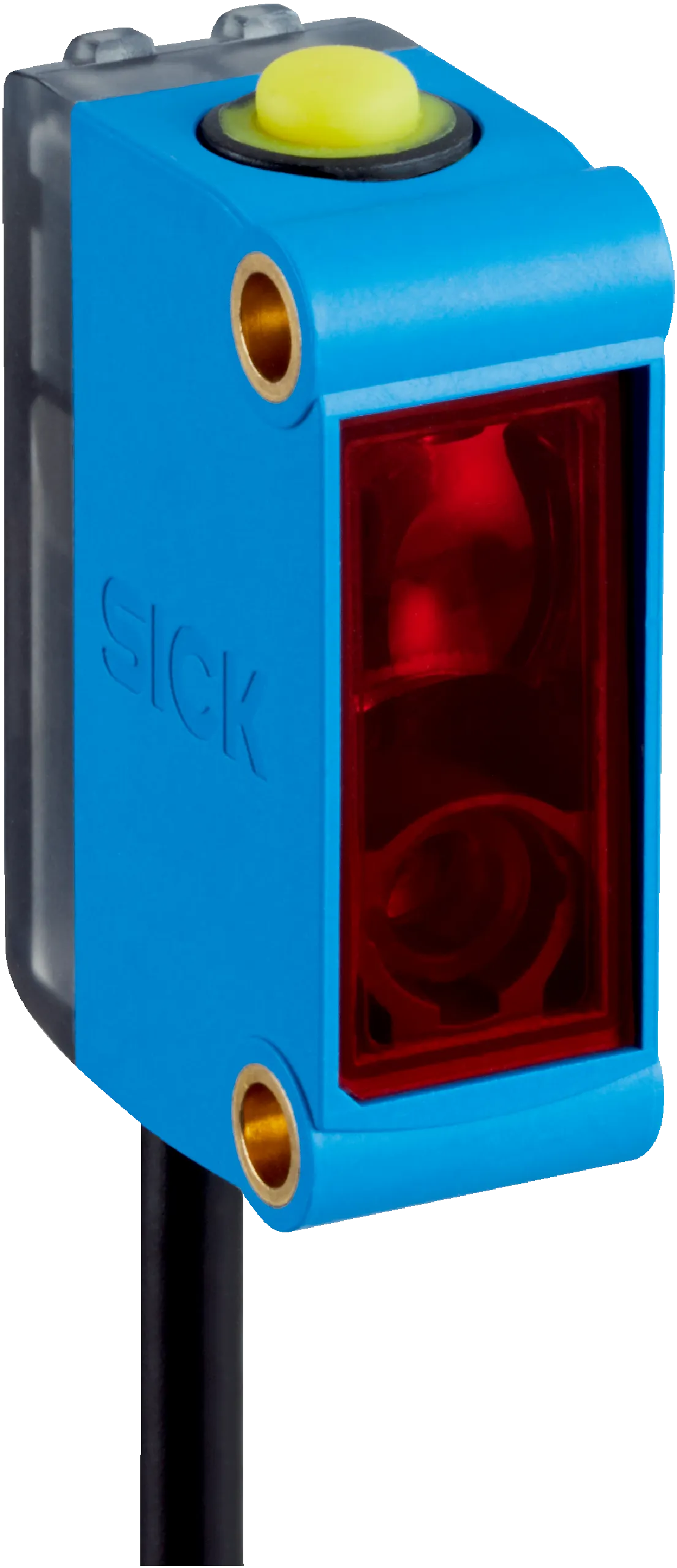

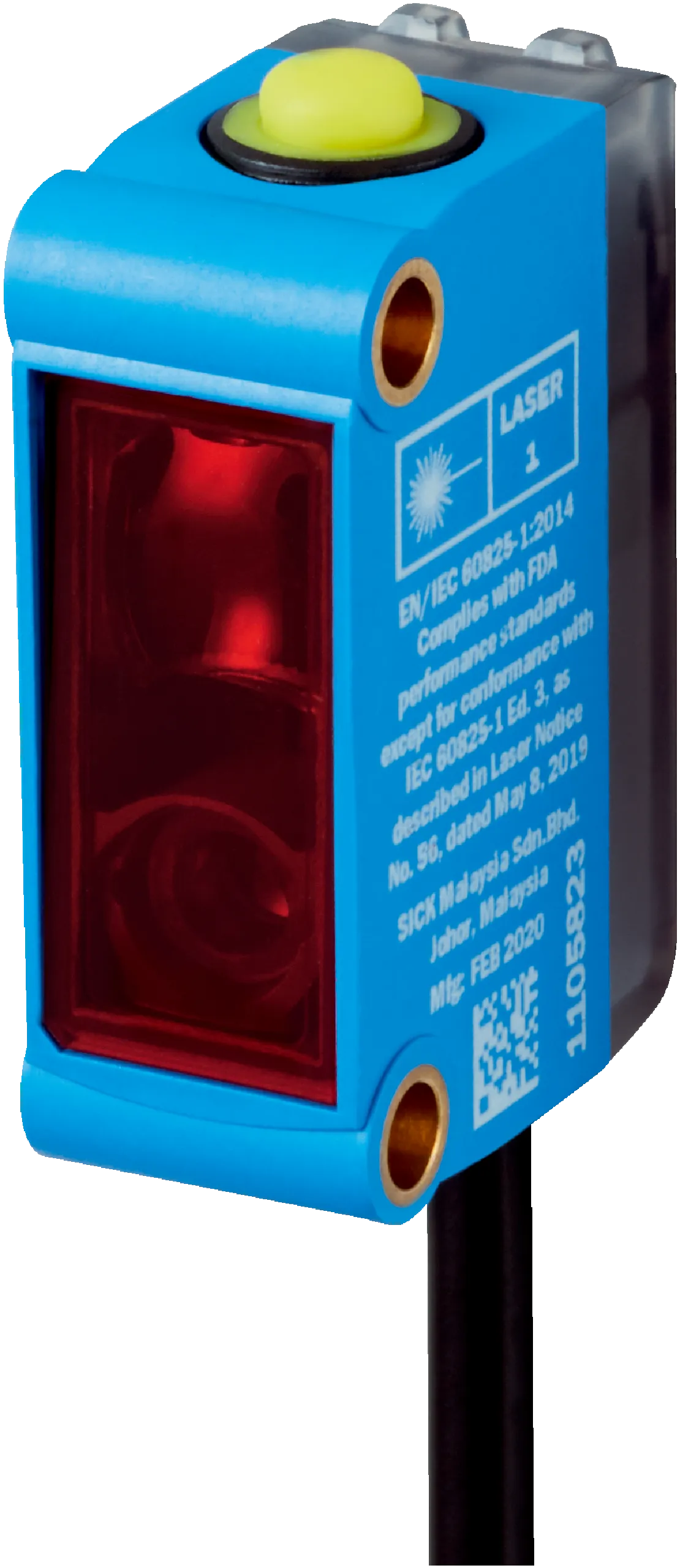

Contrast sensors | KTM | KTM-LP557A2P | Light source: Laser, red | Communication interface: IO-Link | Sensing distance: 250 mm | Switching output: PNP | Light spot size: Ø 1.8 mm (250 mm) | Light spot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Contrast sensors | KTM | KTM-LP557A2P | Light source: Laser, red | Communication interface: IO-Link | Sensing distance: 250 mm | Switching output: PNP | Light spot size: Ø 1.8 mm (250 mm) | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Cable with M12 male connector, 4-pin | Adjustment: Teach-in button, Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark | Housing material: Plastic
Specification
Features
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
|---|---|
| Sensing distance | ⤠250 mm |
| Sensing distance tolerance | ± 30 mm |
| Housing design | Small |
| Light source | Laser, red 1) |
| Laser class | I |
| Wave length | 680Â nm |
| Light emission | Long side of housing |
| Light spot size | ÃÂ 1.8Â mm (250Â mm) |
| Light spot direction | Round |
| Receiving filters | None |
| Max. web speed | 10 m/s 2) |
| Adjustment | Teach-in button, Teach-in button |
| Teach-in mode | 2-point teach-in static/dynamic + proximity to mark |
Interfaces
| IO-Link | â , V1.1 |
|---|---|
| Data transmission rate | 38,4Â kbit/s (COM2) |
| Cycle time | 2.3Â ms |
| Process data length | 16Â Bit |
| Process data structure A | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = switching signal QInt1Bit 3Â ... 5Â = emptyBit 6Â ... 15Â = measuring value |
| Process data structure B | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = switching signal QInt1Bit 3Â ... 15Â = empty |
| Digital output | Q1, Q2 |
| Number | 2 |
Electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 5 Vpp 1) |
| Current consumption | <Â 35Â mAÂ 2) |
| Switching frequency | 1.5 kHz 3) |
| Response time | 333 µs 4) |
| Jitter | 122 µs |
| Accuracy | 0.15Â mm |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV â¤Â 2 V / LOW approx. 0 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mAÂ 5) |
| Retention time (ET) | 250Â ms |
| Time delay | Switch-off delay, 520Â ms (via IO-Link) |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | ABS |
|---|---|
| Display | LED indicator green: power onLED indicator, yellow: Status switching output Q |
| Optics material | PMMA |
| Connection type | Cable with M12 male connector, 4-pin, 0.3Â m |
| Weight | Approx. 24 g |
Ambient data
| Ambient operating temperature | â20 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +70 °C |
| Shock load | According to IECÂ 60068 |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
Connection type/pinouts
| Connection type | Cable with M12 male connector, 4-pin, 0.3Â m |
|---|---|
| BN 1 | + (L+) |
| WH 2 | Q |
| BU 3 | - (M) |
| BK 4 | Q/C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
