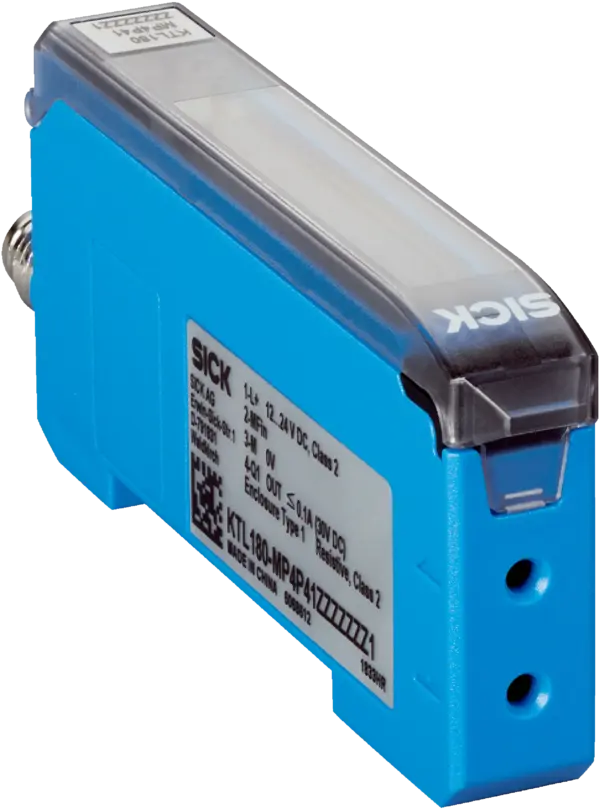

Sick KTL180-MP4P41ZZZZZ
Contrast sensors | KTL180 | KTL180-MP4P41ZZZZZ | Light source: LED, white | Communication interface: – | Device type: Stand-alone | Sensing distance: 30 mm | Switching output: PNP | Connection type De…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Contrast sensors | KTL180 | KTL180-MP4P41ZZZZZ | Light source: LED, white | Communication interface: – | Device type: Stand-alone | Sensing distance: 30 mm | Switching output: PNP | Connection type Detail: Male connector M8, 4-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic | Delivery status: Teach-in dynamic | Housing material: Plastic
Specification
Features
| Special applications | - |
|---|---|
| Device type | Stand-alone |
| Display | Display |
| Display | LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters |
| Dimensions (W x H x D) | 10.5 mm x 33.2 mm x 71.9 mm |
| Sensing range | 0 mm ... 30 mm, Proximity system 1) |
| Sensing distance | ≤ 30 mm 2) |
| Housing design | For fiber-optic |
| Light source | LED, white 3) |
| Angle of dispersion | Approx. 65° 4) |
| Wave length | 400 nm ... 750 nm |
| Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic |
| Delay time | Adjustable |
| Special features | Multi-function input, stand-alone mode |
| Delivery status | Teach-in dynamic |
| Parameter presettings | None |
| MTTFD | 302.3Â years |
Electronics
| Supply voltage | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 10 % 2) |
| Current consumption | ≥ 50 mA (at 24 V) |
| Switching frequency | 31.2Â kHz |
| Response time | 16 µs |
| Jitter | 8 µs |
| Number of switching outputs | 1 |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mAÂ 3) |
| Input, blanking input (AT) | Blanked: UÂ = 6.5Â V ...< Uv: free-running: U < 5.5Â VÂ 4) |
| Input, light/dark (L/D) | Light: U < 6.5 V: dark: U = 5.5 V ... < UV 4) |
| Retention time (ET) | 25Â ms, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedIn-/outputs short-circuit protectedInterference pulse suppressionOutputs overcurrent and short-circuit protected |
Mechanics
| Housing material | VISTAL® |
|---|---|
| Connection type | Male connector M8, 4-pin |
| Weight | 25Â g |
Ambient data
| Ambient operating temperature | –25 °C ... +55 °C |
|---|---|
| Ambient temperature, storage | –40 °C ... +70 °C |
| Shock load | IECÂ 60068-2-27 |
| Enclosure rating | IP50 |
| UL File No. | ENÂ 60947-5-2 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
