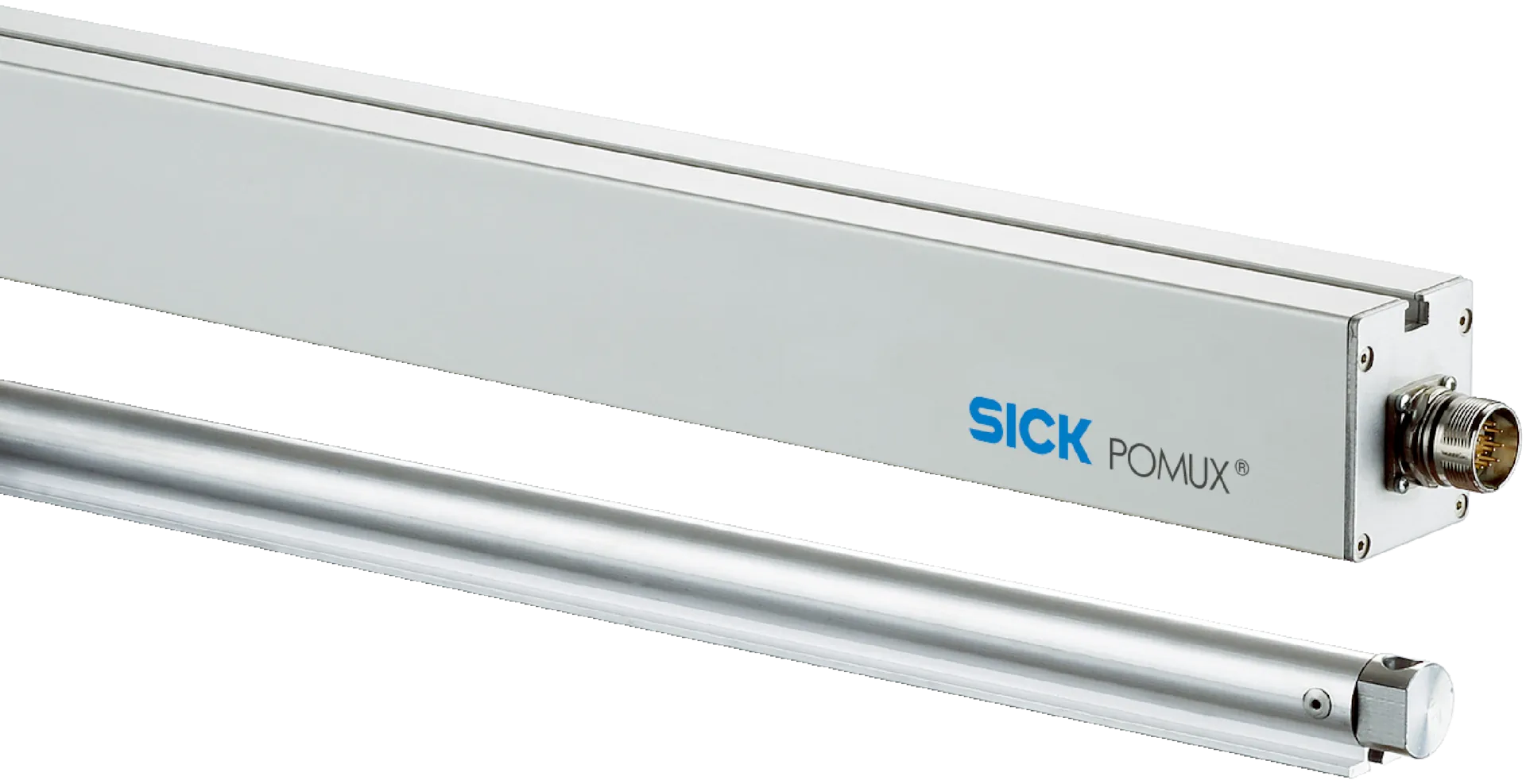

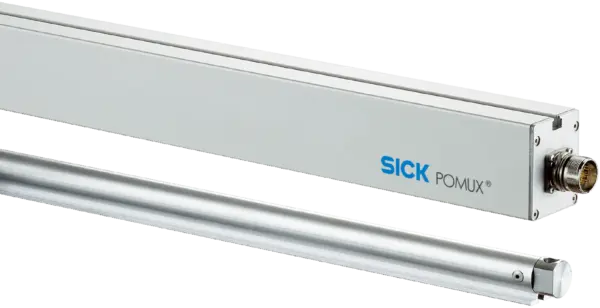

Sick KHK53-AXR00107
Linear encoders | KH53 | KHK53-AXR00107 | System part: Read head | Communication interface: SSI | Measuring range: 0 m … 107 m | Resolution: 0.1 mm | Repeatability: 0.3 mm | Supply voltage: 10 V ……
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Linear encoders | KH53 | KHK53-AXR00107 | System part: Read head | Communication interface: SSI | Measuring range: 0 m … 107 m | Resolution: 0.1 mm | Repeatability: 0.3 mm | Supply voltage: 10 V … 32 V | Connection type: Cable, 12-wire, 1.5 m
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 40Â years (ENÂ ISOÂ 13849)Â 1) |
|---|
Performance
| Measuring range | 0 m ... 107 m |
|---|---|
| Resolution | 0.1Â mm |
| Traversing speed | 6.6 m/s 1) |
| Repeatability | 0.3Â mm |
| Measurement accuracy | ± 1000 + ME (Tu-25 °C) Tk µm 2) |
Interfaces
| Communication interface | SSI |
|---|---|
| Position forming time | +Â 0.8Â ms |
| Interface, digital serial | SSI, 24Â Bit, gray |
| Interface for parametrization | RS-422Default OFFFour wire transmission, asynchrony, full duplexData format: 1 start bit, 8 data bits, 1 stop bit, no parityData protocol: ASCII, Baud rate 9600 RS-422 |
Electronics
| Initialization time | 2Â s |
|---|---|
| Supply voltage | 10Â VÂ ... 32Â V |
| Current consumption | 250Â mA |
| Connection type | Cable, 12-wire, 1.5Â m |
Mechanics
| Weight | 2.7Â kg |
|---|---|
| Length of measuring element | See calculation example |
| Position tolerance | ± 10 mm, see positional tolerances diagram |
| Read head material | AlMgSiPbF28 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-4Â 1) |
|---|---|
| Enclosure rating | IP66 (IECÂ 60529) |
| Operating temperature range | â20 °C ... +60 °C |
| Storage temperature range | â40 °C ... +85 °C |
| Resistance to shocks | 30Â g, 10Â ms (DINÂ ENÂ 60 068-2-27) |
| Resistance to vibration | 10 g, 20 Hz ... 250 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270705 |
|---|---|
| ECLASS 5.1.4 | 27270705 |
| ECLASS 6.0 | 27270705 |
| ECLASS 6.2 | 27270705 |
| ECLASS 7.0 | 27270705 |
| ECLASS 8.0 | 27270705 |
| ECLASS 8.1 | 27270705 |
| ECLASS 9.0 | 27270705 |
| ECLASS 10.0 | 27270705 |
| ECLASS 11.0 | 27270705 |
| ECLASS 12.0 | 27274304 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 41111613 |
