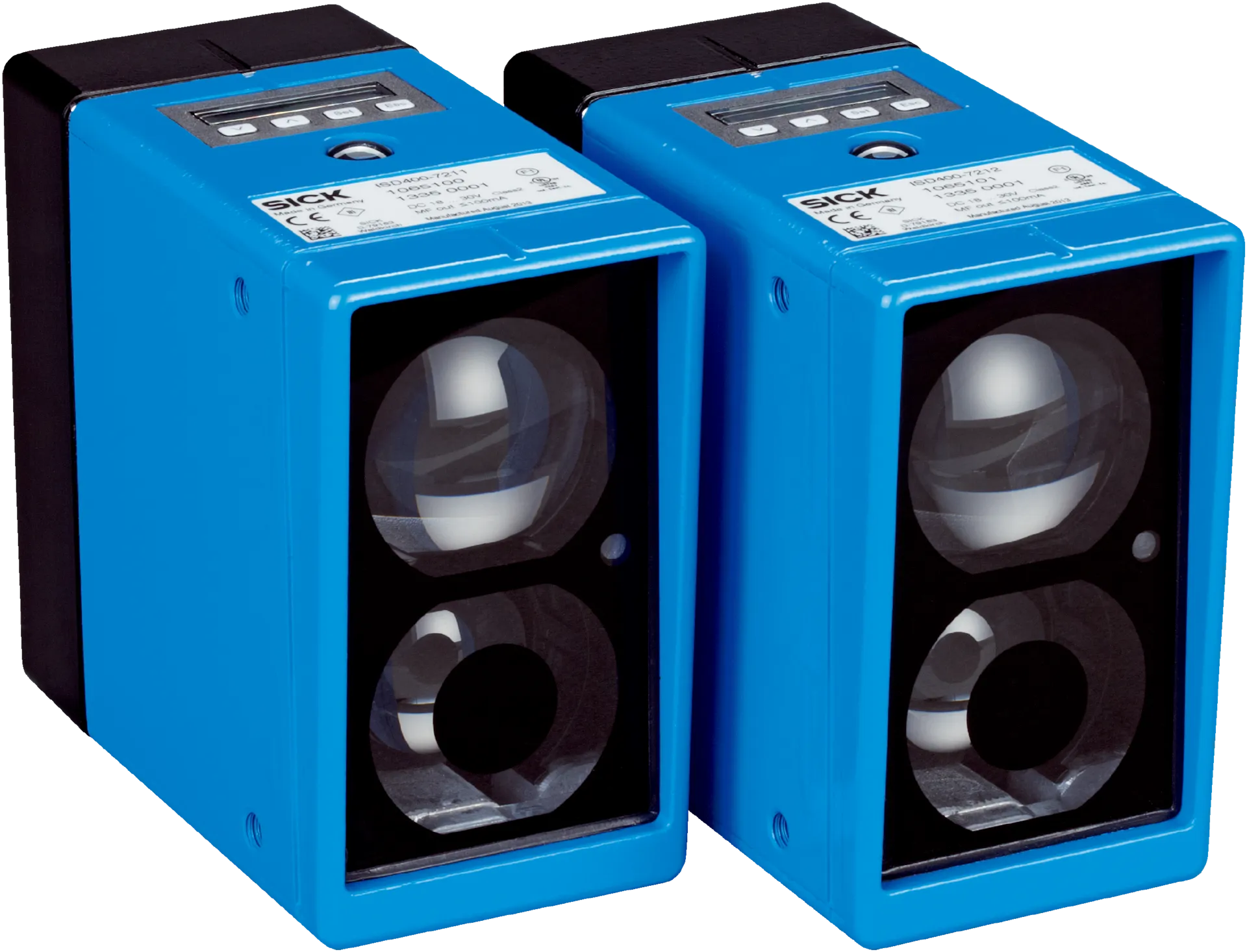

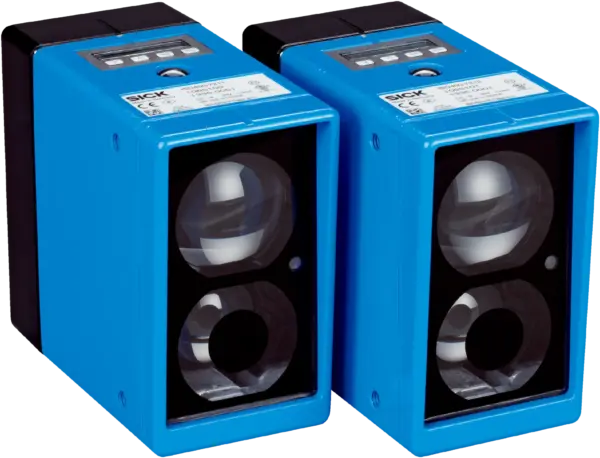

Sick ISD400-7211
Optical data transmission | ISD400 | ISD400-7211 | Communication interface: Ethernet | Transmission range: ≥ 0.2 m | Ambient temperature, operation: –20 °C … +55 °C | Heating: no | Data transmission…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optical data transmission | ISD400 | ISD400-7211 | Communication interface: Ethernet | Transmission range: ≥ 0.2 m | Ambient temperature, operation: –20 °C … +55 °C | Heating: no | Data transmission rate: 100 Mbit/s | Frequency: F1
Specification
Technical specifications
| Accessory group | Optical data transmission |
|---|---|
| Accessory family | ISD400 |
| Weight | Approx. 800 g |
| Housing material | AlSi12 |
| Enclosure rating | IP65 |
| Ambient operating temperature | â20 °C ... +55 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
Mechanics/electronics
| Power consumption | â¤Â 3.6 W 1) |
|---|---|
| Frequency | F1 |
| Protection class | III |
Performance
| Transmission range | ⥠0.2 m |
|---|---|
| Light source | Laser, red (660Â nm) |
| Laser class | 1M (IECÂ 60825-1:2014, ENÂ 60825-1:2014) |
| Typ. light spot size (distance) | 1.75Â m (at 100Â m) |
| Aperture angle | Sender |
Interfaces
| Ethernet | â |
|---|---|
| Data transmission rate | 100Â Mbit/s |
| Digital input | Vs: sender deactivated |
| Number | 1Â 1) |
| Type | PNP |
| Function | Output active for LOW and HIGH level |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2, ENÂ 61000-6-4Â 1) |
|---|---|
| Ambient temperature, operation | â20 °C ... +55 °C |
| Max. rel. humidity (not condensing) | 90Â %, Non-condensing |
General notes
| Note | Setting up a data transmission path requires a pair of devices, where one device has frequency F1 (ISD400-7xx1) and the other device has frequency F2 (ISD400-7xx2). A wide variety of Ethernet protocols can be used in protocol-free transmission (e.g., PROFINET, PROFIsafe, EtherNet/IP, EtherCAT, TCP/IP, etc.). |
|---|
Features
| Weight | Approx. 800 g |
|---|---|
| Housing material | AlSi12 |
| Enclosure rating | IP65 |
| Ambient operating temperature | â20 °C +55 °C |
| Permissible relative humidity | 90Â % Non-condensing |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 19039001 |
|---|---|
| ECLASS 5.1.4 | 19039001 |
| ECLASS 6.0 | 19179090 |
| ECLASS 6.2 | 19179090 |
| ECLASS 7.0 | 19179090 |
| ECLASS 8.0 | 19179090 |
| ECLASS 8.1 | 19179090 |
| ECLASS 9.0 | 19179090 |
| ETIM 5.0 | EC000515 |
| ETIM 6.0 | EC000515 |
| UNSPSC 16.0901 | 43201404 |
