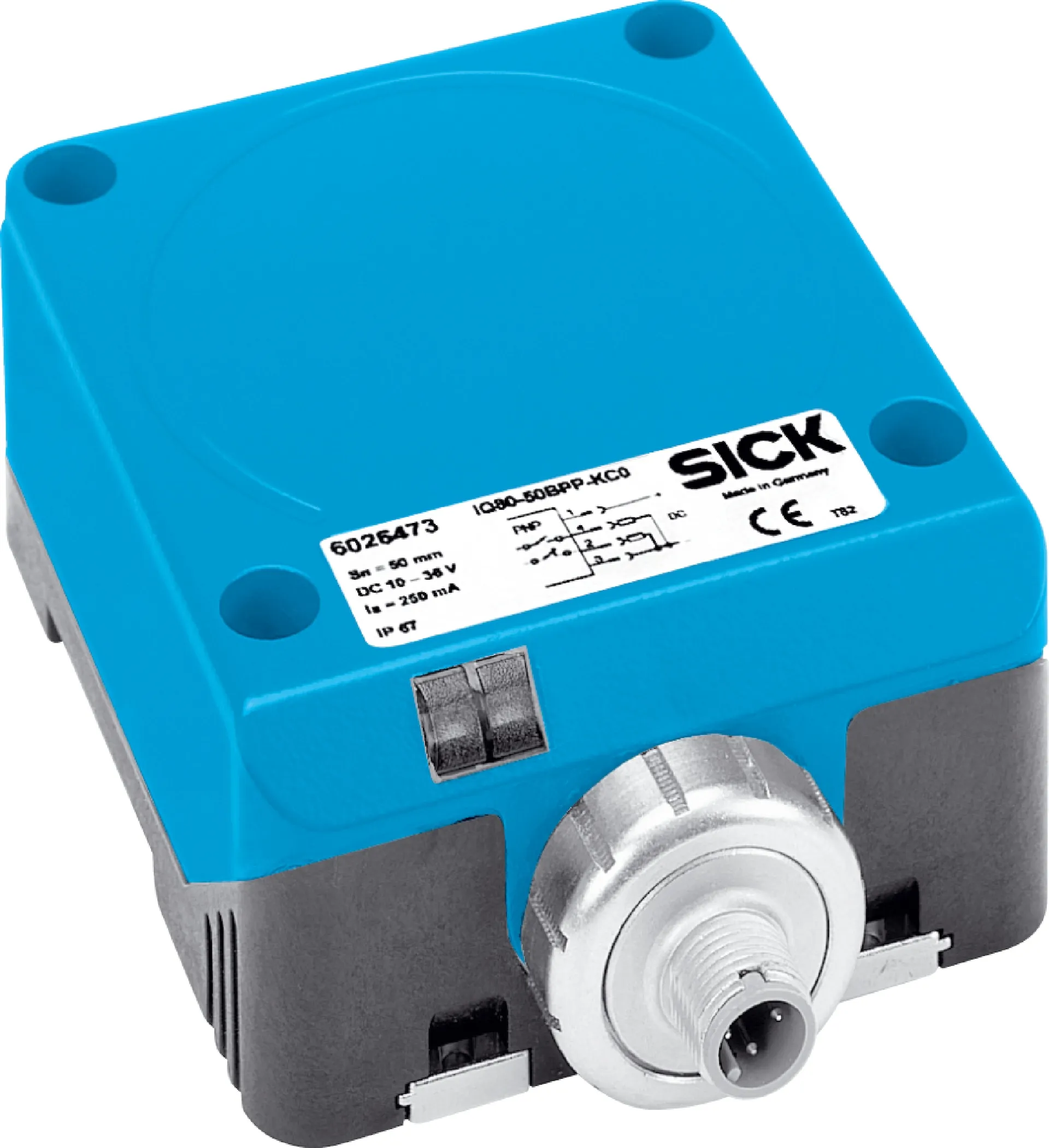

Sick IQ80-50BPP-KC0
Inductive proximity sensors | IQL | IQ80-50BPP-KC0 | Sensing range Sn: 50 mm | Installation type: Flush, non-flush, overflush | Cuboid shape (W x H x D): 80 mm x 92 mm x 40 mm | Electrical wiring: DC…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IQL | IQ80-50BPP-KC0 | Sensing range Sn: 50 mm | Installation type: Flush, non-flush, overflush | Cuboid shape (W x H x D): 80 mm x 92 mm x 40 mm | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin
Specification
Features
| Housing | Rectangular |
|---|---|
| Housing | Standard design |
| Dimensions (W x H x D) | 80 mm x 92 mm x 40 mm |
| Sensing range Sn | 50Â mm |
| Safe sensing range Sa | 40.5Â mm |
| Installation type | FlushNon-flushOverflush |
| Switching frequency | 70Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67Â 1) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 36Â VÂ DC |
|---|---|
| Voltage drop | â¤Â 2.5 V 1) |
| Hysteresis | 3Â %Â ... 20Â % |
| Temperature drift (of Sr) | ± 15 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 250 mA |
| Short-circuit protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | â25 °C ... +70 °C |
| Housing material | Zinc diecast, GD Zn |
| Sensing face material | Plastic, PPE |
Safety-related parameters
| MTTFD | 1,859Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.85 |
| Aluminum (Al) | Approx. 0.46 |
| Copper (Cu) | Approx. 0.38 |
| Brass (Br) | Approx. 0.48 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 0Â mm |
| B | 80Â mm |
| C | 80Â mm |
| D | 150Â mm |
| E | 0Â mm |
| F | 400Â mm |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
