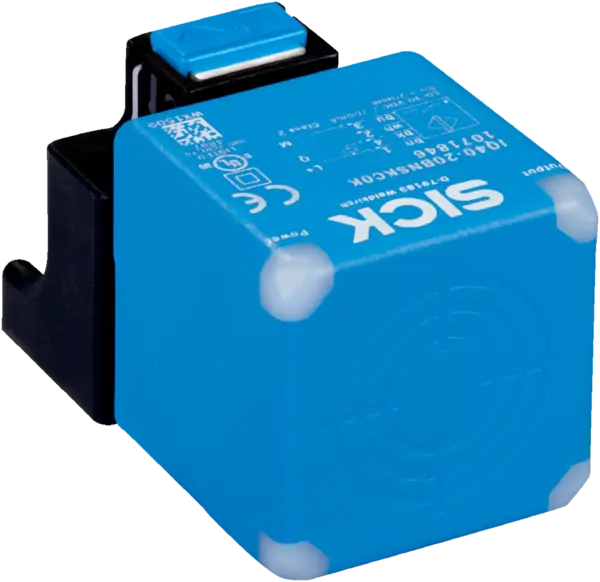

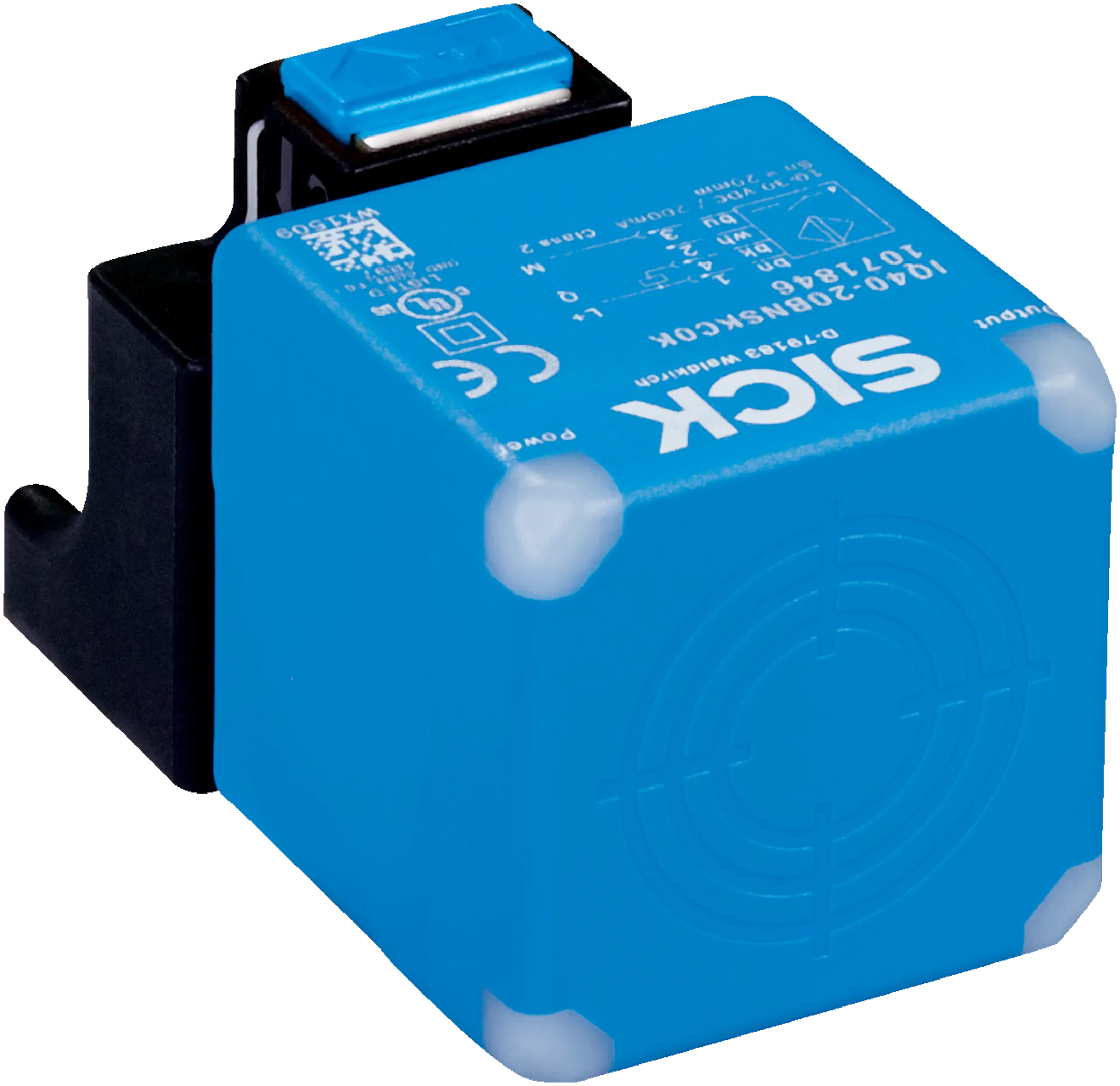

Sick IQ40-40NDSKC0K
Inductive proximity sensors | IQG | IQ40-40NDSKC0K | Special applications: Difficult application conditions | Sensing range Sn: 40 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 40 mm x…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IQG | IQ40-40NDSKC0K | Special applications: Difficult application conditions | Sensing range Sn: 40 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 40 mm x 40 mm x 66 mm | Electrical wiring: DC 2-wire | Output function: NO | Connection type: Male connector M12, 2-pin
Specification
Features
| Housing | Rectangular |
|---|---|
| Housing | Short-body |
| Dimensions (W x H x D) | 40 mm x 40 mm x 66 mm |
| Sensing range Sn | 40Â mm |
| Safe sensing range Sa | 32.4Â mm |
| Installation type | Non-flush |
| Switching frequency | 150Â Hz |
| Connection type | Male connector M12, 2-pin |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67, IP68, IP69K |
| Special applications | Difficult application conditions |
| Items supplied | Push-lock mounting system (1x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 Vpp 1) |
| Voltage drop | â¤Â 4 V 2)â¤Â 4.5 V 3) |
| Time delay before availability | <Â 200Â ms |
| Hysteresis | 1Â %Â ... 15Â %Â 4) |
| Reproducibility | â¤Â 2 % 5) |
| Temperature drift (of Sr) | ± 20 % |
| Continuous current Ia | â¤Â 100 mA |
| Off-state current | â¤Â 0.8 mA |
| Minimum load current | â¥Â 3 mA |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | â25 °C ... +85 °C |
| Ambient temperature, storage | â40 °C ... +85 °C |
| Housing material | Plastic, PA 66 |
| Sensing face material | Plastic, PA 66 |
| Tightening torque, max. | 1.8Â Nm |
| Protection class | IIÂ 6) |
| UL File No. | E348498 |
Safety-related parameters
| MTTFD | 1,125Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.3 |
| Copper (Cu) | Approx. 0.3 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 42Â mm |
| B | 150Â mm |
| C | 40Â mm |
| D | 120Â mm |
| E | 40Â mm |
| F | 150Â mm |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
