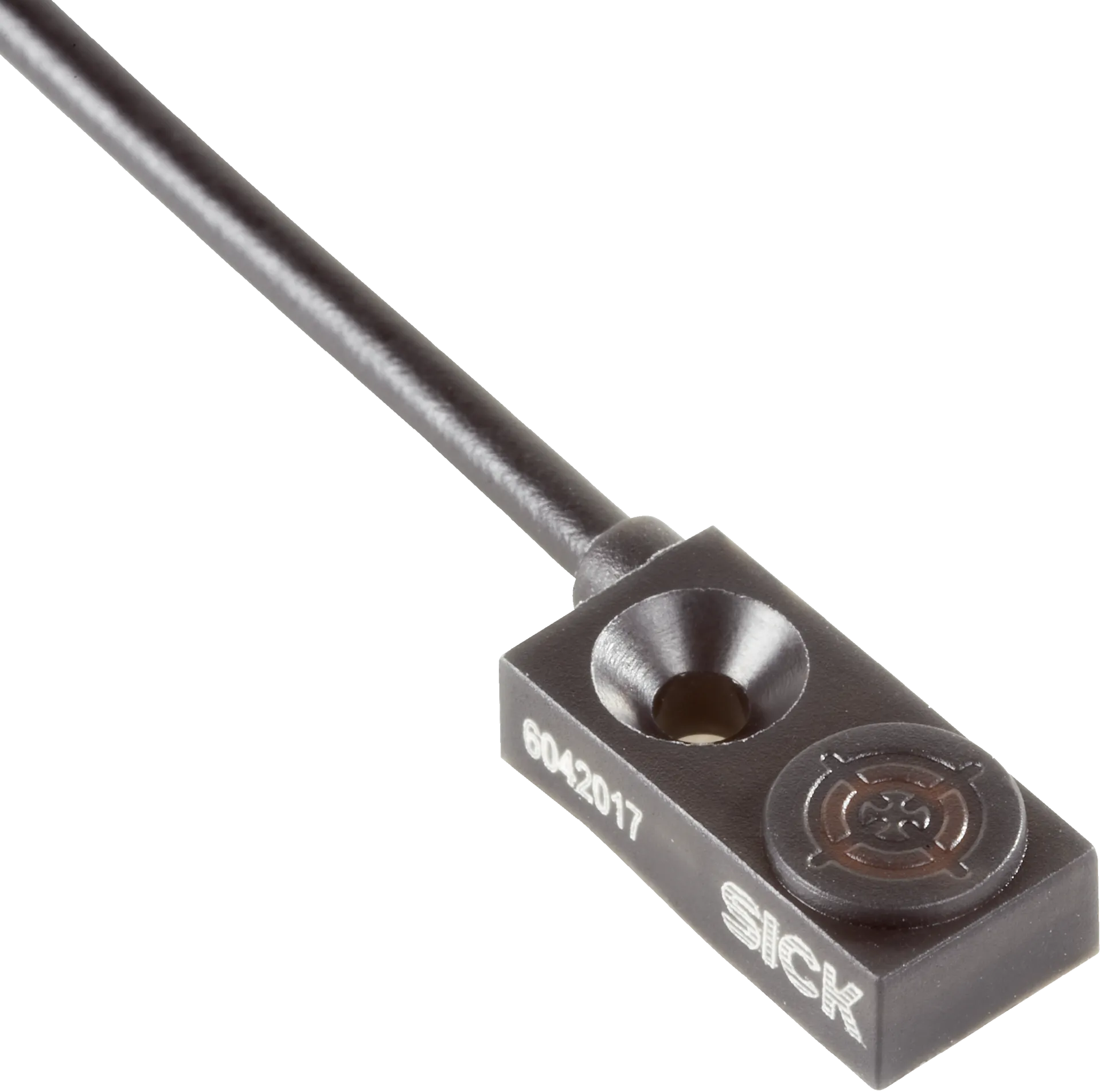

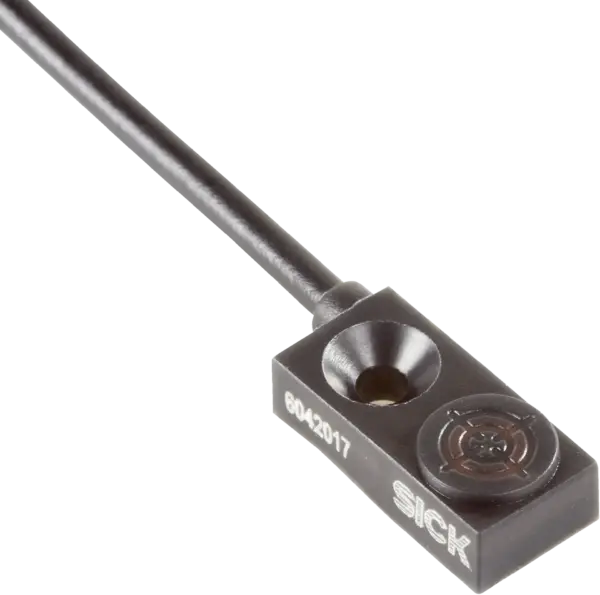

Sick IQ04-1B5PSKRDS
Inductive proximity sensors | IQM | IQ04-1B5PSKRDS | Sensing range Sn: 1.5 mm | Installation type: Flush | Cuboid shape (W x H x D): 8 mm x 16 mm x 4 mm | Electrical wiring: DC 3-wire | Switching outp…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IQM | IQ04-1B5PSKRDS | Sensing range Sn: 1.5 mm | Installation type: Flush | Cuboid shape (W x H x D): 8 mm x 16 mm x 4 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.3 m
Specification
Features
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 8 mm x 16 mm x 4 mm |
| Sensing range Sn | 1.5Â mm |
| Safe sensing range Sa | 1.215Â mm |
| Installation type | Flush |
| Switching frequency | 600Â Hz |
| Connection type | Cable with plug M8, 3-pin, with knurled nut, 0.3Â m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 1) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 % 1) |
| Voltage drop | <Â 1.5Â VÂ 2) |
| Time delay before availability | â¤Â 10 ms |
| Hysteresis | 1Â %Â ... 15Â % |
| Reproducibility | ± 1 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 100 mA |
| Cable material | PVC |
| Conductor size | 0.09 mm² |
| Cable diameter | ÃÂ 2.5Â mm |
| Short-circuit protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | â25 °C ... +70 °C |
| Housing material | Plastic, PA6 |
| Sensing face material | Plastic, PA6 |
| Tightening torque, max. | â¤Â 0.06 Nm |
Safety-related parameters
| MTTFD | 1,328Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.4 |
| Copper (Cu) | Approx. 0.3 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 0Â mm |
| B | 16Â mm |
| C | 8Â mm |
| D | 4.5Â mm |
| E | 0Â mm |
| F | 24Â mm |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
