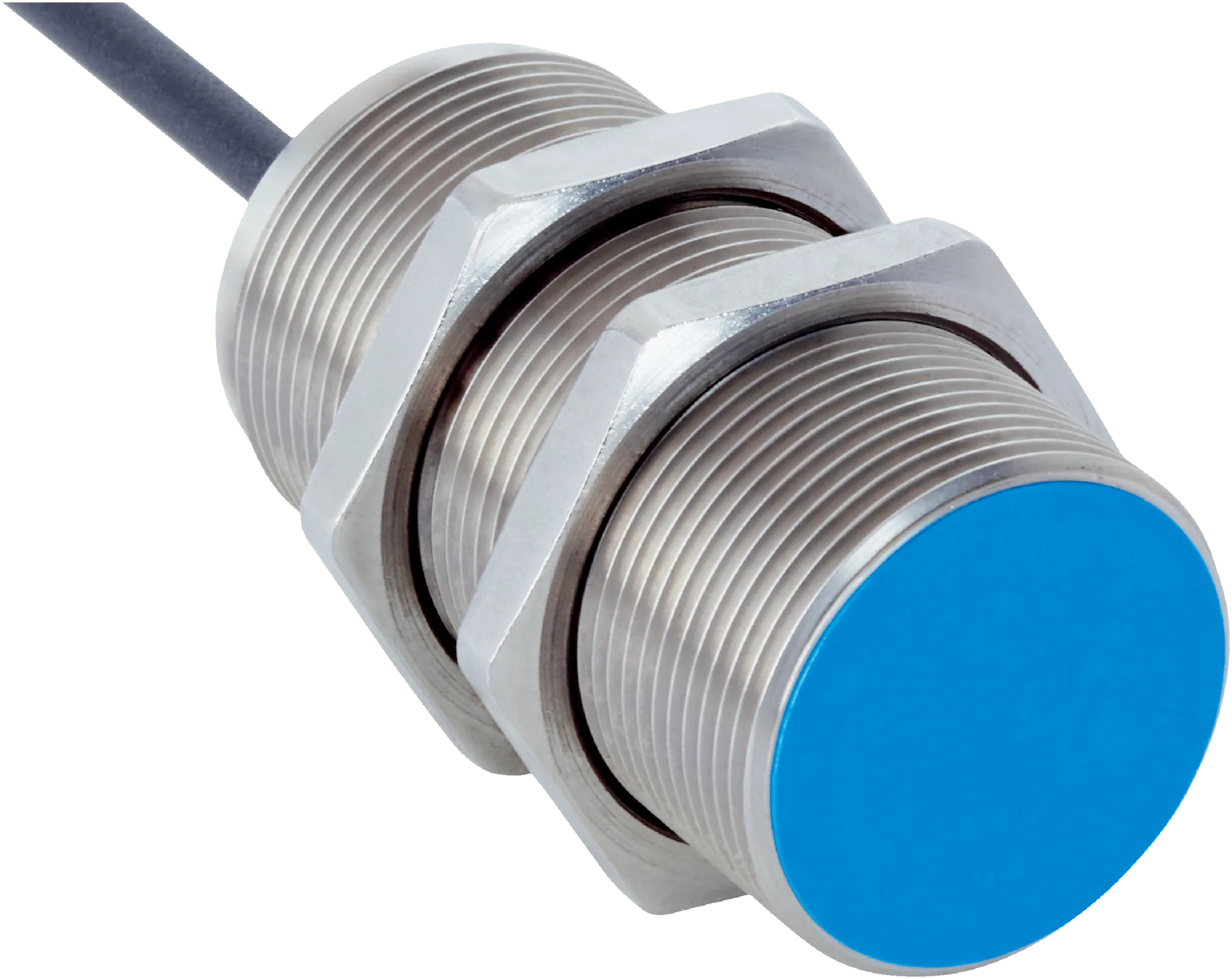

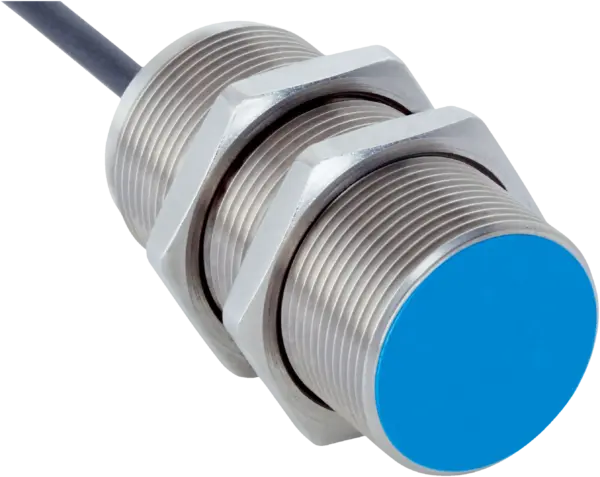

Sick IMX30-25BPSZU2S
Inductive proximity sensors | IMX | IMX30-25BPSZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 25 mm | Installation type: Quasi-flush | E…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMX | IMX30-25BPSZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 25 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Standard design |
| Thread size | M30Â x 1.5 |
| Diameter | ÃÂ 30Â mm |
| Sensing range Sn | 25Â mm |
| Safe sensing range Sa | 20.25Â mm |
| Installation type | Quasi-flush |
| Switching frequency | 25Â Hz |
| Connection type | Cable, 3-wire, 2Â m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68Â 1) |
| Special features | Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator |
| Special applications | Zones with coolants and lubricants |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 % |
| Voltage drop | â¤Â 2 V 1) |
| Time delay before availability | â¤Â 150 ms |
| Hysteresis | 5Â %Â ... 15Â % |
| Reproducibility | â¤Â 7 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 200 mA |
| No load current | â¤Â 50 mA |
| Cable material | PUR |
| Conductor size | 0.34 mm² |
| Cable diameter | ÃÂ 4.5Â mm |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| LED yellow | Output state (on/off) |
| LED green | Stable on/off state |
| Ambient operating temperature | â25 °C ... +75 °C |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, LCP |
| Housing length | 60.2Â mm |
| Thread length | 55.7Â mm |
| Tightening torque, max. | â¤Â 70 Nm |
| Protection class | III |
| UL File No. | E181493 |
| Service interface | IO-Link as a service interface. The interface can only be used by SICK Service. |
Safety-related parameters
| MTTFD | 411Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | 1 |
| Aluminum (Al) | 0.3 |
| Copper (Cu) | 0.2 |
| Brass (Br) | 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 35Â mm |
| B | 30Â mm |
| C | 30Â mm |
| D | 75Â mm |
| E | 10Â mm |
| F | 75Â mm |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
