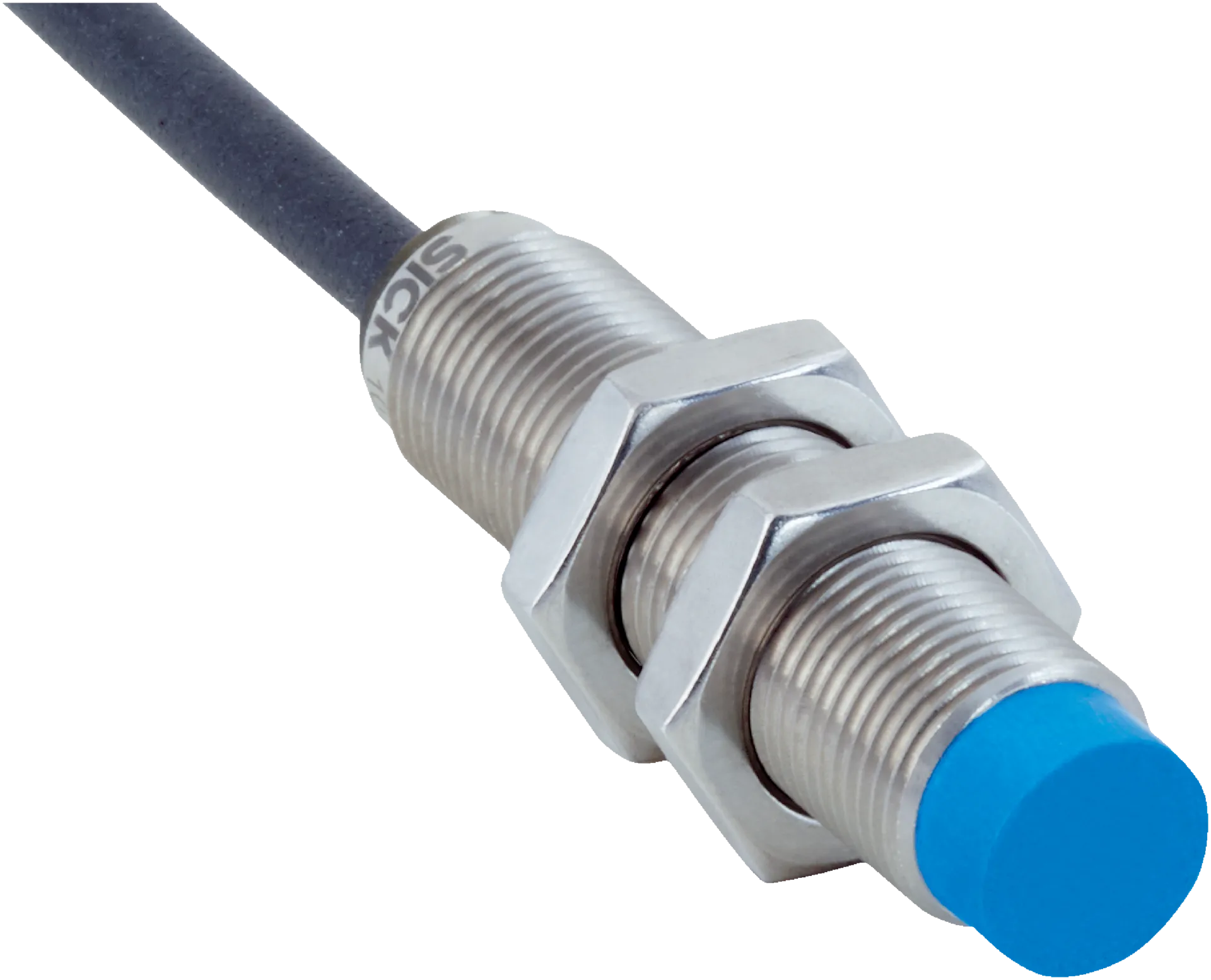

Sick IMS12-08NNOVU2S - Image 1

Fast delivery within 72 Hours

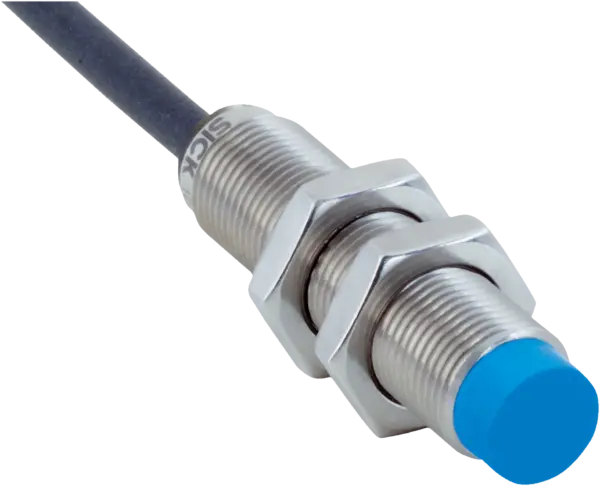

Sick IMS12-08NNOVU2S

Inductive proximity sensors | IMS | IMS12-08NNOVU2S | Special applications: Mobile machines, Zones with coolants and lubricants, Difficult application conditions | Special features: Resistant against…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Inductive proximity sensors | IMS | IMS12-08NNOVU2S | Special applications: Mobile machines, Zones with coolants and lubricants, Difficult application conditions | Special features: Resistant against coolant lubricants, Temperature resistance

Specification

Features

HousingMetric
HousingStandard design
Thread sizeM12Â x 1
DiameterØ 12 mm
Sensing range Sn8Â mm
Safe sensing range Sa6.48Â mm
Installation typeNon-flush
Switching frequency2,000Â Hz
Connection typeCable, 3-wire, 2Â m
Switching outputNPN
Switching output detailNPN
Output functionNC
Electrical wiringDC 3-wire
Enclosure ratingIP68Â 1)IP69KÂ 2)
Special featuresResistant against coolant lubricants, Temperature resistance
Special applicationsMobile machines, Zones with coolants and lubricants, Difficult application conditions
Items suppliedMounting nut, brass, nickel-plated (2x)

Mechanics/electronics

Supply voltage7.2Â VÂ DCÂ ... 60Â VÂ DC
Ripple≤ 10 %
Voltage drop≤ 2.5 V 1)
Time delay before availability100Â ms
Hysteresis3Â %Â ... 20Â %
Reproducibility≤ 2 % 2)
Temperature drift (of Sr)± 10 %
EMCEmitted interference and interference immunity in accordance with Motor Insurance Directive ECE-R10 Rev. 5: E1-Type approvalInterference immunity in accordance with DINÂ ISOÂ 11452-2: 100Â V/mAM vertical 20Â MHz - 800Â MHz; AM horizontal 200Â MHz - 800Â MHz; PM vertical/horizontal 800Â MHz - 2.7Â GHzConducted disturbances in accordance with ISOÂ 7637-2 (pulse/severity/failure criterion 12Â V/failure criterion 24Â V): 1/IV/C/C, 2a/IV/A/A, 2b/IV/C/C, 3a/IV/A/A, 3b/IV/A/A, 4/IV/C/A, 5a/IV/B/B, 5b/IV/B/BENÂ 61000-4-2 ESD: 4Â kV CDÂ /Â 8Â kV ADENÂ 61000-4-3Â HF radiated: 10Â V/mENÂ 61000-4-4Â burst: 2Â kVENÂ 61000-4-5 surge: 0,5Â kV L-to-L, Ri: 2Â OhmENÂ 61000-4-6 HF wire-bound: 10Â V
Environmental testQuick temperature change EN 60068-2-14, Na: TA = –25 °C, TB = 75 °C, t1 = 40 min, t2 = < 10 s, 300 cycles, Delta Sr ≤ 10%
Corrosion testSalt spray test ENÂ 60068-2-52: severity 5, 4Â cycles
Continuous current Ia≤ 200 mA 3)
No load current≤ 10 mA
Cable materialPUR
Conductor size0.5 mm²
Cable diameterØ 5 mm
Short-circuit protection✔
Power-up pulse protection✔
Shock and vibration resistanceVibration resistance EN 60068-2-6 Fc: 25 g peak (10 Hz ... 2,000 Hz) / –20 °C ... +50 °CShock resistance EN 60068-2-27 Ea: 100 g 11 ms; 3 shocks in every direction of the 3 coordinate axes / –40 °C ... +85 °CContinuous shock resistance EN 60068-2-29 Eb: 40 g 3 ms rise, 7 ms fall / 5,000 shocks in every direction of the 3 coordinate axes / -20 °C ... +50 °CBroadband noise EN 60068-2-64: 15 g rms (5 Hz ... 2,000 Hz) / 8 hours in every direction of the 3 coordinate axes / –40 °C ... +85 °C
Ambient operating temperature–40 °C ... +100 °C
Housing materialStainless steel V2A, DINÂ 1.4305Â / AISI 303
Sensing face materialPlastic, LCP
Housing length56Â mm
Thread length46Â mm
Tightening torque, max.Typ. 20 Nm
Protection classIII
UL File No.E181493

Safety-related parameters

MTTFD1,196Â years
DCavg0Â %

Reduction factors

NoteThe values are reference values which may vary
Stainless steel (V2A, 304)Approx. 0.67
Aluminum (Al)Approx. 0.42
Copper (Cu)Approx. 0.35
Brass (Br)Approx. 0.42

Installation note

RemarkAssociated graphic see "Installation"
A12Â mm
B24Â mm
C12Â mm
D24Â mm
E16Â mm
F64Â mm

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
CCC certificate✔
cULus certificate✔
ECE test certificate✔

Classifications

ECLASS 5.027270101
ECLASS 5.1.427270101
ECLASS 6.027270101
ECLASS 6.227270101
ECLASS 7.027270101
ECLASS 8.027270101
ECLASS 8.127270101
ECLASS 9.027270101
ECLASS 10.027270101
ECLASS 11.027270101
ECLASS 12.027274001
ETIM 5.0EC002714
ETIM 6.0EC002714
ETIM 7.0EC002714
ETIM 8.0EC002714
UNSPSC 16.090139122230
