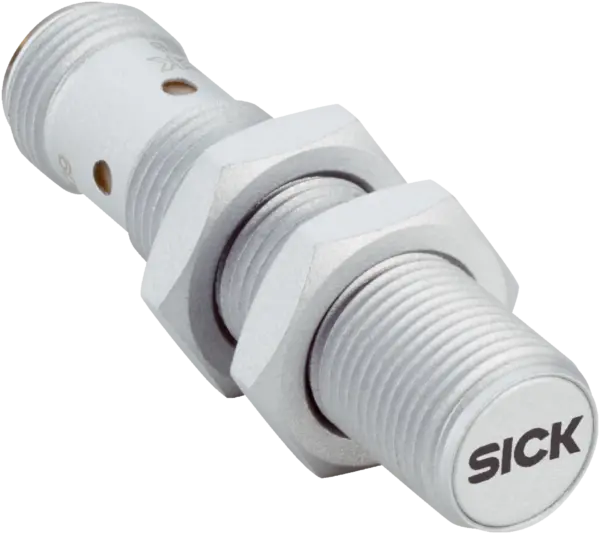

Sick IMR12-04BPSTC0S
Inductive proximity sensors | IMR | IMR12-04BPSTC0S | Housing: Standard design | Special applications: Welding range, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Flu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMR | IMR12-04BPSTC0S | Housing: Standard design | Special applications: Welding range, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Reduction factor 1, Magnetic-field-resistant
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Standard design |
| Thread size | M12Â x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4Â mm |
| Safe sensing range Sa | 3.2Â mm |
| Installation type | Flush |
| Switching frequency | 2,000Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 |
| Special features | Reduction factor 1, Magnetic-field-resistant |
| Special applications | Welding range, Difficult application conditions |
| Items supplied | Mounting nut, brass, PTFE coating (2x)Washer, brass, PTFE coating, with locking teeth (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 1.8 V 1) |
| Hysteresis | 3Â %Â ... 15Â % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of Sr) | ≤ ± 10 % ≤ ± 15 % 4) |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 15 mA |
| Off-state current | ≤ 0.1 mA |
| Short-circuit protection | ✔ |
| Magnetic field strength | ≤ 100 mT |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –30 °C ... +85 °C |
| Housing material | PTFE coating, brass |
| Sensing face material | Plastic, PTFE coating |
| Housing length | 52Â mm |
| Thread length | 36Â mm |
| Tightening torque, max. | Typ. 7 Nm |
| Protection class | IIÂ 5) |
| UL File No. | E191603 |
Safety-related parameters
| MTTFD | 139Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Reduction factor | Reduction factor 1 |
| Stainless steel (V2A, 304) | 1 |
| Aluminum (Al) | 1 |
| Copper (Cu) | 1 |
| Brass (Br) | 1 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 12Â mm |
| B | 12Â mm |
| C | 12Â mm |
| D | 12Â mm |
| E | 0Â mm |
| F | 24Â mm |
| G | 36Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
