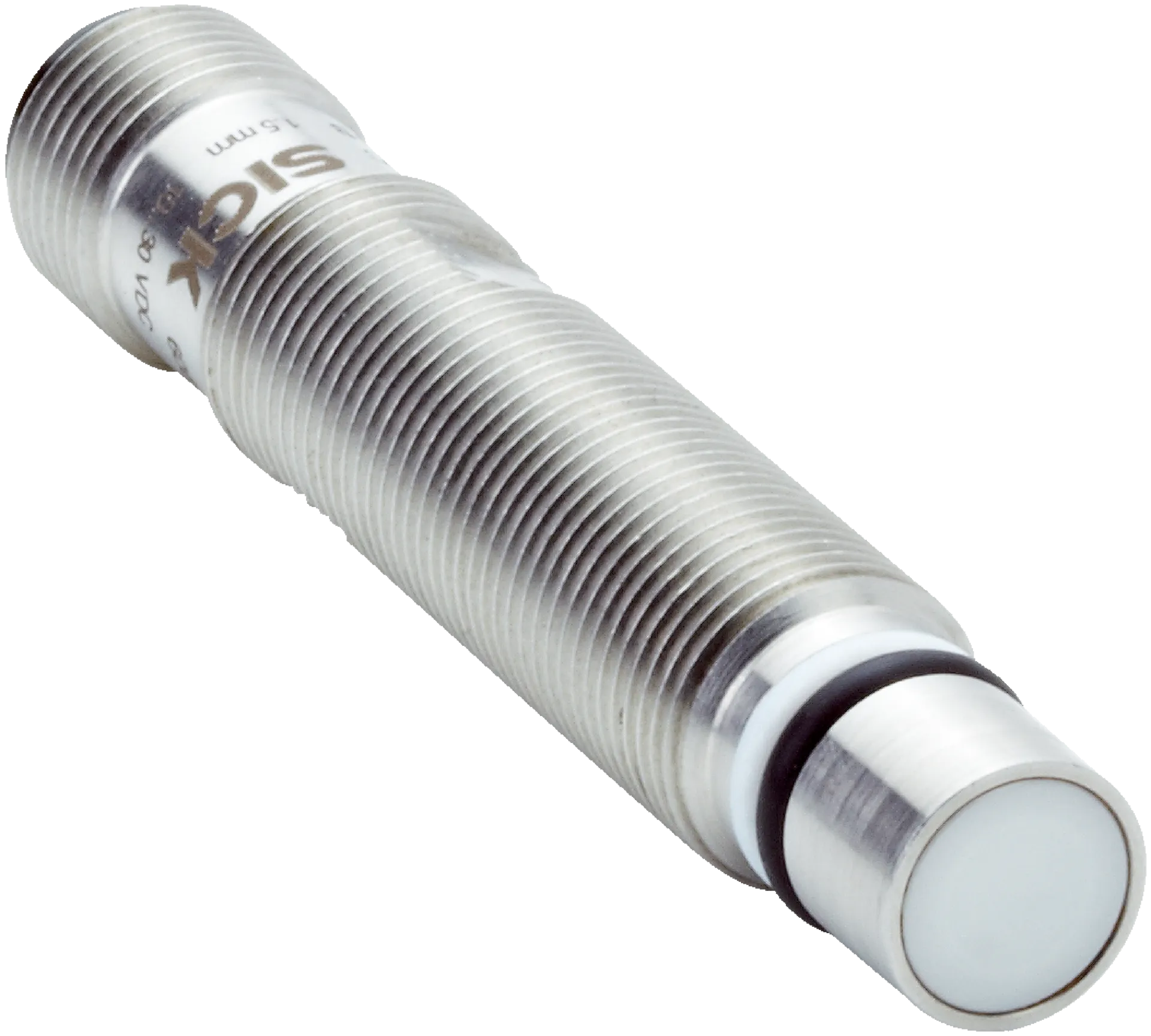

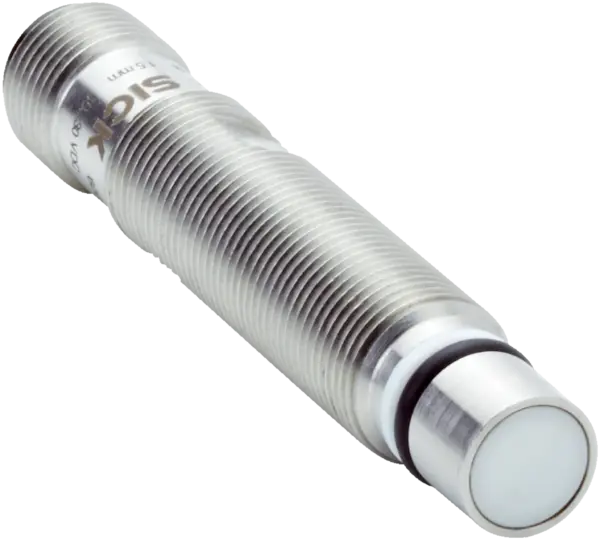

Sick IMP12-1B5PSVC0C
Inductive proximity sensors | IMP | IMP12-1B5PSVC0C | Special applications: Hydraulic application | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching outpu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMP | IMP12-1B5PSVC0C | Special applications: Hydraulic application | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: High pressure resistant
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M12Â x 1 |
| Diameter | Ø 12 mm |
| Pressure resistance | ≤ 500 bar |
| Sensing range Sn | 1.5Â mm |
| Safe sensing range Sa | 1.2Â mm |
| Installation type | Flush |
| Switching frequency | 600Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68Â 1) |
| Special features | High pressure resistant |
| Special applications | Hydraulic application |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 20 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 50 ms |
| Hysteresis | 1Â %Â ... 15Â %Â 3) |
| Reproducibility | ≤ 7 % 4) 5) |
| Temperature drift (of Sr) | ≤ 15 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Vacuum resistance | 10-8 Torr 6) |
| Large sealing ring | 5.3 mm x 2.4 mm |
| Size support ring | 10 mm x 5.9 mm x 1 mm |
| Short-circuit protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Sensing face material | Ceramics, ZrO2 |
| Sealing ring material | FPM |
| Housing length | 69Â mm |
| Thread length | 38Â mm |
| Tightening torque, max. | ≤ 40 Nm |
Safety-related parameters
| MTTFD | 171Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.75 |
| Aluminum (Al) | Approx. 0.2 |
| Copper (Cu) | Approx. 0.12 |
| Brass (Br) | Approx. 0.34 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 8Â mm |
| C | 12Â mm |
| D | 6Â mm |
| F | 12Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
