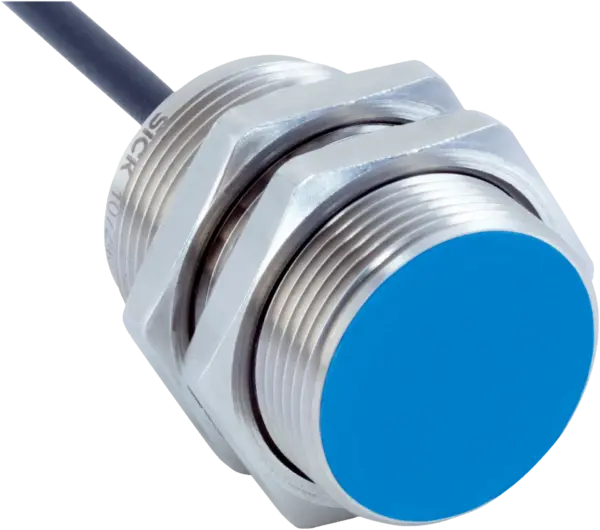

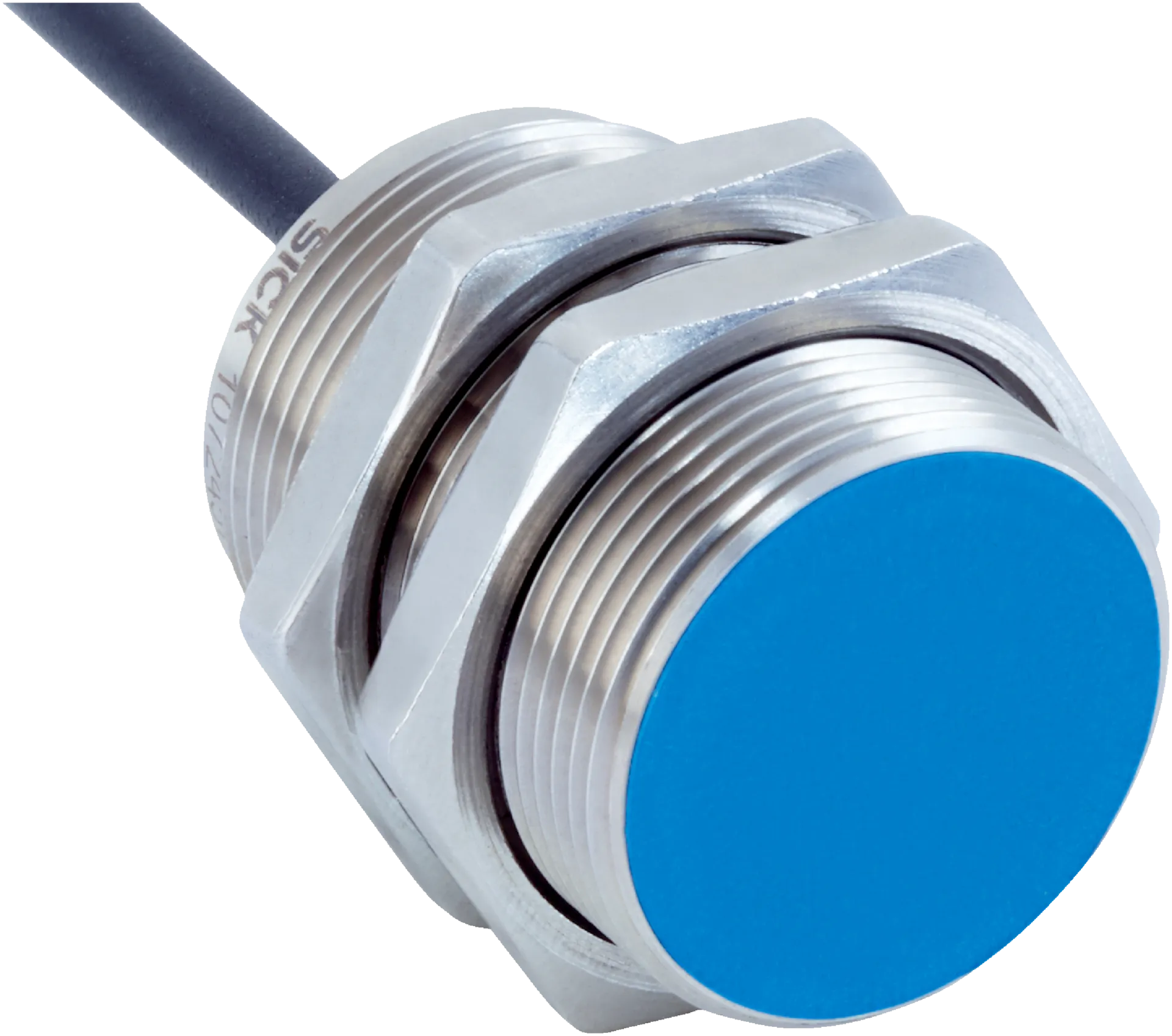

Sick IMG30-15BPSZU2K
Inductive proximity sensors | IMG | IMG30-15BPSZU2K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMG | IMG30-15BPSZU2K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 15 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Resistant against coolant lubricants, Temperature resistance
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Short-body |
| Thread size | M30Â x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range Sn | 15Â mm |
| Safe sensing range Sa | 12.15Â mm |
| Installation type | Flush |
| Switching frequency | 500Â Hz |
| Connection type | Cable, 3-wire, 2Â m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 1)IP68Â 1)IP69KÂ 2) |
| Special features | Resistant against coolant lubricants, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 3Â %Â ... 20Â % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Environmental test | Quick temperature change EN 60068-2-14, Na: TA = –25 °C, TB = 75 °C, t1 = 40 min, t2 = < 10 s, 300 cycles |
| Corrosion test | Salt spray test ENÂ 60068-2-52: severity 5, 4Â cycles |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Cable material | PUR |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.9 mm |
| Bending radius | With fixed installation >Â 5Â x cable diameterFor flexible use >Â 10Â x cable diameter |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | Vibration resistance acc. to EN 60068-2-6 Fc: 60 g peak (10 Hz ... 2,000 Hz)Long-term shock resistance acc. to EN 60068-2-27 Ea: 100 g 2 ms sinusoidal; 500 shocks in each direction of the 3 coordinate axesBroadband noise acc. to EN 60068-2-64: 15 g rms (5 Hz ... 2,000 Hz) / 8 hours in each direction of the 3 coordinate axes |
| LED yellow | Switching statusPermanently on: Switching output active |
| Ambient operating temperature | –40 °C ... +85 °C |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, LCP |
| Housing length | 40.7Â mm |
| Thread length | 36.2Â mm |
| Tightening torque, max. | ≤ 70 Nm |
| Protection class | III |
| UL File No. | E181493 |
Safety-related parameters
| MTTFD | 1,820Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.72 |
| Aluminum (Al) | Approx. 0.37 |
| Copper (Cu) | Approx. 0.29 |
| Brass (Br) | Approx. 0.39 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 40Â mm |
| C | 30Â mm |
| D | 45Â mm |
| F | 120Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
