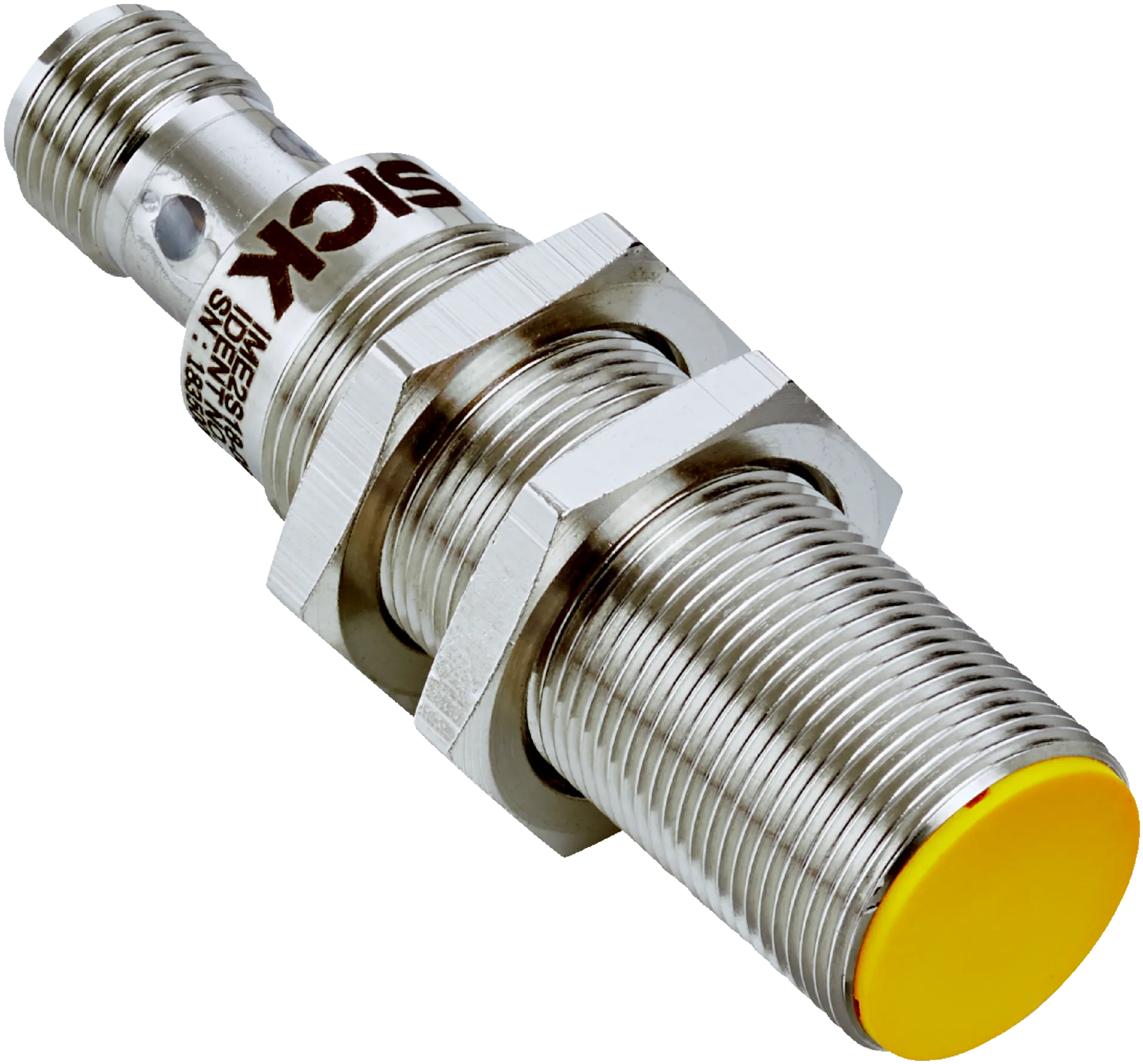

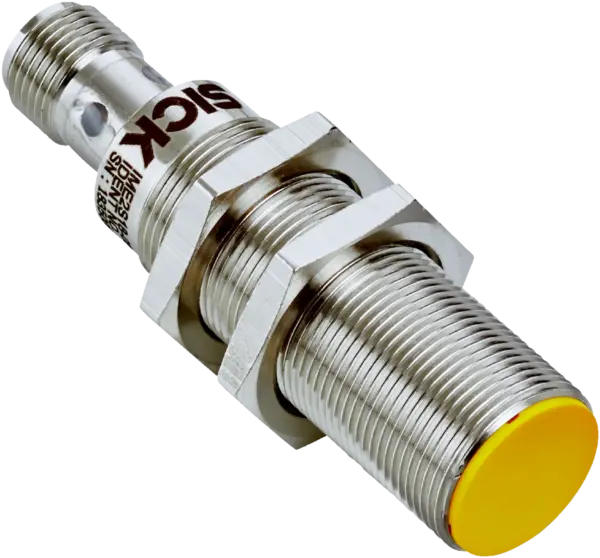

Sick IME2S18-05B4DC0
Safety switches | IME2S | IME2S18-05B4DC0 | Design: Cylindrical | Sensing range Sn: 5 mm | Dimensions: M18 x 69 mm | Thread length: 44.2 mm | Installation type: Flush | Connection type Detail: Male co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | IME2S | IME2S18-05B4DC0 | Design: Cylindrical | Sensing range Sn: 5 mm | Dimensions: M18 x 69 mm | Thread length: 44.2 mm | Installation type: Flush | Connection type Detail: Male connector M12, 4-pin | Type of output: Self-monitoring semiconductor outputs (OSSDs) | Performance level: PL d
Specification
Features
| Sensor principle | Inductive |
|---|---|
| Number of safe outputs | 2 |
| Housing diameter | M18 |
| Sensing range Sn | 5 mm 1) |
| Assured switch on distance Sao | 4 mm 1) |
| Assured switch off distance Sar | 7.5 mm 1) |
| Active sensor surfaces | 1 |
| Actuation frequency | ≤ 100 Hz |
| Items supplied | Including mounting nuts, brass, nickel-plated (2x) |
Safety-related parameters
| Safety integrity level | SIL 2Â (IECÂ 61508) |
|---|---|
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL d (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 6.0 x 10-8 1) |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Type | Type 3Â (ISOÂ 14119-1) |
| Actuator coding level | Uncoded (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | At least one safety-related semiconductor output (OSSD) is in the OFF state. |
Functions
| Safe series connection | With Flexi Loop (with diagnostics) |
|---|
Interfaces
| Connection type | Male connector M12, 4-pin |
|---|---|
| Coupling nut material | Nickel-plated brass |
| Display elements | LEDs |
| Diagnostics indicator | ✔ |
| Status display | ✔ |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Rated insulation voltage Ui | 28.8Â V |
| Rated impulse withstand voltage Uimp | 1,500Â V |
| Supply voltage Vs | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Power consumption | ≤ 20 mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) |
| Response time | ≤ 1 ms |
| Release time | ≤ 2 ms |
| Risk time | ≤ 20 ms |
| Switch-on time | 1Â s |
Mechanics
| Design | Cylindrical |
|---|---|
| Housing diameter | M18 |
| Housing length | 69Â mm |
| Thread length | 44.2Â mm |
| Housing | Nickel-plated brass |
| Sensor surface | VISTAL® |
| Installation type | Flush |
Ambient data
| Enclosure rating | IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +70 °C |
| Storage temperature | –25 °C ... +70 °C |
| Relative humidity | 50 %, at 70 °C (IEC 60947-5-2) |
| Vibration resistance | 10 Hz ... 55 Hz, 1 mm (IEC 60947-5-2) |
| EMC | IECÂ 60947-5-2IECÂ 60947-5-3IECÂ 61000-6-7 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| Third party certificate | ✔ |
Classifications
| ECLASS 5.0 | 27272401 |
|---|---|
| ECLASS 5.1.4 | 27272401 |
| ECLASS 6.0 | 27272401 |
| ECLASS 6.2 | 27272401 |
| ECLASS 7.0 | 27272401 |
| ECLASS 8.0 | 27272401 |
| ECLASS 8.1 | 27272401 |
| ECLASS 9.0 | 27272401 |
| ECLASS 10.0 | 27272401 |
| ECLASS 11.0 | 27272401 |
| ECLASS 12.0 | 27274101 |
| ETIM 5.0 | EC001818 |
| ETIM 6.0 | EC001818 |
| ETIM 7.0 | EC001818 |
| ETIM 8.0 | EC001818 |
| UNSPSC 16.0901 | 39122205 |
