Sick IME18-20NPSZW2S

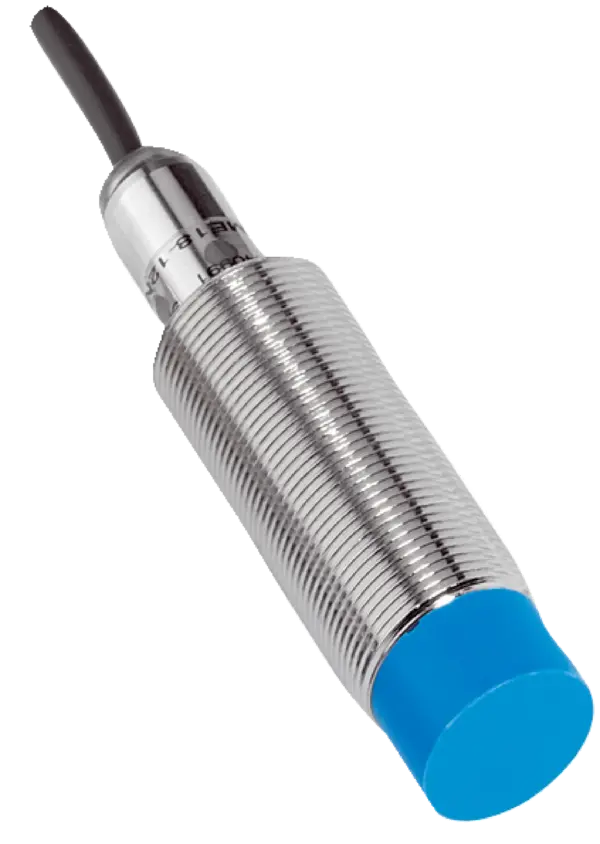

Inductive proximity sensors | IME | IME18-20NPSZW2S | Housing: Standard design | Sensing range Sn: 20 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IME | IME18-20NPSZW2S | Housing: Standard design | Sensing range Sn: 20 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Standard design |
| Thread size | M18Â x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 20Â mm |
| Safe sensing range Sa | 16.2Â mm |
| Installation type | Non-flush |
| Switching frequency | 200Â Hz |
| Connection type | Cable, 3-wire, 2Â m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 1) |
| Special features | Triple sensing range |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 1Â %Â ... 15Â % |
| Reproducibility | ≤ 5 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Cable material | PVC |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.9 mm |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +75 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 67Â mm |
| Thread length | 42Â mm |
| Tightening torque, max. | ≤ 30 Nm |
| UL File No. | NRKH.E181493 |
Safety-related parameters
| MTTFD | 1,735Â years |
|---|---|
| DCavg | 0Â % |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.78 |
| Aluminum (Al) | Approx. 0.43 |
| Copper (Cu) | Approx. 0.37 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 30Â mm |
| B | 86Â mm |
| C | 18Â mm |
| D | 60Â mm |
| E | 20Â mm |
| F | 200Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
