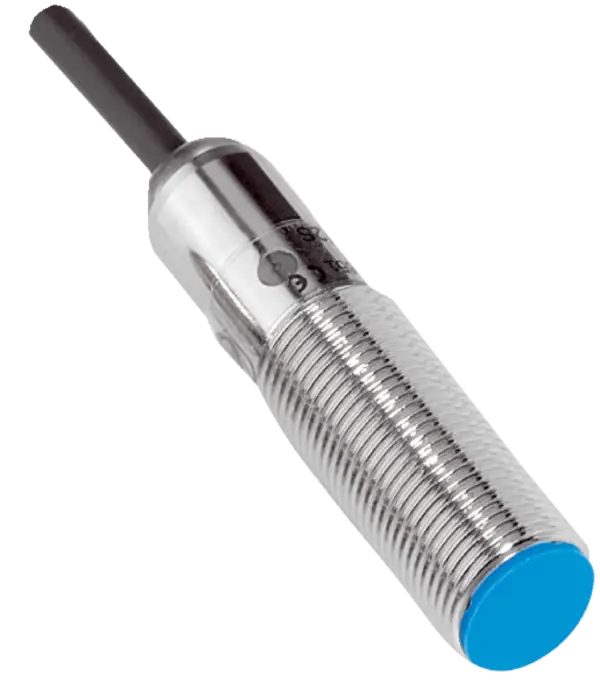

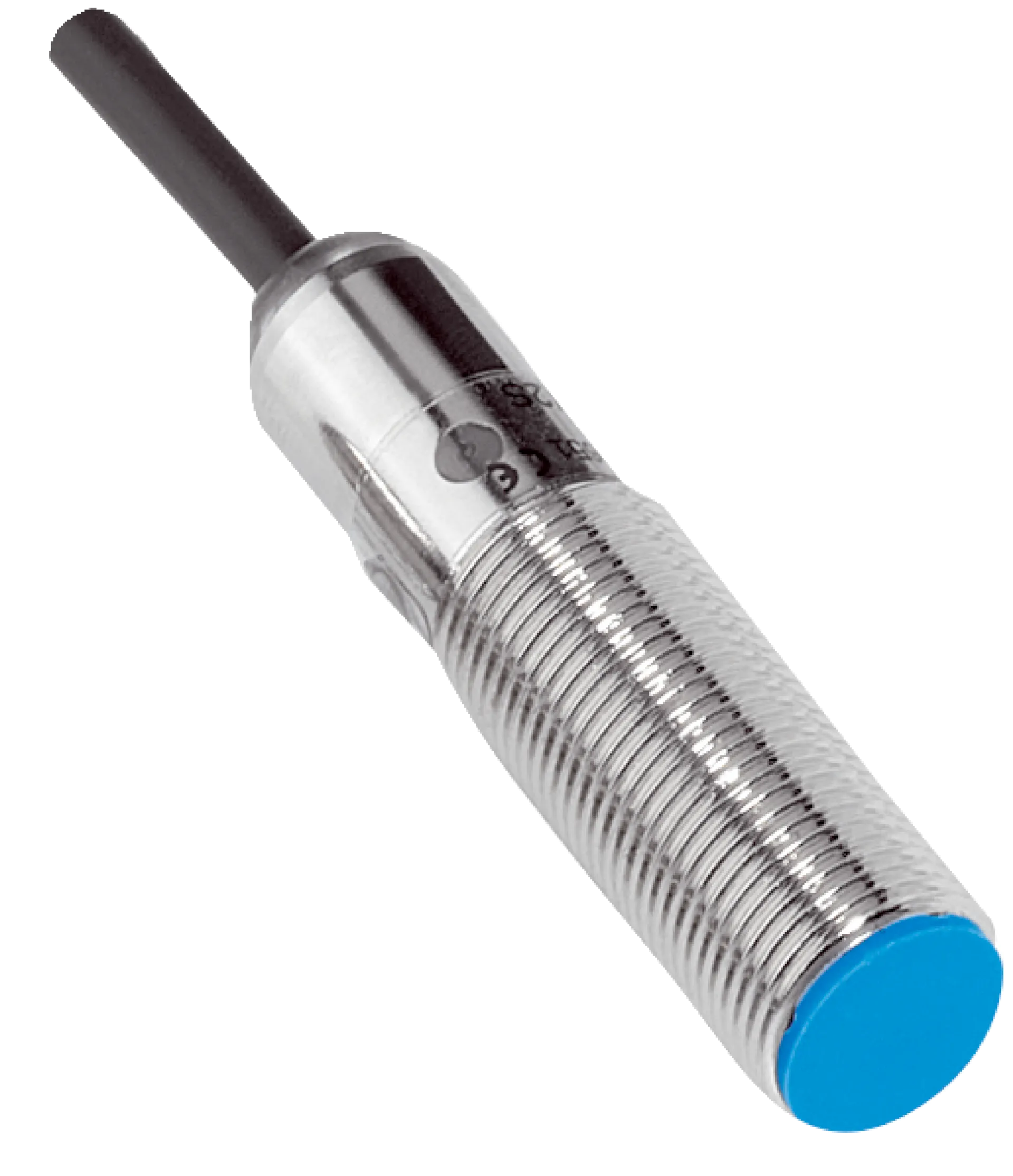

Sick IME12-04BDSZY2K
Inductive proximity sensors | IME | IME12-04BDSZY2K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 2-wire | Output function: NO | Connection type: Ca…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IME | IME12-04BDSZY2K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 2-wire | Output function: NO | Connection type: Cable, 2-wire, 2 m
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Short-body |
| Thread size | M12Â x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4Â mm |
| Safe sensing range Sa | 3.24Â mm |
| Installation type | Flush |
| Switching frequency | 2,000Â Hz |
| Connection type | Cable, 2-wire, 2Â m, Oil-resistant |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67Â 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 4 V 1)≤ 4.5 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5Â %Â ... 15Â % |
| Reproducibility | ≤ 2 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 100 mA |
| Off-state current | ≤ 0.8 mA |
| Minimum load current | ≥ 3 mA |
| Cable material | PVC |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.9 mm |
| Short-circuit protection | ✔ |
| Power-up pulse | ≤ 5 ms |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 44Â mm |
| Thread length | 29Â mm |
| Tightening torque, max. | ≤ 12 Nm |
| UL File No. | NRKH.E181493 |
Safety-related parameters
| MTTFD | 1,103Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 24Â mm |
| C | 12Â mm |
| D | 12Â mm |
| F | 32Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
