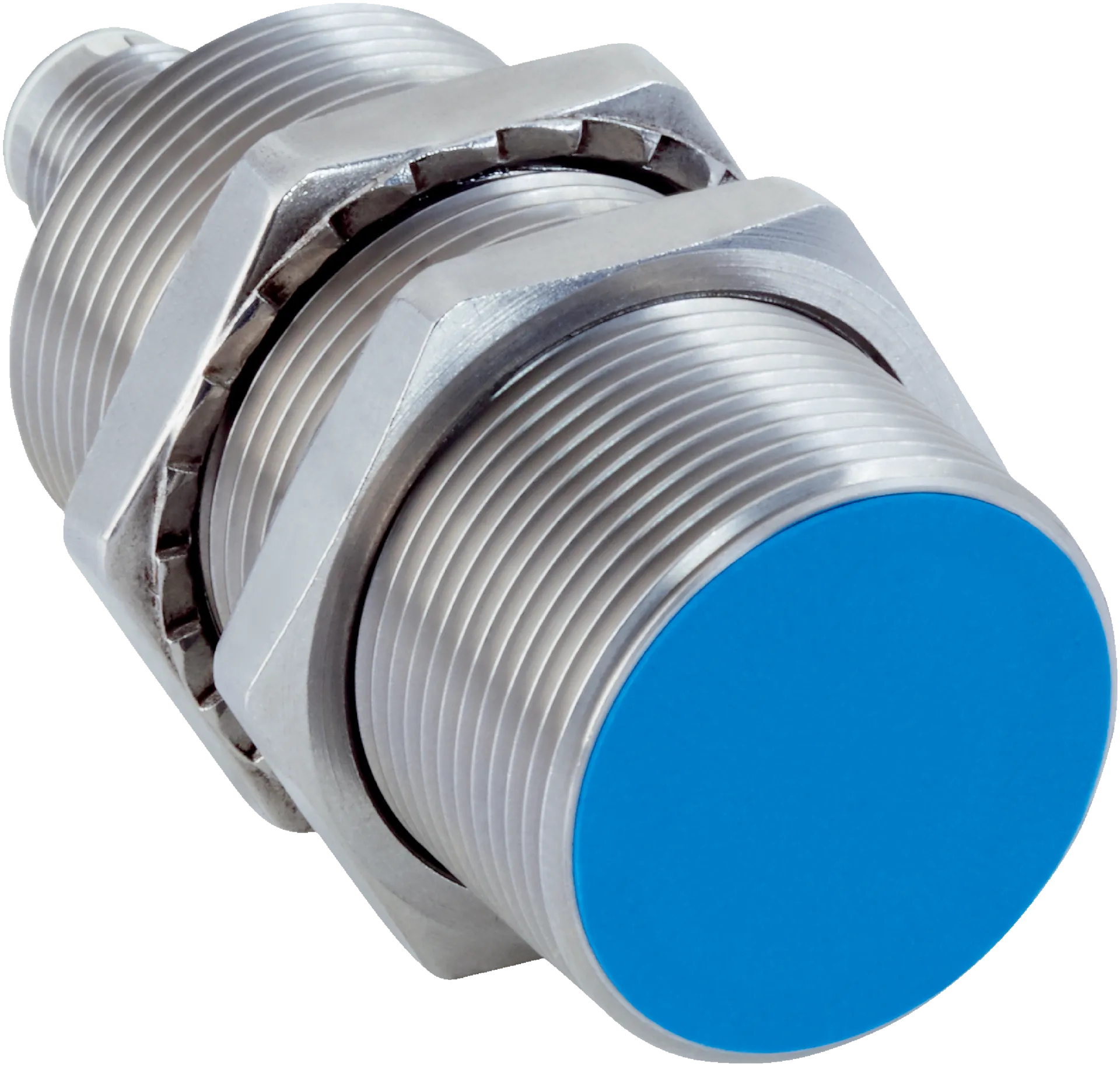

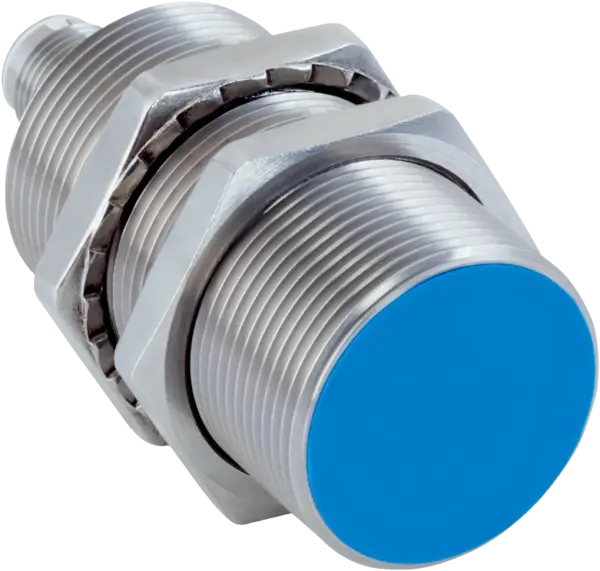

Sick IMC30-15BPPVC0SA71
Inductive proximity sensors | IMC | IMC30-15BPPVC0SA71 | Sensing range Sn: 0 mm … 15 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NC, NO |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMC | IMC30-15BPPVC0SA71 | Sensing range Sn: 0 mm … 15 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NC, NO | Connection type: Male connector M12, 4-pin | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task (Counter + debouncing)
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M30Â x 1.5 |
| Diameter | ÃÂ 30Â mm |
| Sensing range Sn | 0 mm ... 15 mm 1) |
| Safe sensing range Sa | 12.15Â mm |
| Number of switching points | Up to 4Â adjustable switching points or windows |
| Switching modes | Single point, Window mode, Two point mode, Visual adjustment indicator |
| Switching frequency Qint.1Â / Qint.2Â on Pin2 | 200Â Hz |
| Installation type | Flush |
| Connection type | Male connector M12, 4-pin 2) |
| Switching output | PNP |
| Switching output detail | PNP |
| Output Q/C | Switching output or IO-Link mode |
| Output MFC | Switching output or input |
| Output function | NC / NO |
| Output characteristic | Programmable |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68Â 3)IP69KÂ 4) |
| Special features | Smart Task, Resistant against coolant lubricants, IO-Link |
| Special applications | Zones with coolants and lubricants, Difficult application conditions |
| Special characteristic | Resistant against coolant lubricants |
| Pin 2Â configuration | External input, Teach-in, switching signal |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 10 % |
| Voltage drop | â¤Â 2 V 2) |
| Hysteresis | Programmable 3) |
| Reproducibility | â¤Â 5 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 200 mA 6) |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g |
| Ambient operating temperature | â40 °C ... +75 °C |
| Housing material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 70Â mm |
| Thread length | 52Â mm |
| Tightening torque, max. | Typ. 100 Nm 7) |
| UL File No. | E181493 |
| Teach-in accuracy | +/- 3% of Sr |
| Resolution, typical (range) | 25 μm (0 mm ... 6 mm)75 μm (6 mm ... 10 mm)300 μm (10 mm ... 15 mm) |
| Resolution, maximum (area) | 50 μm (0 mm ... 6 mm)150 μm (6 mm ... 10 mm)500 μm (10 mm ... 15 mm) |
Safety-related parameters
| MTTFD | 688Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 5Â ms |
| Process data length | 32Â Bit |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = switching signal QInt3Bit 3Â = switching signal QInt4Bit 18Â ... 31Â = counting value |
| Factory setting | Switching Point 1: reference value 1Output: normally openPin 2Â configuration: input |
Reference values
| Note | Reference value in Digits for switching point in mm stored in the sensor |
|---|---|
| Reference value 1 | 14Â mm |
| Reference value 2 | 10Â mm |
| Reference value 3 | 6Â mm |
| Reference value 4 | 2Â mm |
Reduction factors
| Stainless steel (V2A, 304) | Approx. 0.6 |
|---|---|
| Aluminum (Al) | Approx. 0.2 |
| Copper (Cu) | Approx. 0.2 |
| Brass (Br) | Approx. 0.2 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 40Â mm |
| C | 30Â mm |
| D | 45Â mm |
| F | 120Â mm |
Smart Task
| Smart Task name | Counter + debouncing |
|---|---|
| Logic function | WindowHysteresisDirect |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Adjustable |
| Maximum counting frequency | SIO Logic: 200 Hz 1)IOL: 200 Hz 2) |
| Counter reset | SIO Logic: 500 µsIOL: --- |
| Debounce time max. | SIO Logic: 30 s 1)IOL: 30 s 2) |
| Switching signal QL1 | Output type (dependant on the adjusted threshold) |
| Switching signal QL2 | Output type (dependant on the adjusted threshold) |
| Measuring value | Counting value |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| IO-Link certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
