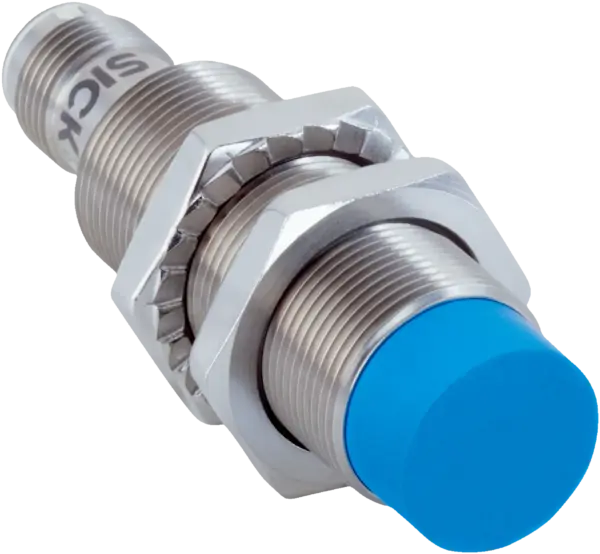

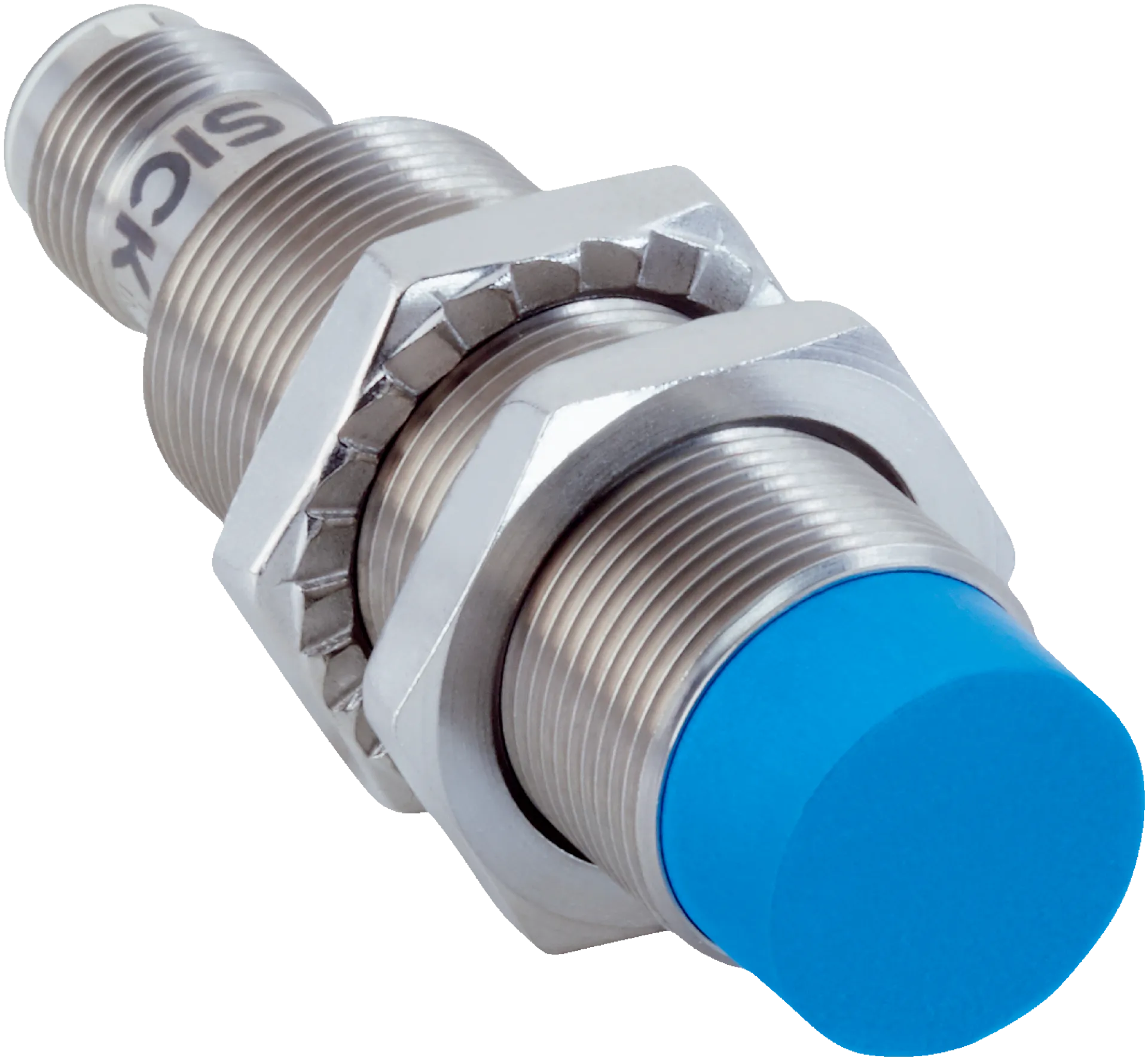

Sick IMC18-12NPPVC0SA70
Inductive proximity sensors | IMC | IMC18-12NPPVC0SA70 | Sensing range Sn: 0 mm … 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NC, N…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMC | IMC18-12NPPVC0SA70 | Sensing range Sn: 0 mm … 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NC, NO | Connection type: Male connector M12, 4-pin | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task (Time measurement + debouncing)
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M18Â x 1 |
| Diameter | ÃÂ 18Â mm |
| Sensing range Sn | 0 mm ... 12 mm 1) |
| Safe sensing range Sa | 9.72Â mm |
| Number of switching points | Up to 4Â adjustable switching points or windows |
| Switching modes | Single point, Window mode, Two point mode, Visual adjustment indicator |
| Switching frequency Qint.1Â / Qint.2Â on Pin2 | 250Â Hz |
| Installation type | Non-flush |
| Connection type | Male connector M12, 4-pin 2) |
| Switching output | PNP |
| Switching output detail | PNP |
| Output Q/C | Switching output or IO-Link mode |
| Output MFC | Switching output or input |
| Output function | NC / NO |
| Output characteristic | Programmable |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68Â 3)IP69KÂ 4) |
| Special features | Smart Task, Resistant against coolant lubricants, IO-Link |
| Special applications | Zones with coolants and lubricants, Difficult application conditions |
| Special characteristic | Resistant against coolant lubricants |
| Pin 2Â configuration | External input, Teach-in, switching signal |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 10 % |
| Voltage drop | â¤Â 2 V 2) |
| Hysteresis | Programmable 3) |
| Reproducibility | â¤Â 5 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 200 mA 6) |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g |
| Ambient operating temperature | â40 °C ... +75 °C |
| Housing material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 65Â mm |
| Thread length | 39Â mm |
| Tightening torque, max. | Typ. 90 Nm 7) |
| UL File No. | E181493 |
| Teach-in accuracy | +/- 3% of Sr |
| Resolution, typical (range) | 40 μm (0 mm ... 8 mm)75 μm (8 mm ... 10 mm)150 μm (10 mm ... 12 mm) |
| Resolution, maximum (area) | 75 μm (8 mm ... 10 mm)150 μm (10 mm ... 12 mm)300 μm (10 mm ... 12 mm) |
Safety-related parameters
| MTTFD | 688Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 5Â ms |
| Process data length | 32Â Bit |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = switching signal QInt3Bit 3Â = switching signal QInt4Bit 18Â ... 31Â = time value |
| Factory setting | Switching Point 1: reference value 1Output: normally openPin 2Â configuration: input |
Reference values
| Note | Reference value in Digits for switching point in mm stored in the sensor |
|---|---|
| Reference value 1 | 12Â mm |
| Reference value 2 | 10Â mm |
| Reference value 3 | 8Â mm |
| Reference value 4 | 5Â mm |
Reduction factors
| Stainless steel (V2A, 304) | Approx. 0.7 |
|---|---|
| Aluminum (Al) | Approx. 0.4 |
| Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 18Â mm |
| B | 45Â mm |
| C | 18Â mm |
| D | 36Â mm |
| E | 12Â mm |
| F | 96Â mm |
Smart Task
| Smart Task name | Time measurement + debouncing |
|---|---|
| Logic function | WindowDirect |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Adjustable |
| Time measurement accuracy | SIO Logic: (-1,2 ... 0) x time base ± 1 % of time measurement value 1)IOL: (-1,2 ... 0) x time base ± 1 % of time measurement value 2) |
| Time measurement accuracy (e.g. accuracy for time measurement value = 1 s ) | Time base 1 ms: â11,2 ms ... 10 ms |
| Resolution time measuring value | 2Â ms |
| Debounce time max. | SIO Logic: 30 s 1)IOL: 30 s 2) |
| Switching signal QL1 | Output type (dependant on the adjusted threshold) |
| Switching signal QL2 | Output type (dependant on the adjusted threshold) |
| Measuring value | Time measurement value |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| IO-Link certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
