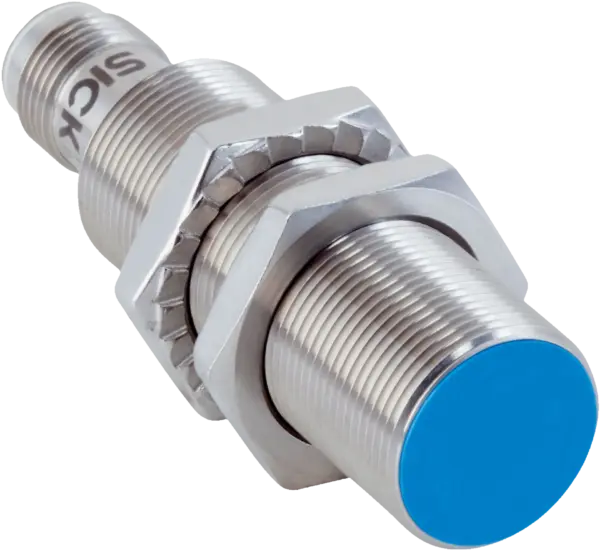

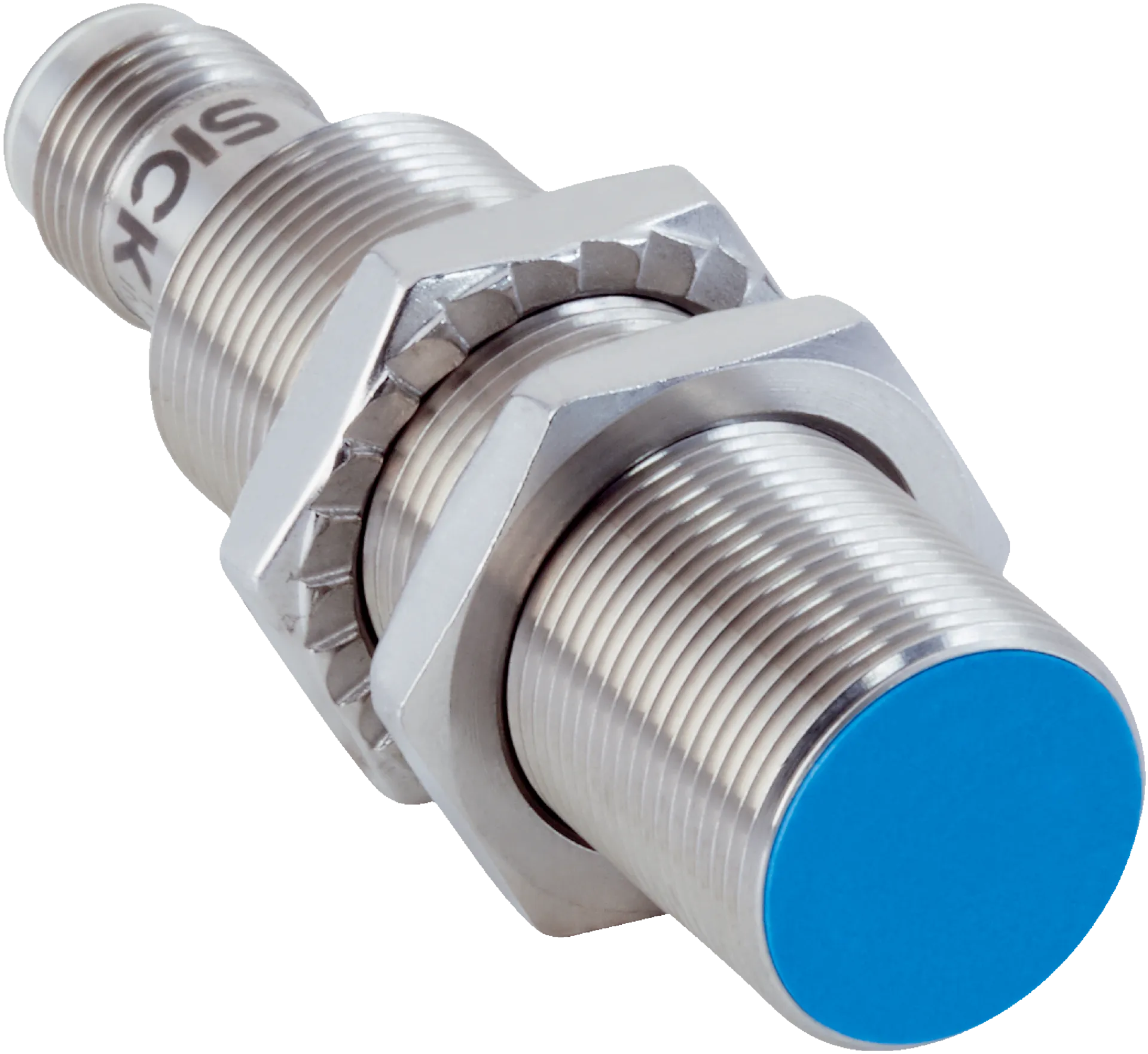

Sick IMB18-08BPPVC0S

Inductive proximity sensors | IMB | IMB18-08BPPVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing r…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Inductive proximity sensors | IMB | IMB18-08BPPVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Quasi-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, IO-Link, Temperature resistance

Specification

Features

HousingMetric
HousingStandard design
Thread sizeM18Â x 1
DiameterØ 18 mm
Sensing range Sn8Â mm
Safe sensing range Sa6.48Â mm
Installation typeQuasi-flush 1)
Switching frequency1,000Â Hz
Connection typeMale connector M12, 4-pin 2)
Switching outputPNP
Switching output detailPNP
Output functionComplementary
Electrical wiringDC 4-wire
Enclosure ratingIP68Â 3)IP69KÂ 4)
Special featuresResistant against coolant lubricants, IO-Link, Temperature resistance
Special applicationsZones with coolants and lubricants, Mobile machines, Difficult application conditions
Items suppliedMounting nut, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage10Â VÂ DCÂ ... 30Â VÂ DC
Ripple≤ 10 %
Voltage drop≤ 2 V 1)
Hysteresis3Â %Â ... 20Â %
Reproducibility≤ 2 % 2) 3)
Temperature drift (of Sr)± 10 %
EMCAccording to ENÂ 60947-5-2
Continuous current Ia≤ 200 mA
No load current≤ 10 mA
Short-circuit protection✔
Power-up pulse protection✔
Shock and vibration resistance100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g
Ambient operating temperature–40 °C ... +100 °C
Housing materialStainless steel V2A, DINÂ 1.4305Â / AISI 303
Sensing face materialPlastic, LCP
Housing length65Â mm
Thread length47Â mm
Tightening torque, max.Typ. 60 Nm 4)Typ. 90 Nm 5)
Protection classIII
UL File No.E181493

Safety-related parameters

MTTFD2,016Â years
DCavg0Â %

Communication interface

Communication interfaceIO-Link V1.0
Communication Interface detailCOM2 (38,4Â kBaud)
Process data length1Â Byte
Process data structureBit 0Â = Sr reachedBit 1Â = Sa reached

Reduction factors

NoteThe values are reference values which may vary
St37 steel (Fe)1
Stainless steel (V2A, 304)Approx. 0.55
Aluminum (Al)Approx. 0.24
Copper (Cu)Approx. 0.19
Brass (Br)Approx. 0.24

Installation note

RemarkAssociated graphic see "Installation"
A9Â mm
B18Â mm
C18Â mm
D24Â mm
E2Â mm
F64Â mm

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
cULus certificate✔
IO-Link certificate✔

Classifications

ECLASS 5.027270101
ECLASS 5.1.427270101
ECLASS 6.027270101
ECLASS 6.227270101
ECLASS 7.027270101
ECLASS 8.027270101
ECLASS 8.127270101
ECLASS 9.027270101
ECLASS 10.027270101
ECLASS 11.027270101
ECLASS 12.027274001
ETIM 5.0EC002714
ETIM 6.0EC002714
ETIM 7.0EC002714
ETIM 8.0EC002714
UNSPSC 16.090139122230
