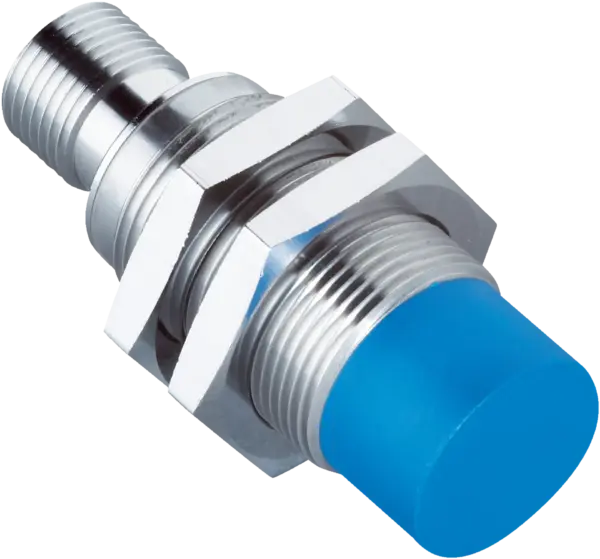

Inductive proximity sensors | IMA | IMA18-20NE1ZC0K | Sensing range Sn: 0 mm … 20 mm | Installation type: Non-flush | Output function: Analog | Connection type: Male connector M12, 4-pin | Special features: Analog output, triple sensing range
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M18Â x 1 |
| Diameter | ÃÂ 18Â mm |
| Sensing range Sn | 0 mm ... 20 mm |
| Installation type | Non-flush |
| Connection type | Male connector M12, 4-pin |
| Output function | Analog |
| Repeatability (Ta not constant) | 0.3 mm 1) 2) 3) |
| Repeatability (Ta constant) | ± 0.05 mm |
| Resolution | â¤Â 5 µm |
| Enclosure rating | IP67Â 4) |
| Special features | Analog output, triple sensing range |
| Items supplied | Mounting nut, brass, chromium-plated (2x)Toothed washer, stainless steel (2Â x) |
Mechanics/electronics
| Supply voltage | 15Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 20 % 1) |
| Time delay before availability | â¤Â 60 ms |
| Temperature drift (of Sr) | â¤Â 10 % |
| No load current | â¤Â 12 mA 2) |
| Load current | ± 10 mA 3) |
| Max. load resistance | â¤Â 400 Ω Ub = 15 Vâ¤Â 1,000 Ω Ub = 30 V |
| Output voltage QA1 | s = 0 mm: 0 V/-0 +0,4 V (23 °C)s = 10 mm: +5,2 V/ +-0,4 V (23 °C)s = 20 mm: +10 V/ +-0,4 V (23 °C) |
| Output current QA2 | s = 0 mm: 4 mA/ +-0,8 mA (23 °C)s = 20 mm: 20 mA +/-0,8 mA (23 °C) |
| Output voltage | 0Â VÂ ... 10Â V |
| Bandwidth | 250 Hz 4) |
| Short-circuit protection | â |
| Ambient operating temperature | â25 °C ... +70 °C 5) 6) |
| Housing material | Brass, chromium-plated |
| Sensing face material | Plastic, PTB |
| Housing length | 48.5Â mm |
| Thread length | 22Â mm |
Safety-related parameters
| MTTFD | 88Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.69 |
| Aluminum (Al) | Approx. 0.38 |
| Copper (Cu) | Approx. 0.36 |
| Brass (Br) | Approx. 0.46 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 21Â mm |
| B | 60Â mm |
| C | 18Â mm |
| D | 60Â mm |
| E | 20Â mm |
| F | 200Â mm |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
