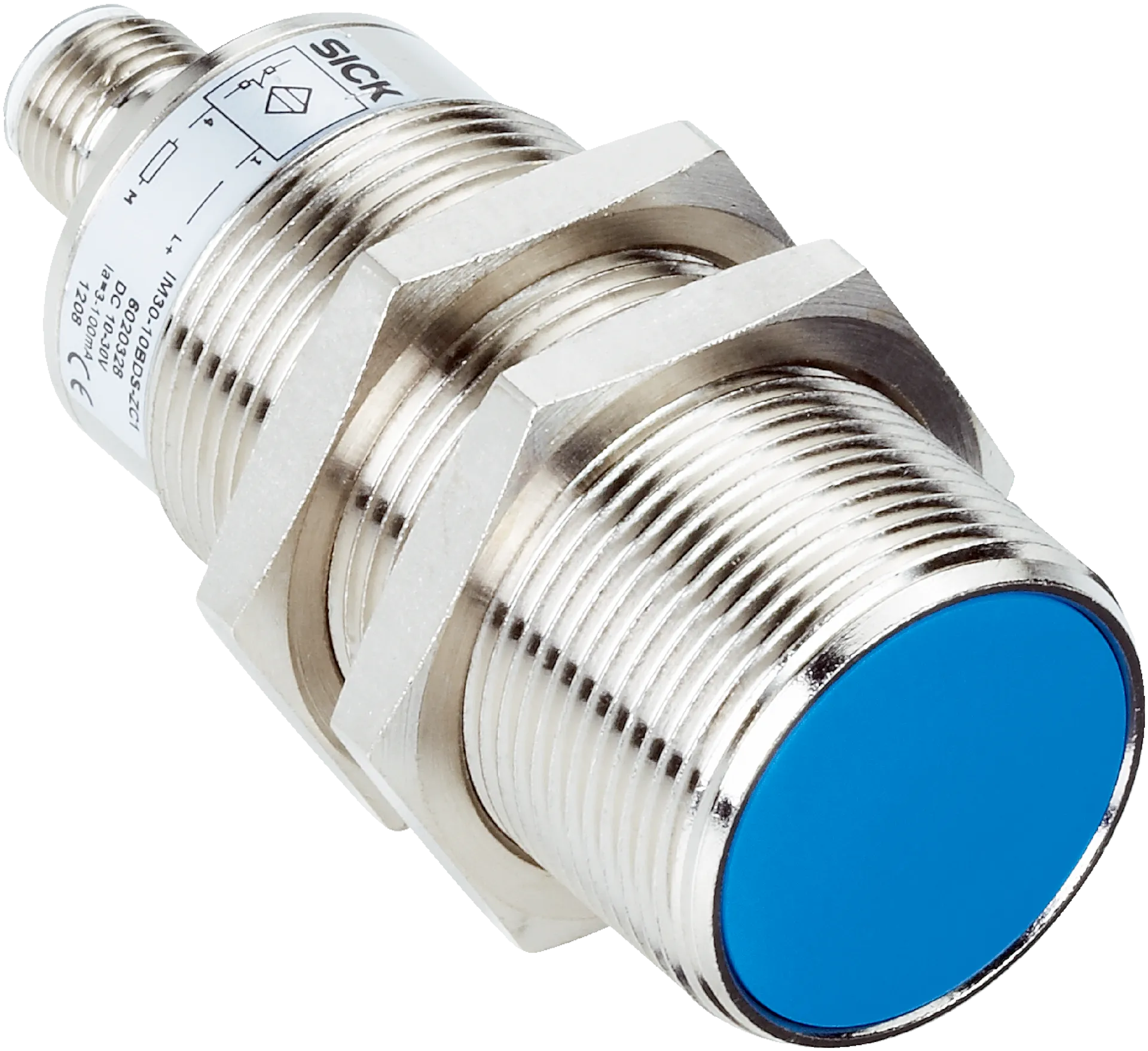

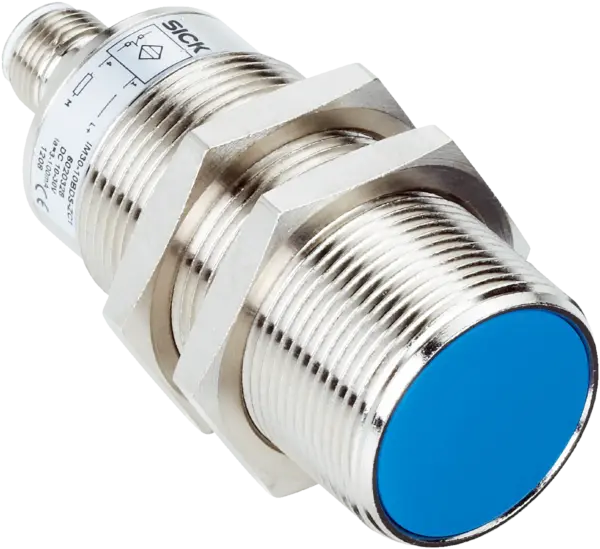

Sick IM30-15NUO-ZU0
Inductive proximity sensors | IMW | IM30-15NUO-ZU0 | Housing: Standard design | Sensing range Sn: 15 mm | Installation type: Non-flush | Electrical wiring: AC/DC 2-wire | Output function: NC | Connect…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMW | IM30-15NUO-ZU0 | Housing: Standard design | Sensing range Sn: 15 mm | Installation type: Non-flush | Electrical wiring: AC/DC 2-wire | Output function: NC | Connection type: Cable, 2-wire, 2 m
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Standard design |
| Thread size | M30Â x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range Sn | 15Â mm |
| Safe sensing range Sa | 12.15Â mm |
| Installation type | Non-flush |
| Switching frequency | 25 Hz 1)50 Hz 2) |
| Connection type | Cable, 2-wire, 2Â m |
| Output function | NC |
| Electrical wiring | AC/DC 2-wire |
| Enclosure rating | IP67Â 3) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 20Â VÂ AC/DCÂ ... 250Â VÂ AC/DC |
|---|---|
| Voltage drop | ≤ 6.5 V AC, ≤ 6 V DC |
| Time delay before availability | ≤ 8 ms |
| Hysteresis | 1Â %Â ... 15Â % |
| Reproducibility | ≤ 10 % 1) 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2As per ENÂ 55011, class B |
| Continuous current Ia | ≤ 350 mA 4)≤ 250 mA 5)≤ 100 mA 6) |
| Off-state current | ≤ 2.5 mA (AC 250 V)≤ 1.3 mA (AC 110 V)≤ 0.8 mA (DC 24 V) |
| Minimum load current | ≥ 5 mA |
| Short-time withstand current | 2.2Â AÂ 7) |
| Cable material | PUR/PVC |
| Conductor size | 0.5 mm² |
| Short-circuit protection | Â 8) |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PBT |
| Housing length | 81Â mm |
| Thread length | 44Â mm |
| Tightening torque, max. | ≤ 50 Nm |
| Protection class | II |
| Rated insulation voltage Ui | 250Â VÂ AC |
| Usage category | AC-140Â 9)DC-13Â 10) |
| Contamination rating | 3 |
| Rated impulse withstand voltage | 4Â kV |
Safety-related parameters
| MTTFD | 971Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 30Â mm |
| B | 60Â mm |
| C | 30Â mm |
| D | 45Â mm |
| E | 30Â mm |
| F | 120Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
