Description

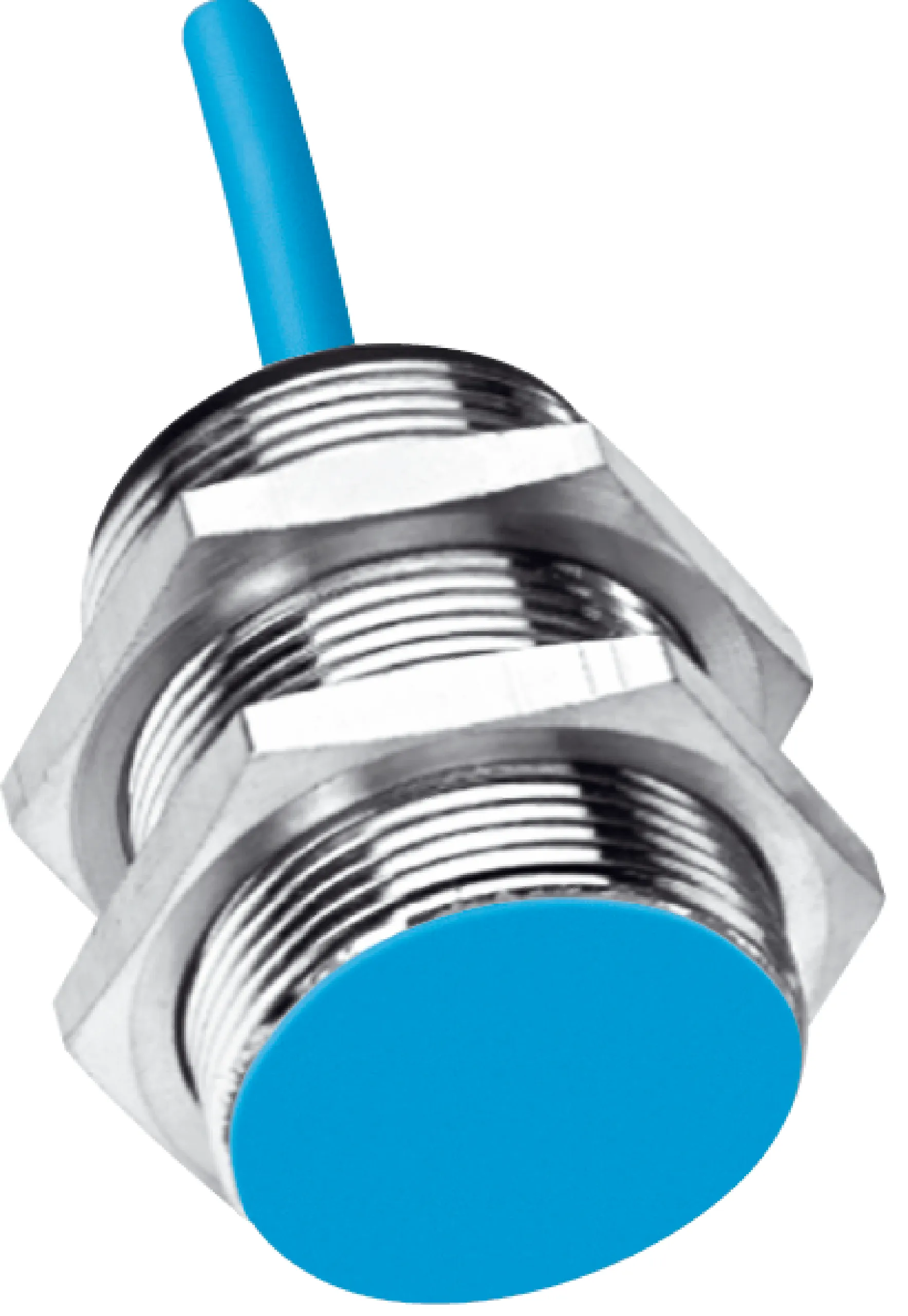

Inductive proximity sensors | IMN | IM30-10B-N-ZW0 | Special applications: Explosive areas | Sensing range Sn: 10 mm | Installation type: Flush | Switching output: NAMUR | Output function: NC | Connection type: Cable, 2-wire, 2 m | Info: II 1G Ex ia IIC T6 Ga Ta –20 °C … +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C … +70 °C PTB 03 ATEX 2037 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and associated product data, such as part number, datcode, serial number)
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M30Â x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range Sn | 10Â mm |
| Safe sensing range Sa | 8.1Â mm |
| Installation type | Flush |
| Switching frequency | 450Â Hz |
| Connection type | Cable, 2-wire, 2Â m |
| Switching output | NAMUR |
| Switching output detail | NAMUR |
| Output function | NC |
| Enclosure rating | IP67Â 1) |
| Special applications | Explosive areas |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 7.5Â VÂ DCÂ ... 25Â VÂ DCÂ 1) |
|---|---|
| Hysteresis | 1Â %Â ... 15Â % |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-6 |
| Current consumption, sensor is activated | ≤ 1 mA |
| Current consumption, sensor is not activated | ≥ 2.2 mA |
| Cable material | PVC |
| Conductor size | 0.5 mm² |
| Cable diameter | Ø 5.4 mm |
| Cable resistance | 50 Ω |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C ... +70 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PTB |
| Housing length | 41Â mm |
| Thread length | 40Â mm |
| Tightening torque, max. | 50Â Nm |
| Weight | +Â 233Â g |
| Type approval certificate | PTB 03Â ATEX 2037 |
| Ex area category | 1G, 2G |
| Input voltage Ui max. | 15Â VÂ 2) |
| Input power Pi max. | 120Â mWÂ 2) |
| Input current Ii max. | 50Â mAÂ 2) |
| Internal capacitance Ci max. | 145Â nFÂ 2) |
| Internal inductance Li max. | 140 µH 2) |
| Nominal voltage | 8.2Â VÂ DCÂ 3) |
| Device labeling | II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C ... +70 °C |
Safety-related parameters
| MTTFD | 7,515Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.7 |
| Aluminum (Al) | Approx. 0.4 |
| Copper (Cu) | Approx. 0.3 |
| Brass (Br) | Approx. 0.5 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 30Â mm |
| C | 30Â mm |
| D | 30Â mm |
| F | 80Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| ATEX certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
