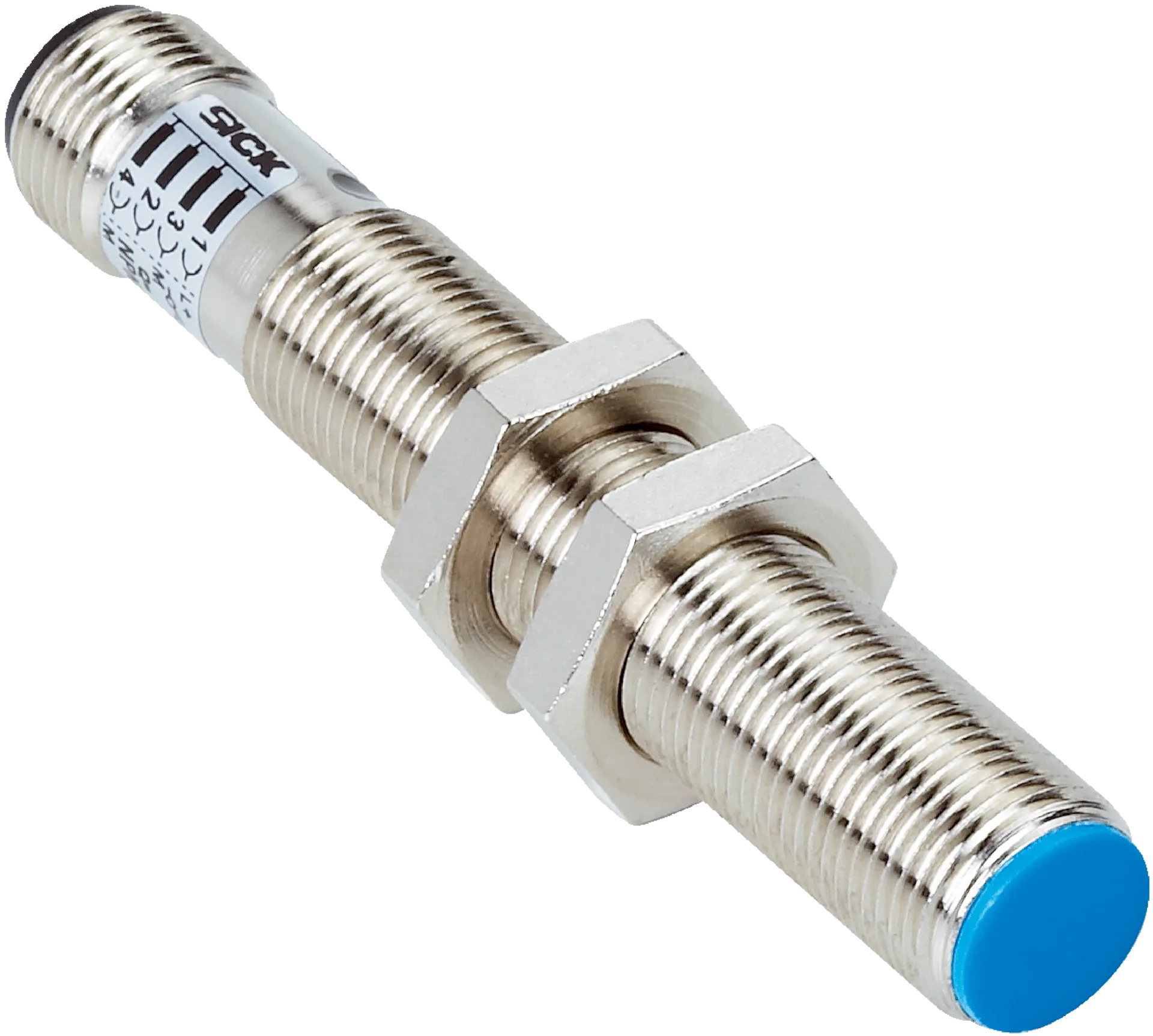

Sick IM12-02BAS-ZU0
Inductive proximity sensors | IMW | IM12-02BAS-ZU0 | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: AC 2-wire | Output function: NO | Connection type…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMW | IM12-02BAS-ZU0 | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: AC 2-wire | Output function: NO | Connection type: Cable, 2-wire, 2 m
Specification
Features
| Housing | Metric |
|---|---|
| Housing | Standard design |
| Thread size | M12Â x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 2Â mm |
| Safe sensing range Sa | 1.62Â mm |
| Installation type | Flush |
| Switching frequency | 25Â Hz |
| Connection type | Cable, 2-wire, 2Â m |
| Output function | NO |
| Electrical wiring | AC 2-wire |
| Enclosure rating | IP67Â 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 20Â VÂ ACÂ ... 250Â VÂ AC |
|---|---|
| Voltage drop | ≤ 8.5 V 1) |
| Time delay before availability | ≤ 10 ms |
| Hysteresis | 1Â %Â ... 15Â % |
| Reproducibility | ≤ 10 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2As per ENÂ 55011, class B |
| Continuous current Ia | ≤ 250 mA 4)≤ 200 mA 5) |
| Off-state current | ≤ 3 mA (AC 250 V)≤ 1.5 mA (AC 120 V) |
| Minimum load current | ≥ 8 mA |
| Short-time withstand current | 0.9Â AÂ 6) |
| Cable material | PUR/PVC |
| Conductor size | 0.5 mm² |
| Short-circuit protection | Â 7) |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PBT |
| Housing length | 71Â mm |
| Thread length | 50Â mm |
| Tightening torque, max. | ≤ 7 Nm |
| Protection class | I |
Safety-related parameters
| MTTFD | 1,491Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 0Â mm |
| E | 0Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
