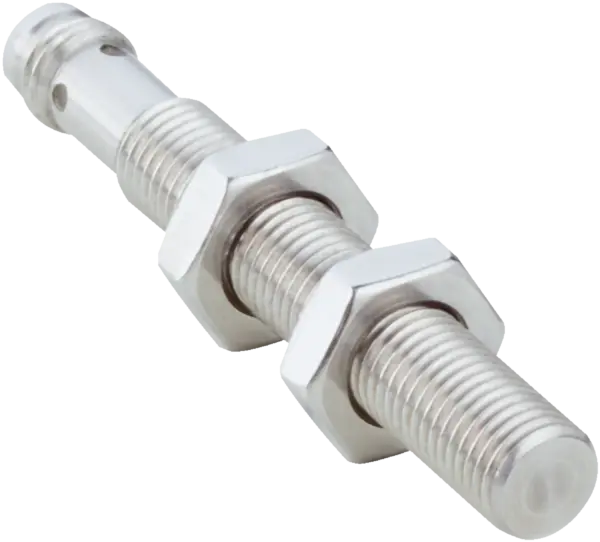

Sick IM08-03BPS-VT1
Inductive proximity sensors | IMI | IM08-03BPS-VT1 | Special applications: Zones with coolants and lubricants, Difficult application conditions | Special features: Sensing face made of stainless steel…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMI | IM08-03BPS-VT1 | Special applications: Zones with coolants and lubricants, Difficult application conditions | Special features: Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M8Â x 1 |
| Diameter | Ø 8 mm |
| Pressure resistance | ≤ 100 bar |
| Sensing range Sn | 3Â mm |
| Safe sensing range Sa | 2.43Â mm |
| Installation type | Flush |
| Switching frequency | 1,200Â Hz |
| Connection type | Connector M8, 3-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68, IP69KÂ 1) |
| Special features | Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link |
| Special applications | Zones with coolants and lubricants, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel (2x)Washer, V2A stainless steel, with locking teeth (2x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 20 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 10 ms |
| Hysteresis | 1Â %Â ... 20Â % |
| Reproducibility | ≤ 5 % 3) 4) |
| Temperature drift (of Sr) | ≤ 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +85 °C |
| Housing material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Sensing face material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Housing length | 60Â mm |
| Thread length | 45.5Â mm |
| Tightening torque, max. | ≤ 8 Nm |
| Protection class | III |
| UL File No. | E191603 |
Communication interface
| Communication interface | IO-Link V1.0 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Process data length | 1Â Byte |
| Process data structure | Bit 0Â = Sr reached |
| Process data structure A | Bit 1Â = Sa reached |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | Approx. 1 |
| Stainless steel (V4A, 316L) | Approx. 0.4 1) |
| Aluminum (Al) | Approx. 1 |
| Copper (Cu) | Approx. 0.9 |
| Brass (Br) | Approx. 1.3 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 14Â mm |
| C | 6Â mm |
| D | 6Â mm |
| F | 30Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
