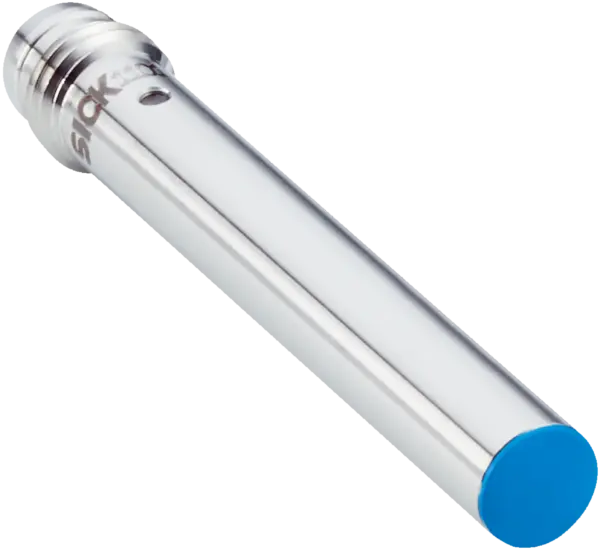

Sick IHM06-03BPSVT0S
Inductive proximity sensors | IMM | IHM06-03BPSVT0S | Housing: Standard design | Sensing range Sn: 3 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output funct…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive proximity sensors | IMM | IHM06-03BPSVT0S | Housing: Standard design | Sensing range Sn: 3 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Visual adjustment indicator, triple sensing range
Specification
Features
| Housing | Cylindrical |
|---|---|
| Housing | Standard design |
| Diameter | Ø 6.5 mm |
| Sensing range Sn | 3Â mm |
| Safe sensing range Sa | 2.43Â mm |
| Installation type | Flush |
| Switching frequency | 1,500Â Hz |
| Connection type | Connector M8, 3-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 1) |
| Special features | Visual adjustment indicator, triple sensing range |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | ≤ 20 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 50 ms |
| Hysteresis | 1Â %Â ... 10Â % |
| Reproducibility | ≤ 2 % 3) |
| Temperature drift (of Sr) | ≤ 10 % |
| EMC | ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Stainless steel V2A, DINÂ 1.4305Â / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 50Â mm |
| UL File No. | NRKH.E348498 |
Safety-related parameters
| MTTFD | 1,330Â years |
|---|---|
| DCavg | 0Â % |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 10.4Â ms |
| Process data length | 1Â Byte |
| Process data structure | Bit 0Â = Sr reachedBit 1Â = Sa reached |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.75 |
| Aluminum (Al) | Approx. 0.5 |
| Copper (Cu) | Approx. 0.43 |
| Brass (Br) | Approx. 0.54 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| B | 10Â mm |
| C | 6.5Â mm |
| D | 9Â mm |
| F | 24Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| IO-Link certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270101 |
|---|---|
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
