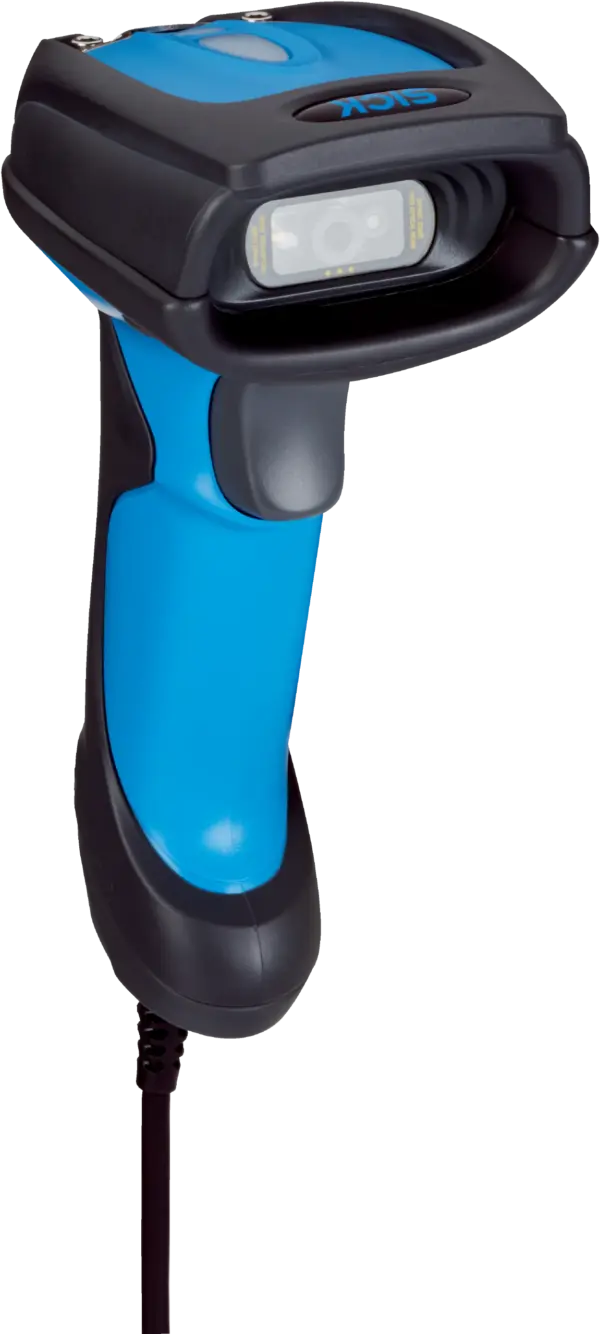

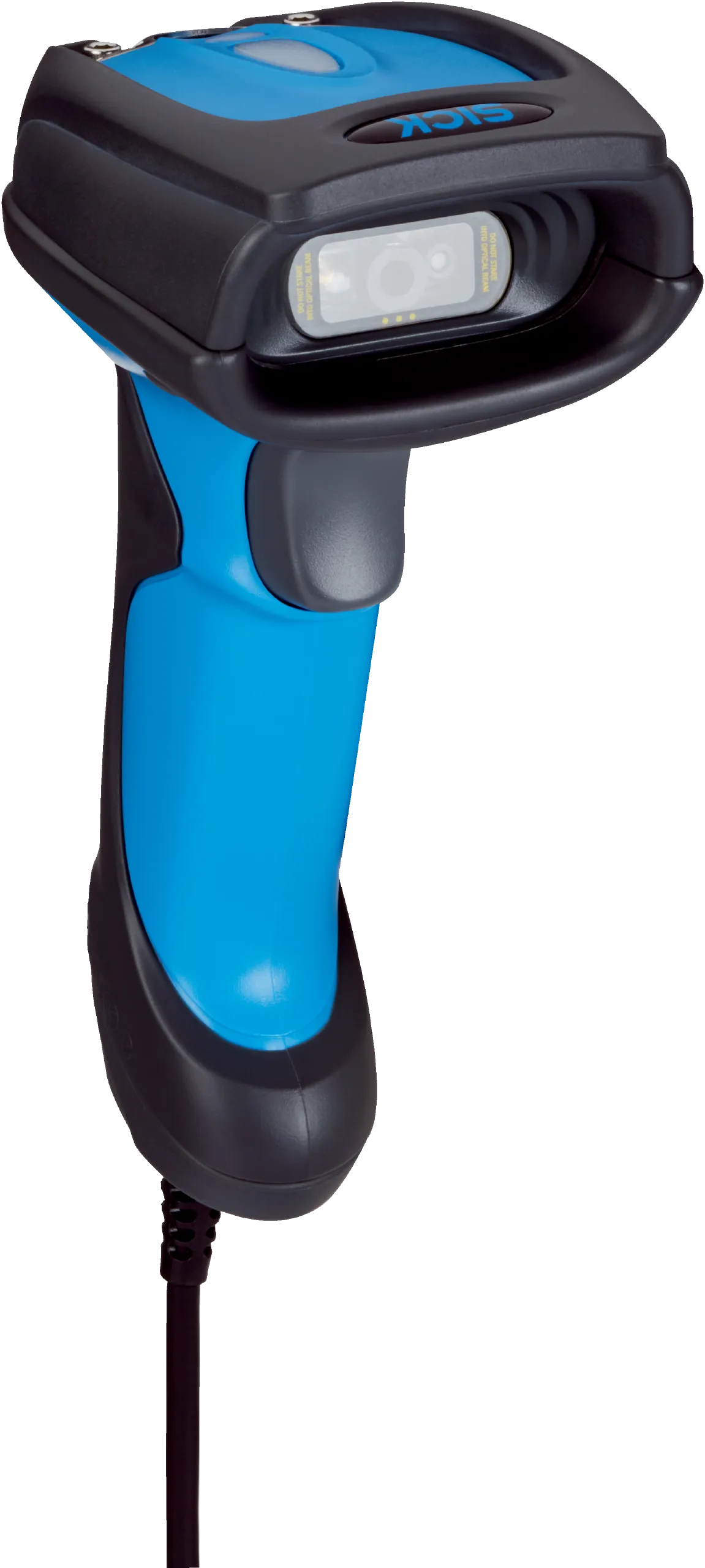

Sick IDM260-411S CDF600 Profinet-TCP/IP Set
Mobile handheld scanners | IDM | IDM260-411S CDF600 Profinet-TCP/IP Set | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm … 400 mm | Application: Industrial applicati…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mobile handheld scanners | IDM | IDM260-411S CDF600 Profinet-TCP/IP Set | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm … 400 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP | Ambient operating temperature: –20 °C … +50 °C | Code resolution: ≥ 0.07 mm≥ 0.13 mm
Specification
Features
| Application | Industrial application |
|---|---|
| Description | The IDM260-411S CDF600 Profinet-TCP/IPÂ Kit is the ideal solution for industrial applications that require reliable and efficient barcode reading. This kit includes the powerful IDM260-411S cable-bound mobile handheld scanner and the CDF600 Profinet TCP/IPÂ module, which enables seamless integration into existing networks. The kit also includes the connecting cables between the mobile handheld scanner and the CDF600. |
| Scanner design | Cable connection variant |
| Sensor resolution | 1,280 px x 800 px |
| Light source | LED, Visible, Red, 660Â nm |
| Alignment aid | Laser, Red, 630Â nm |
| Laser class | 1Â (EN/IECÂ 60825-1:2014) |
| Reading distance | 30 mm ... 400 mm |
| Code resolution | ⥠0.07 mm 1)⥠0.13 mm 2) |
Mechanics/electronics
| Supply voltage | 5 V DC, ± 10 % |
|---|---|
| Current consumption | Operation (vibration deactivated): 395Â mAOperation (vibration activated): 420Â mAStandby: 220Â mA |
| Housing color | Blue, gray |
| Enclosure rating | IP65 |
| Weight | 208Â g, without cable |
| Dimensions (L x W x H) | 104 mm x 76.3 mm x 176 mm |
| MTBF | 100,000Â h |
Performance
| Readable code structures | 1D codes, 2D codes, Stacked |
|---|---|
| Bar code types | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard and Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC / EAN / JAN, UPC / EAN / JAN (with addition), Telepen, MSI/Plessey, UK/Plessey, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korea Post, Dutch KIX Post, Posi LAPA 4 State Code |
| 2D code types | Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix |
| Stacked code types | PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Type of fieldbus integration | Optional, over external connection module CDF600-2 |
| PROFINET | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | PROFINET Single Port, PROFINET Dual Port |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Serial | â , RS-232 |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Optical indicators | 2Â LEDs (operational status, good read) |
| Acoustic indicators | Beeper, can be switched off |
| Vibration | Yes |
| Configuration software | IDM Setup Tool |
Ambient data
| Shock resistance | 50Â drops from 2Â m height on concrete |
|---|---|
| Ambient operating temperature | â20 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Ambient light immunity | 100,000Â lx |
General notes
| Note | A connecting cable and possibly a power supply unit are still required for commissioning.Not free of paint wetting impairment substances. |
|---|
Classifications
| ECLASS 5.0 | 27280101 |
|---|---|
| ECLASS 5.1.4 | 27280101 |
| ECLASS 6.0 | 27280101 |
| ECLASS 6.2 | 27280101 |
| ECLASS 7.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 8.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 10.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
