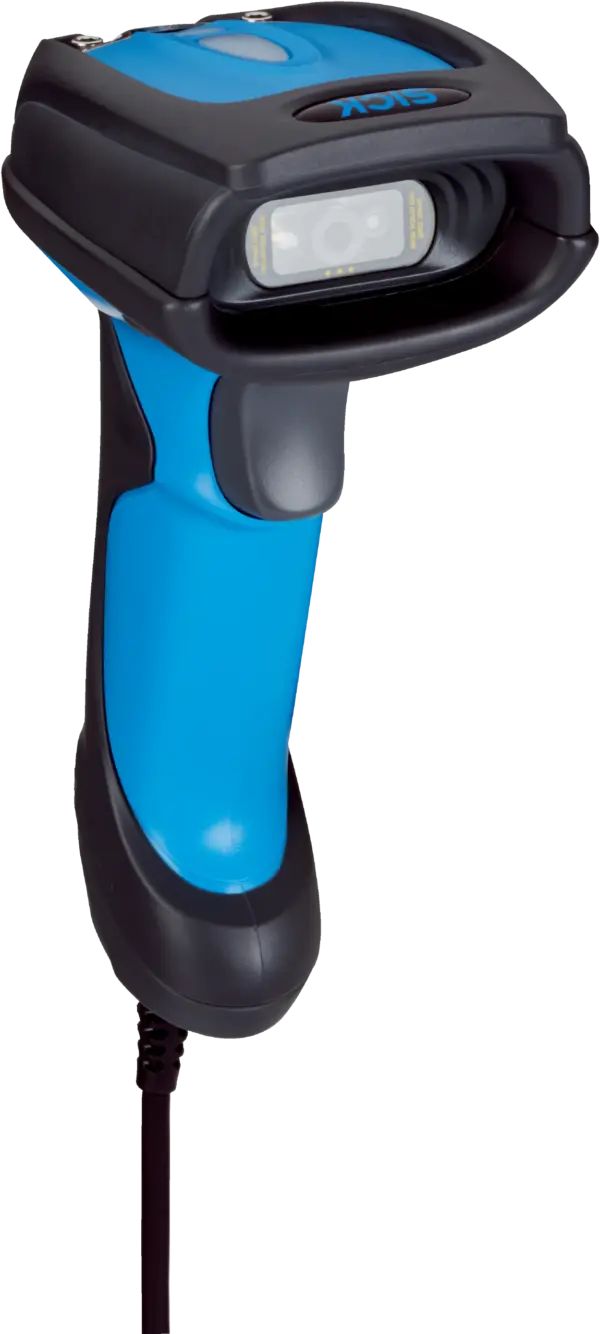

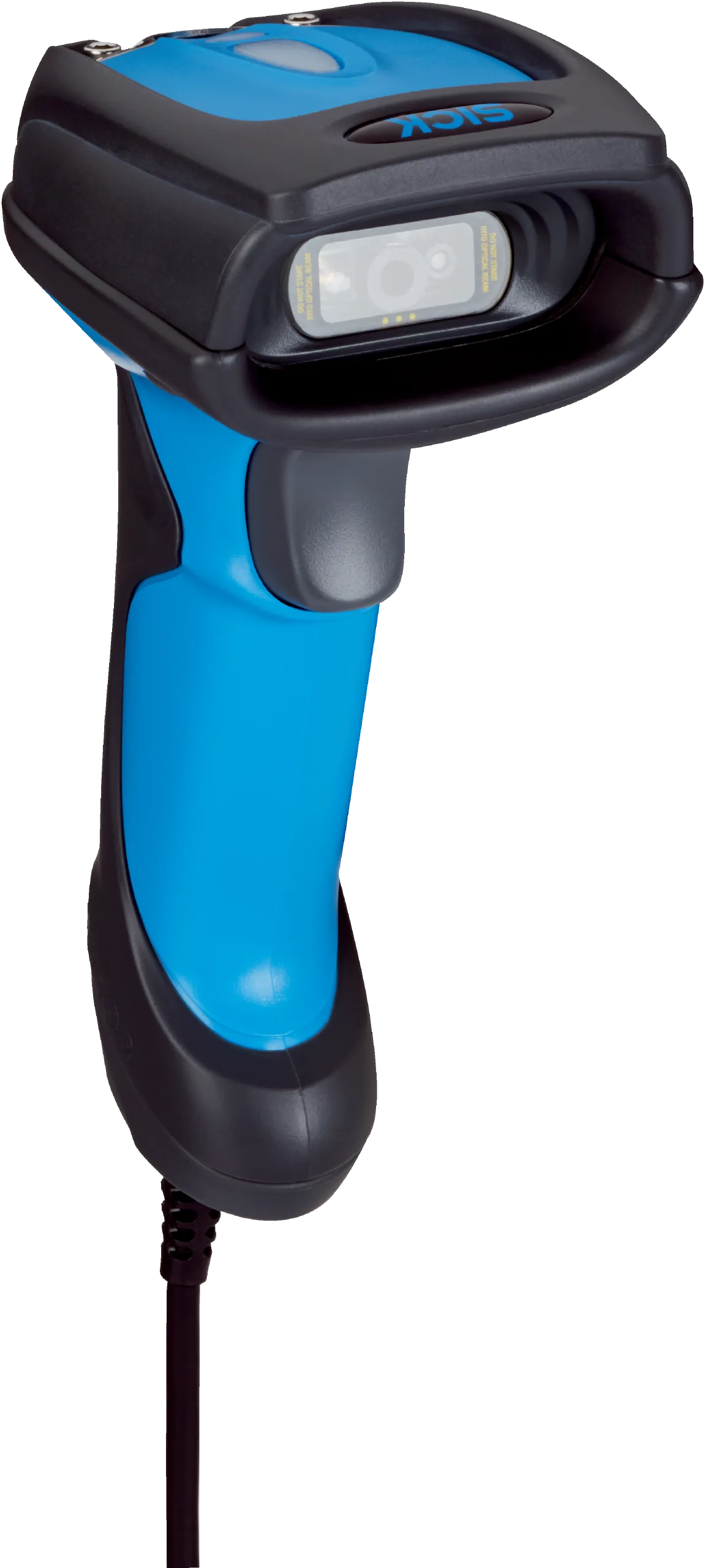

Sick IDM260-411S CDF600 EtherCAT Set
Mobile handheld scanners | IDM | IDM260-411S CDF600 EtherCAT Set | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm … 400 mm | Application: Industrial application | Sc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mobile handheld scanners | IDM | IDM260-411S CDF600 EtherCAT Set | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm … 400 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP | Ambient operating temperature: –20 °C … +50 °C | Code resolution: ≥ 0.07 mm≥ 0.13 mm
Specification
Features
| Application | Industrial application |
|---|---|
| Description | The IDM260-411S CDF600 EtherCAT Kit is the ideal solution for industrial applications that require reliable and efficient barcode reading. This kit includes the powerful IDM260-411S cable-bound mobile handheld scanner and the CDF600 EtherCAT module, which enables seamless integration into existing EtherCAT networks. The kit also includes the connecting cables between the mobile handheld scanner and the CDF600. |
| Scanner design | Cable connection variant |
| Sensor resolution | 1,280 px x 800 px |
| Light source | LED, Visible, Red, 660Â nm |
| Alignment aid | Laser, Red, 630Â nm |
| Laser class | 1Â (EN/IECÂ 60825-1:2014) |
| Reading distance | 30 mm ... 400 mm |
| Code resolution | ⥠0.07 mm 1)⥠0.13 mm 2) |
Mechanics/electronics
| Supply voltage | 5 V DC, ± 10 % |
|---|---|
| Current consumption | Operation (vibration deactivated): 395Â mAOperation (vibration activated): 420Â mAStandby: 220Â mA |
| Housing color | Blue, gray |
| Enclosure rating | IP65 |
| Weight | 208Â g, without cable |
| Dimensions (L x W x H) | 104 mm x 76.3 mm x 176 mm |
| MTBF | 100,000Â h |
Performance
| Readable code structures | 1D codes, 2D codes, Stacked |
|---|---|
| Bar code types | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard and Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC / EAN / JAN, UPC / EAN / JAN (with addition), Telepen, MSI/Plessey, UK/Plessey, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korea Post, Dutch KIX Post, Posi LAPA 4 State Code |
| 2D code types | Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix |
| Stacked code types | PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Type of fieldbus integration | Optional, over external connection module CDF600-2 |
| PROFINET | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | PROFINET Single Port, PROFINET Dual Port |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Serial | â , RS-232 |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Optical indicators | 2Â LEDs (operational status, good read) |
| Acoustic indicators | Beeper, can be switched off |
| Vibration | Yes |
| Configuration software | IDM Setup Tool |
Ambient data
| Shock resistance | 50Â drops from 2Â m height on concrete |
|---|---|
| Ambient operating temperature | â20 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Ambient light immunity | 100,000Â lx |
General notes
| Note | A connecting cable and possibly a power supply unit are still required for commissioning.Not free of paint wetting impairment substances. |
|---|
Classifications
| ECLASS 5.0 | 27280101 |
|---|---|
| ECLASS 5.1.4 | 27280101 |
| ECLASS 6.0 | 27280101 |
| ECLASS 6.2 | 27280101 |
| ECLASS 7.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 8.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 10.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
