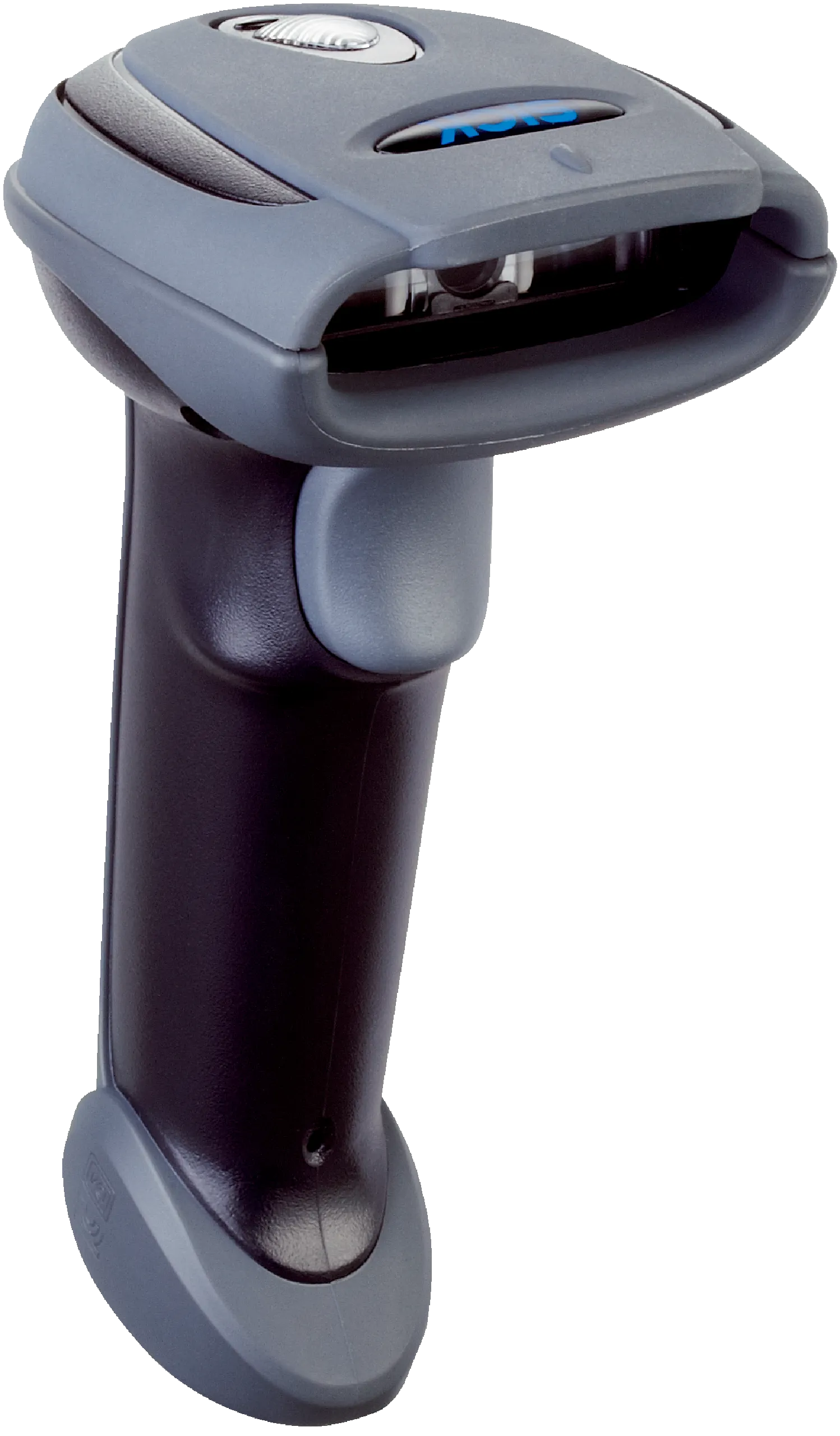

Sick IDM141E-411S
Mobile handheld scanners | IDM | IDM141E-411S | Readable code structures: 1D codes, Stacked | Reading distance: 20 mm … 850 mm | Application: Standard application | Scanner design: Wireless variant…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mobile handheld scanners | IDM | IDM141E-411S | Readable code structures: 1D codes, Stacked | Reading distance: 20 mm … 850 mm | Application: Standard application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –10 °C … +50 °C | Code resolution: ≥ 0.076 mm
Specification
Features
| Application | Standard application |
|---|---|
| Description | The cable-free IDM141E-411S incl. UltraCap⢠supercapacitor serves as the batteryless voltage supply. The UltraCap⢠supercapacitor is characterized by its long service life and thereby lowers the operating costs of the mobile handheld scanner. At the same time, it produces less electronic waste than battery-operated devices. The cable-free IDM141E-411S incl. UltraCap⢠supercapacitor is not a hazardous good and is therefore unproblematic to ship. Moreover, the supercapacitor is easy to replace. |
| Version | Standard Range |
| Scanner design | Wireless variant |
| Light source | LED, Visible, Red, 630Â nm |
| Reading distance | 20 mm ... 850 mm |
| Scanning frequency | ⤠500 Hz |
| Code resolution | ⥠0.076 mm |
Mechanics/electronics
| Supply voltage | 3.7Â VÂ DCÂ ... 5Â VÂ 1) |
|---|---|
| Current consumption | Operation: 180Â mAStandby: 80Â mA |
| Housing color | Black/gray |
| Enclosure rating | IP52 |
| Weight | 208 g, Incl. rechargeable battery (UltraCapâ¢) |
| Dimensions (L x W x H) | 97.8 mm x 70.5 mm x 156.2 mm |
Performance
| Readable code structures | 1D codes, Stacked |
|---|---|
| Bar code types | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard and Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC / EAN / JAN, UPC / EAN / JAN (with addition), Telepen, MSI/Plessey, UK/Plessey, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korea Post, Dutch KIX Post, Posi LAPA 4 State Code |
| Stacked code types | PDF417, MicroPDF417, Composite Code |
| Battery power | UltraCapâ¢: Over 4,200 scans when fully charged |
| Code buffer | 80,000Â Codes (EAN) |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Type of fieldbus integration | Optional, over external connection module CDF600-2 |
| PROFINET | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | PROFINET Single Port, PROFINET Dual Port |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Serial | â , RS-232 TTL |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| USB | â |
| Function | Keyboard wedge, COM-Port emulation |
| Bluetooth | â |
| Remark | BluetoothTM V4.0, 2.402Â ... 2.4830Â GHz |
| Function | Wireless operating range up to 100Â m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station |
| Optical indicators | 2Â LEDs (good read, charge of battery , radio connection status) |
| Acoustic indicators | Beeper, can be switched off |
| Vibration | No |
| Configuration software | IDM Setup Tool |
Ambient data
| Shock resistance | 25 drops from 1.8 m height on concrete |
|---|---|
| Ambient operating temperature | â10 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | ± 95 %, Non-condensing |
| Ambient light immunity | 100,000Â lx |
General notes
| Items supplied | The rechargeable battery is included with delivery |
|---|---|
| Note | A base station, a connecting cable, and possibly also a power supply unit are required for commissioning.Not free of paint wetting impairment substances. |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Dangerous Goods Certificate Capacitor | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| Bluetooth | â |
Classifications
| ECLASS 5.0 | 27280101 |
|---|---|
| ECLASS 5.1.4 | 27280101 |
| ECLASS 6.0 | 27280101 |
| ECLASS 6.2 | 27280101 |
| ECLASS 7.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 8.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 10.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
