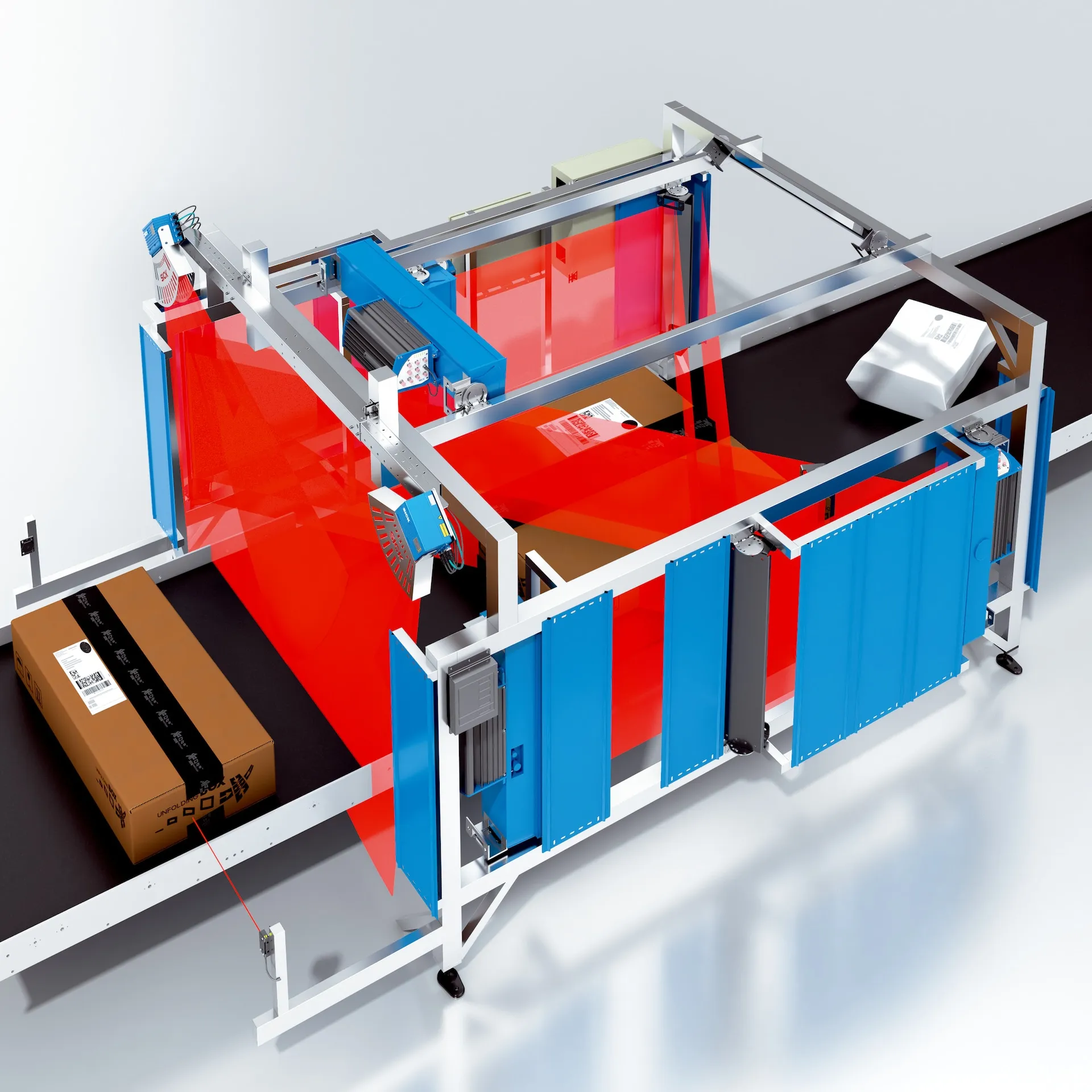

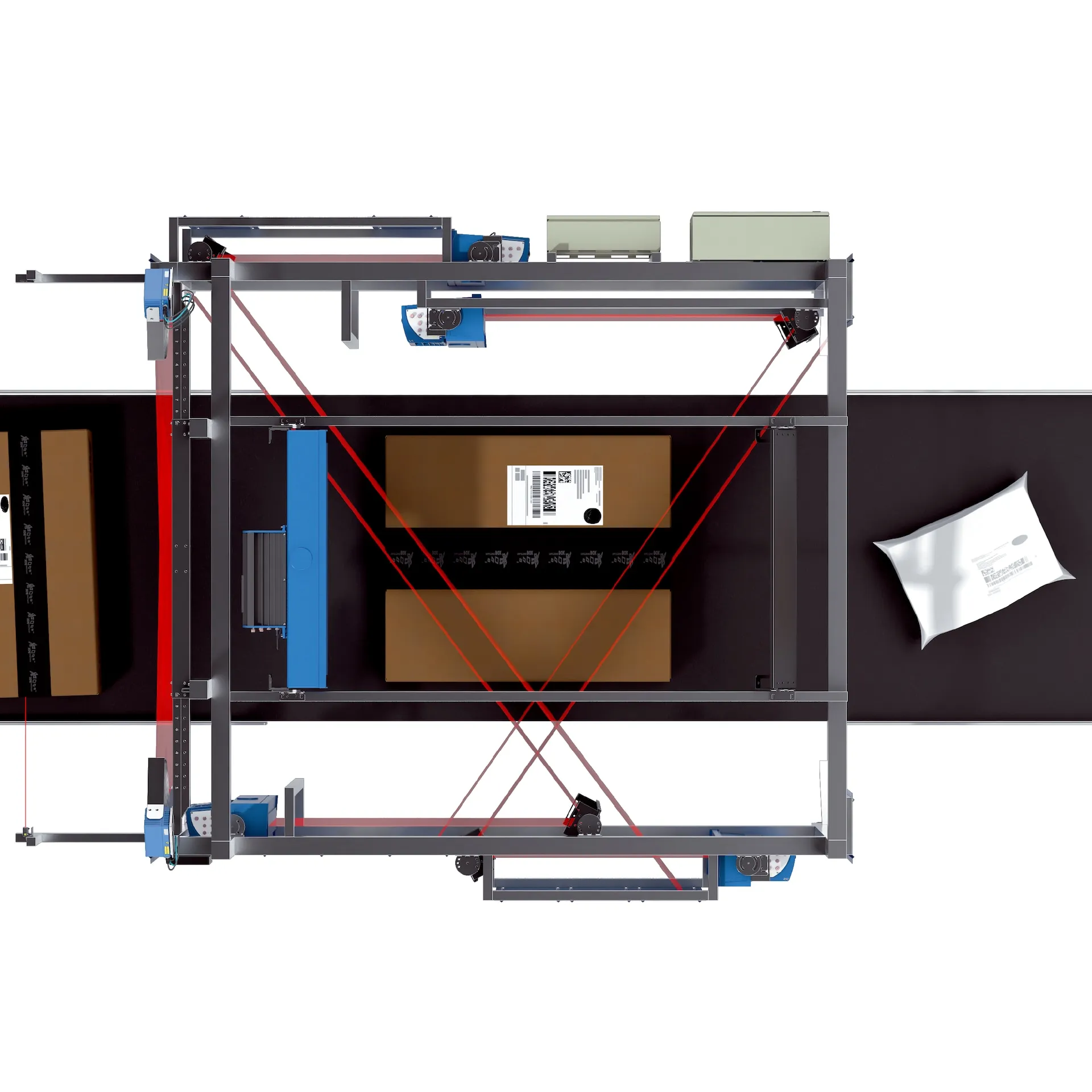

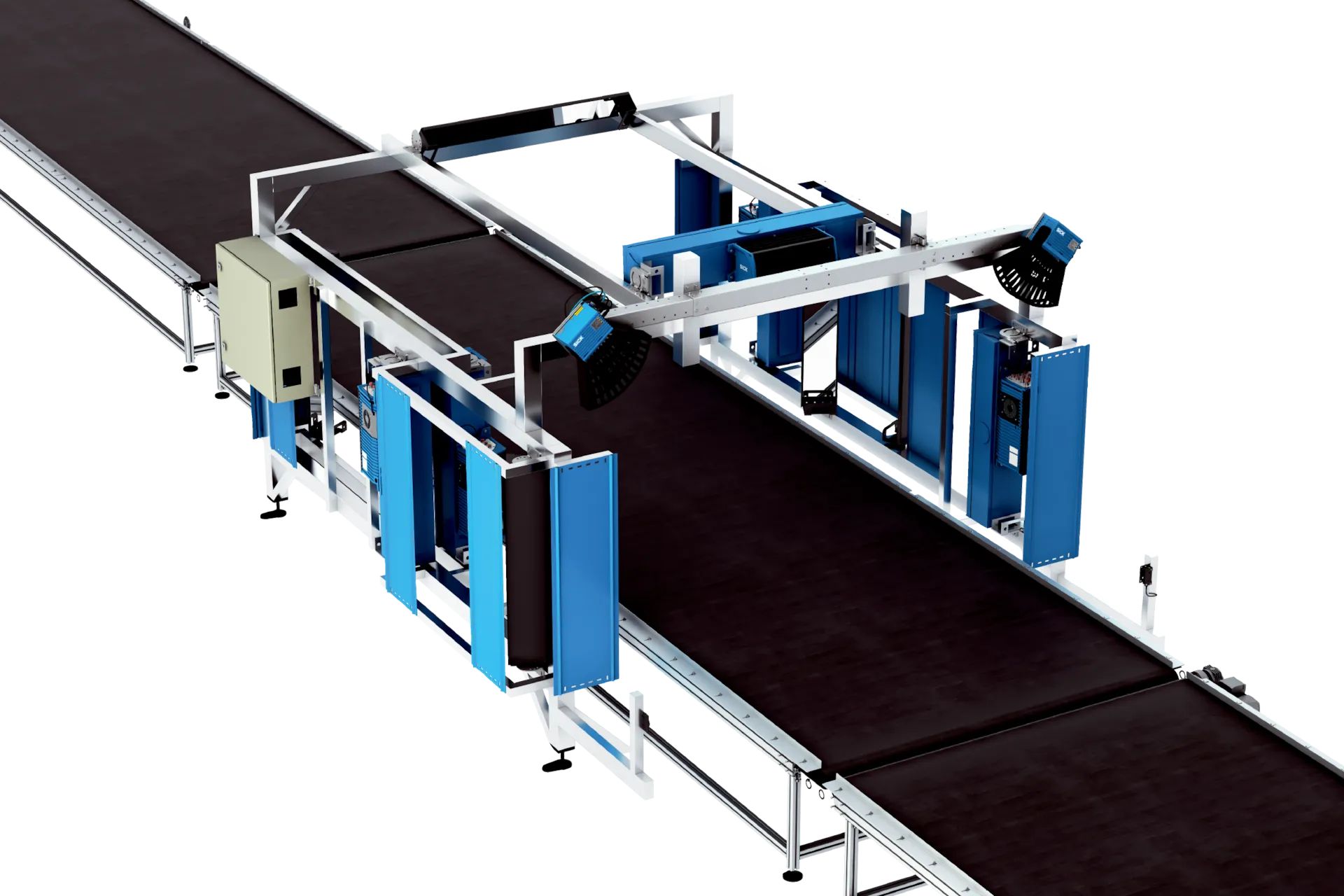

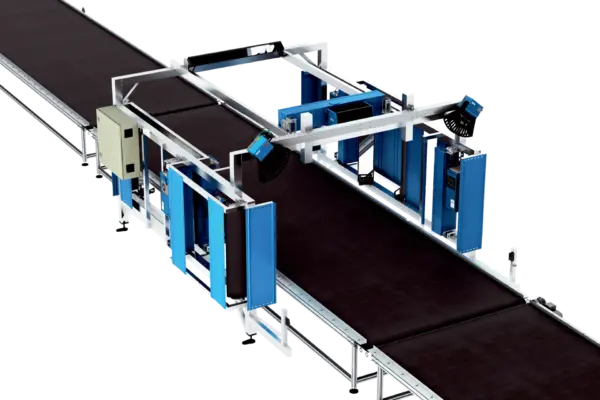

Sick ICR890-4 12K Core
Track and trace systems | ICR Identification System | ICR890-4 12K Core | Sensor resolution: 12,288 px | Read field width: 1,600 mm | Conveyor type: Belt conveyor, Cross-belt sorter, Roller conveyor,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Track and trace systems | ICR Identification System | ICR890-4 12K Core | Sensor resolution: 12,288 px | Read field width: 1,600 mm | Conveyor type: Belt conveyor, Cross-belt sorter, Roller conveyor, Tilt-tray sorter, others on request | Transport speed: 0 m/s … 4.5 m/s
Specification
Features
| Products by tasks | Identifying - 1D codeIdentifying - 2D code |
|---|---|
| Sensor | Quad-Line Sensor |
| Line camera sensor resolution | 12,288Â px |
| Covered conveyor width | 1,600Â mm |
| Illumination width | 750Â mm, 900Â mm, 1,100Â mm |
| Focus | Dynamic focus |
| MTBF | 120,000Â h |
| MTTR | <Â 10Â min |
| Image resolution | >Â 295Â dpi (at 4.3Â m/s) |
| Misalignment of the object | ± 15°, ± 45° |
| Conveyor type | Belt conveyorCross-belt sorterRoller conveyorTilt-tray sorterOthers on request |
| Object infeed and outfeed | Automatic |
Mechanics/electronics
| Trigger | SICK RAY26P-P01Â 1) |
|---|---|
| Encoder | SICK DFV60Â 2) |
| Power consumption | Depends on the configuration |
Performance
| Code types | 1D2D4-state |
|---|---|
| 1D code types | PDF417Code 39Code 128Code 32Code 93Postal codesGS1-128 / EAN 128UPC / GTIN / EAN |
| 2D code types | AztecMaxi-CodePDF417QR codeGS1 Data-MatrixData Matrix ECC200 |
| Transport speed | 0 m/s ... 4.5 m/s |
| Minimum object distance | 50Â mm |
| Number of objects per second | â¤Â 10 |
| Side-by-side | â |
| Touching objects | â |
| Additional features | Single 2D/3D Vision Solutions |
Interfaces
| Serial | â |
|---|---|
| Protocol | RS-232 |
| CAN bus | â (2) |
| PROFIBUS DP | â |
| Ethernet | â (3) |
| Protocol | TCP/IP |
Ambient data
| Bar code print contrast (PCS) | â¤Â 40 % |
|---|---|
| Ambient operating temperature | â10 °C ... +50 °C |
| Ambient temperature, storage | â20 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Ambient light immunity | â¤Â 2,000 lx 1) |
Classifications
| ECLASS 5.0 | 27280103 |
|---|---|
| ECLASS 5.1.4 | 27280103 |
| ECLASS 6.0 | 27280103 |
| ECLASS 6.2 | 27280103 |
| ECLASS 7.0 | 27280103 |
| ECLASS 8.0 | 27280103 |
| ECLASS 8.1 | 27280103 |
| ECLASS 9.0 | 27280103 |
| ECLASS 10.0 | 27280103 |
| ECLASS 11.0 | 27280103 |
| ECLASS 12.0 | 2728103 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
