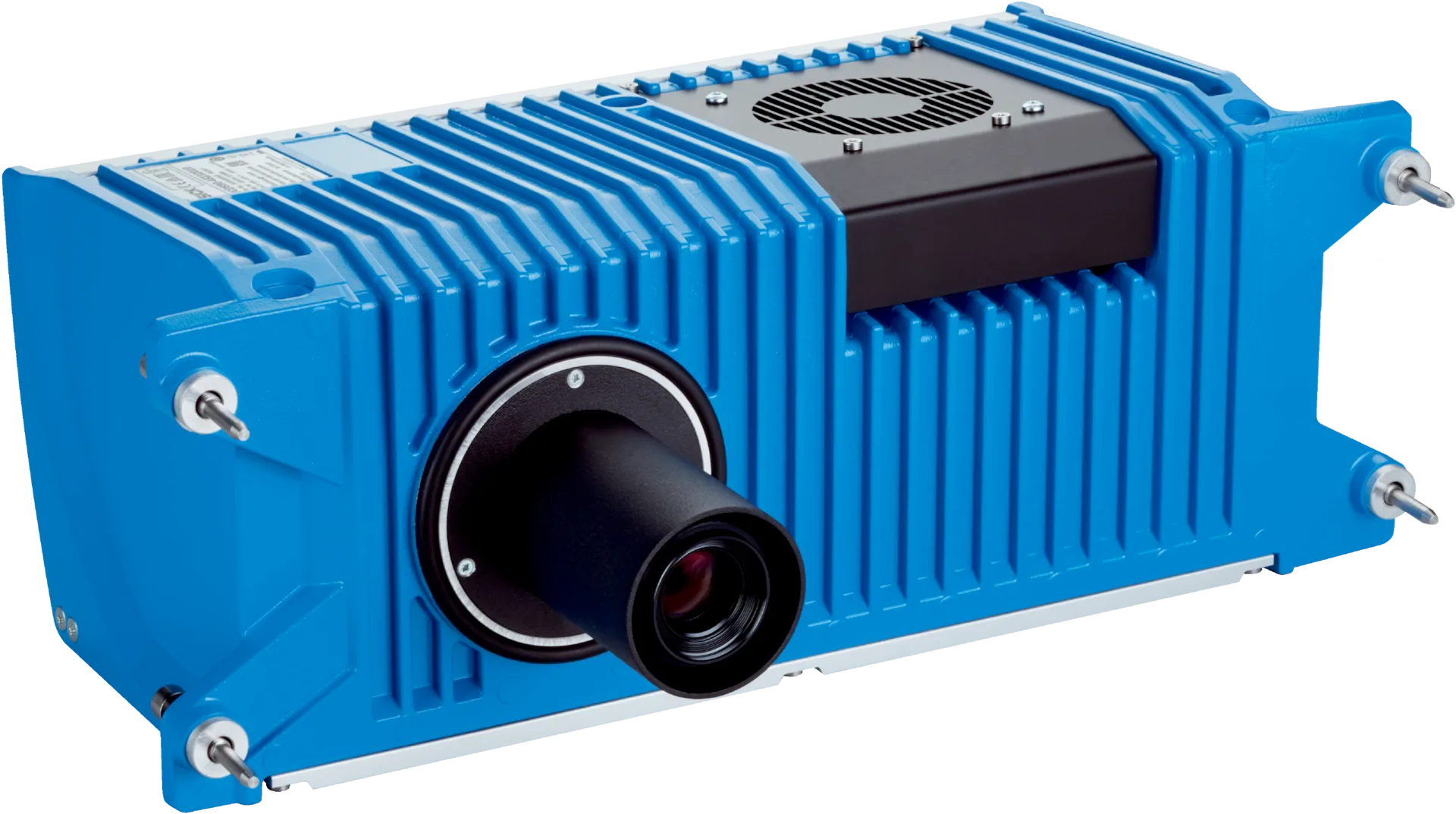

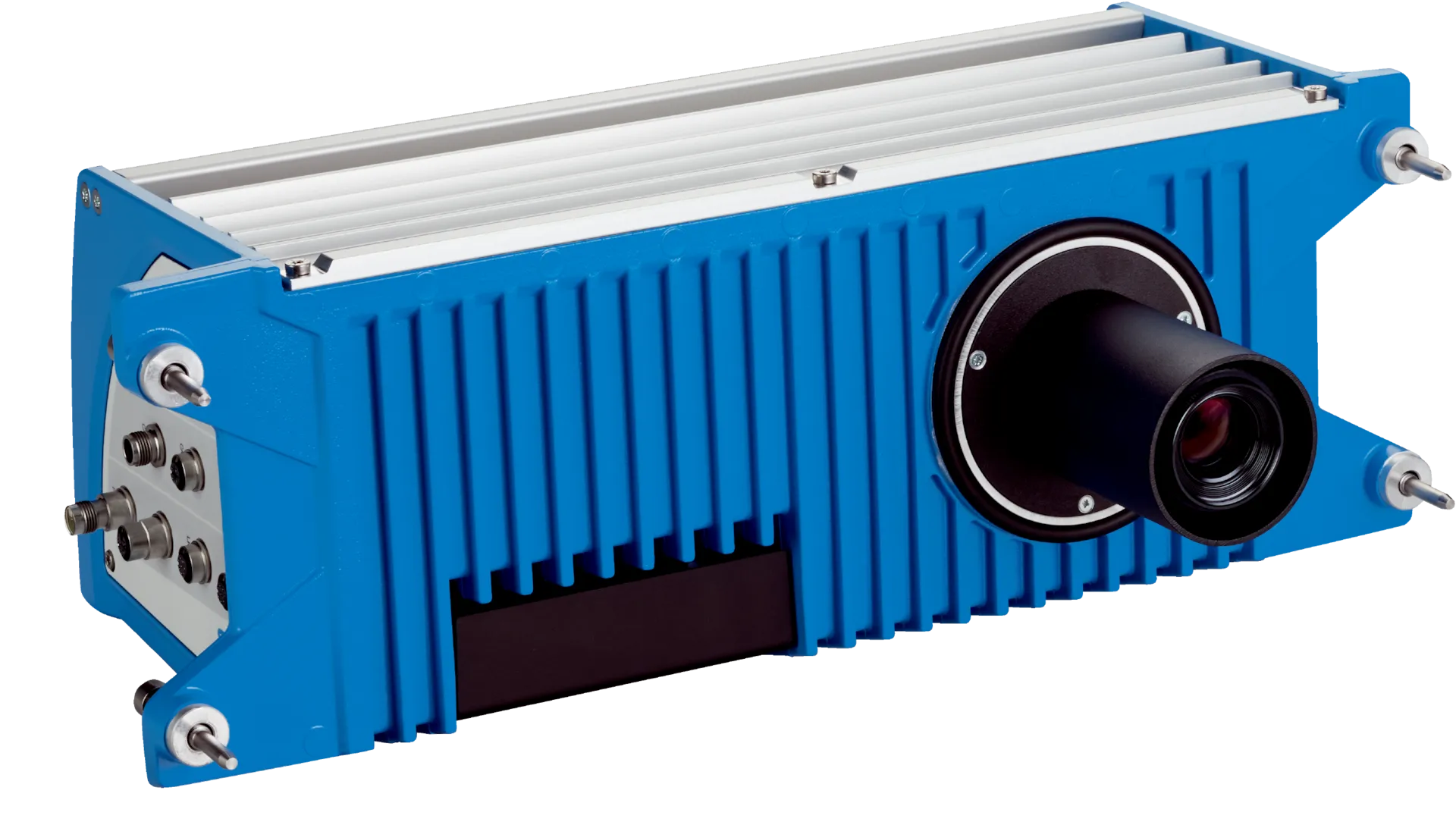

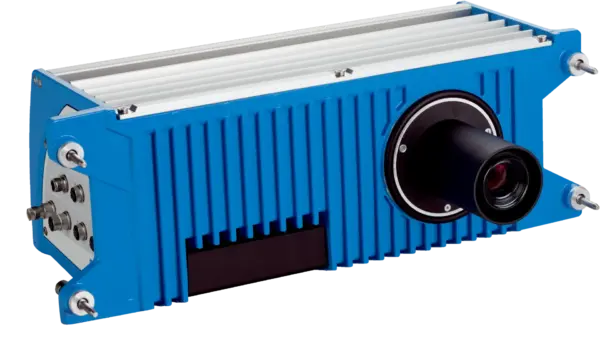

Sick ICD890-44342031

Image-based code readers | ICD8xx | ICD890-44342031 | Optical focus: Dynamic focus control, Fixed focus | Sensor resolution: 8,192 px (200 dpi, Standard resolution) | Focal length: 95 mm | Communicati…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Image-based code readers | ICD8xx | ICD890-44342031 | Optical focus: Dynamic focus control, Fixed focus | Sensor resolution: 8,192 px (200 dpi, Standard resolution) | Focal length: 95 mm | Communication interface: Ethernet, CAN

Specification

Features

ApplicationIndoor area
Optical focusDynamic focus controlFixed focus
SensorCMOS line sensor monochrome
Sensor resolution8,192Â px (200Â dpi, Standard resolution)
Line frequencyMax. 25 kHz
LensIntegrated
Focal length95Â mm
Reading distance1,550 mm ... 3,600 mm 1)
Field of view1,200Â mm (170Â dpi)1,035Â mm (200Â dpi)
Code resolution≥ 0.1 mm
Operating modeForward, backward, start/stop
Working range1,550 mm ... 3,600 mm 1)
Further functionsExtended analysis of code quality, empty tote detection, 2D dimensioning (image-based calculation of object dimensions)

Mechanics/electronics

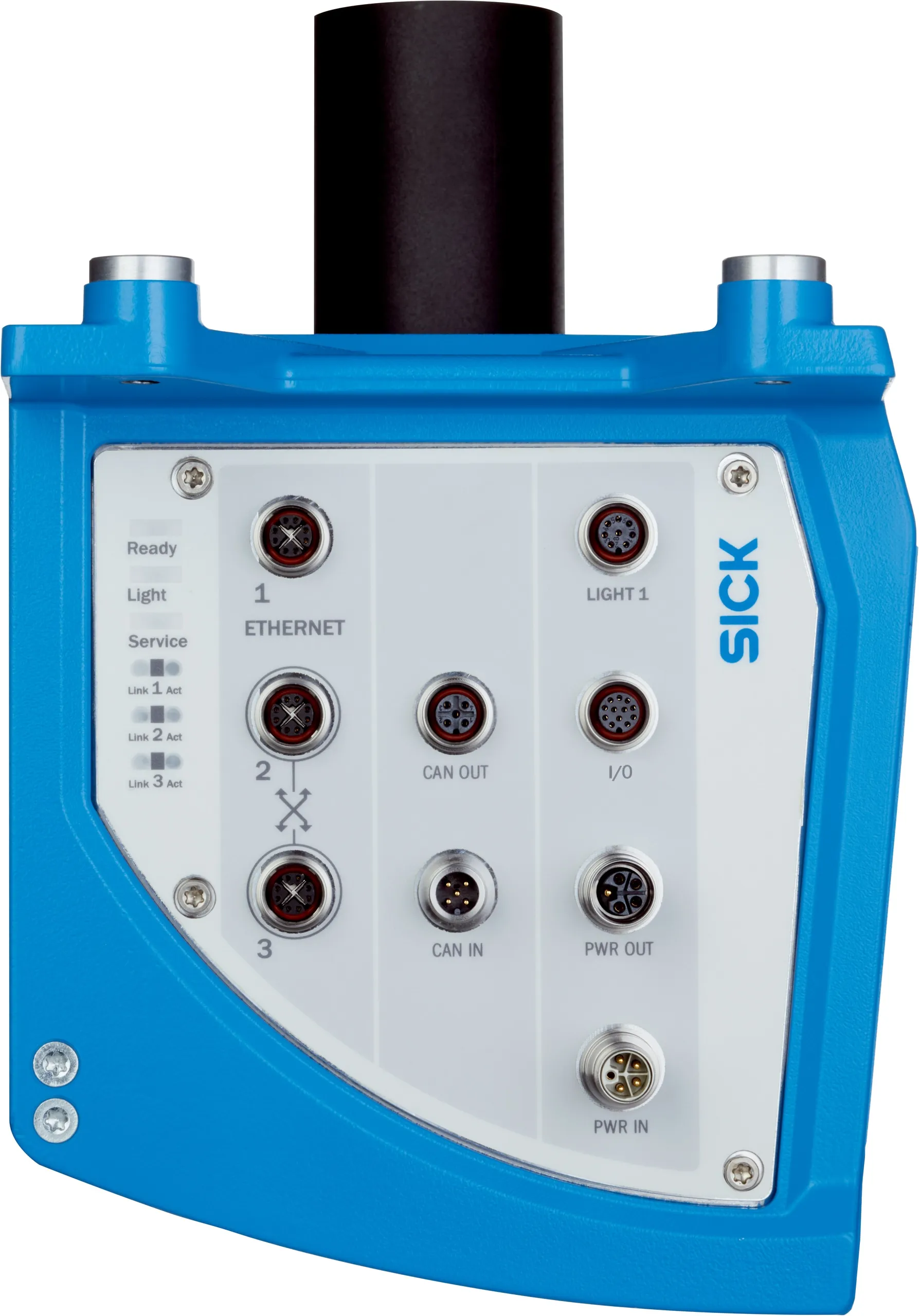

Connection type3Â x M12, 8-pin female connector, X-coded, CAT 6A (Ethernet 1Â ... 3)1Â x M12, 12-pin female connector, A-coded (I/O)1Â x M12, 5-pin female connector (CAN Out)1Â x M12, 5-pin male connector, A-coded (CAN In)1Â x M12, 8-pin female connector (Light 1)1Â x M12, 5-pin female connector, L-coded (PWR Out)1Â x M12, 5-pin male connector, L-coded (PWR In)
Supply voltage24 V DC, –10 % +20 %
Power consumptionTyp. 50 W, 55 W
BatteryType: TL-2450 cell (1/10C cell), soldered, non-rechargeableChemical system: Lithium thionyl chloride (Li-SOCl2)Lithium quantity: 0.2Â g
Current consumption10Â A
Housing materialAluminum die cast
Housing colorLight blue (RAL 5012)
Enclosure ratingIP65 (ENÂ 60529:1991-10 / A2:2000-02 / A3:2013)
Protection classIII (ENÂ 61140)
Electrical safetyENÂ 61010-1:2010-10
WeightApprox. 11 kg
Dimensions (L x W x H)486.6 mm x 300 mm x 179 mm
MTBF120,000Â h
MTTR<Â 10Â min

Performance

Readable code structures1D codes, 2D codes, Stacked
Bar code typesMin. one 1D code and max. one 2D code simultaneously., GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, postal codes
2D code typesMin. one 1D code and max. one 2D code simultaneously., Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
Skew angle≤ 75°
Transport speed≤ 4.5 m/s
Minimum object distance≥ 50 mm
Image typeJPEG, TIFF, BMP
Image outputUp to 4Â (s)FTP clients, AWS S3 client, FTP Server, Samba Server, REST Server

Interfaces

Ethernet✔ (3) , TCP/IP
FunctionFTP, real-time image output
Data transmission rate1Â Gbit/s
CAN✔ (2)
RemarkCSN (SICK CAN Sensor Network)
Function1Â x CAN In, 1Â x CAN Out
Data transmission rate20 kbit/s ... 500 Mbit/s
Optical indicators3Â LED (device status displays)3Â double LED (ethernet status displays)
Configuration softwareSOPAS ET

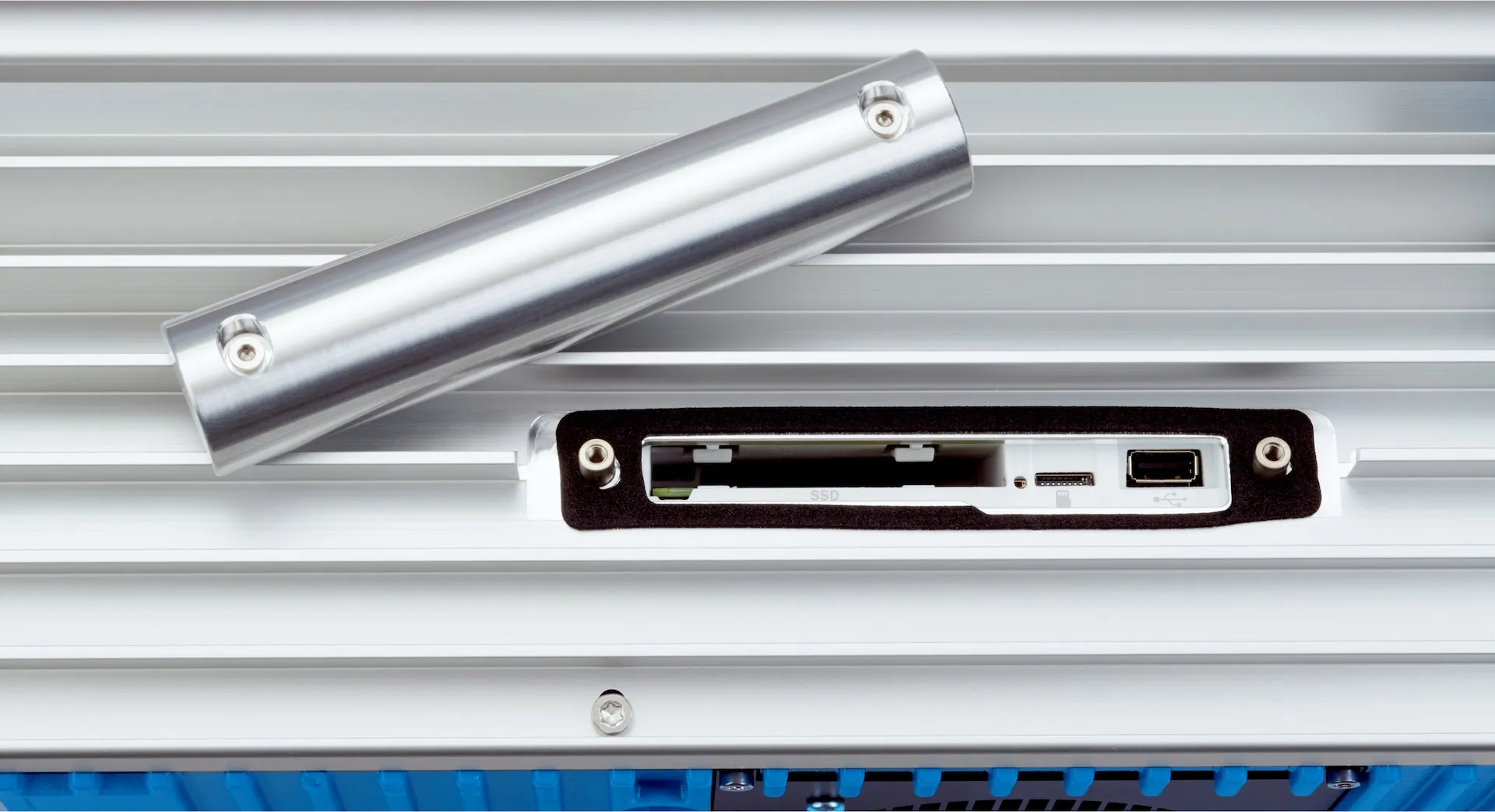

Memory card1Â x 2.5Â inch SSD (image and data logging), 1Â x microSD memory card (configuration data back-up)

Ambient data

Electromagnetic compatibility (EMC)IECÂ 61000-6-4:2018 / IECÂ 61000-6-2:2019
Vibration resistanceIECÂ 60068-2-6:2007-12
Shock resistanceIECÂ 60068-2-27:2008-02
Ambient operating temperature–10 °C ... +50 °C
Storage temperature–20 °C ... +70 °C
Permissible relative humidity95Â %, Non-condensing
Ambient light immunity2,000Â lx, on code
Contamination rating2Â (ENÂ 61010-1)
Altitude (above sea level)<Â 2,000Â m

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
BIS registration✔
UN38.3 Test Summary Report✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027280103
ECLASS 5.1.427280103
ECLASS 6.027280103
ECLASS 6.227280103
ECLASS 7.027280103
ECLASS 8.027280103
ECLASS 8.127280103
ECLASS 9.027280103
ECLASS 10.027280103
ECLASS 11.027280103
ECLASS 12.027280103
ETIM 5.0EC002550
ETIM 6.0EC002550
ETIM 7.0EC002999
ETIM 8.0EC002999
UNSPSC 16.090143211701
