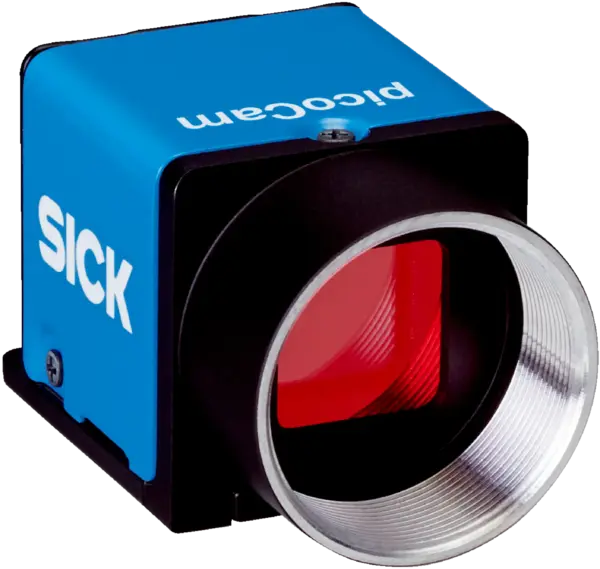

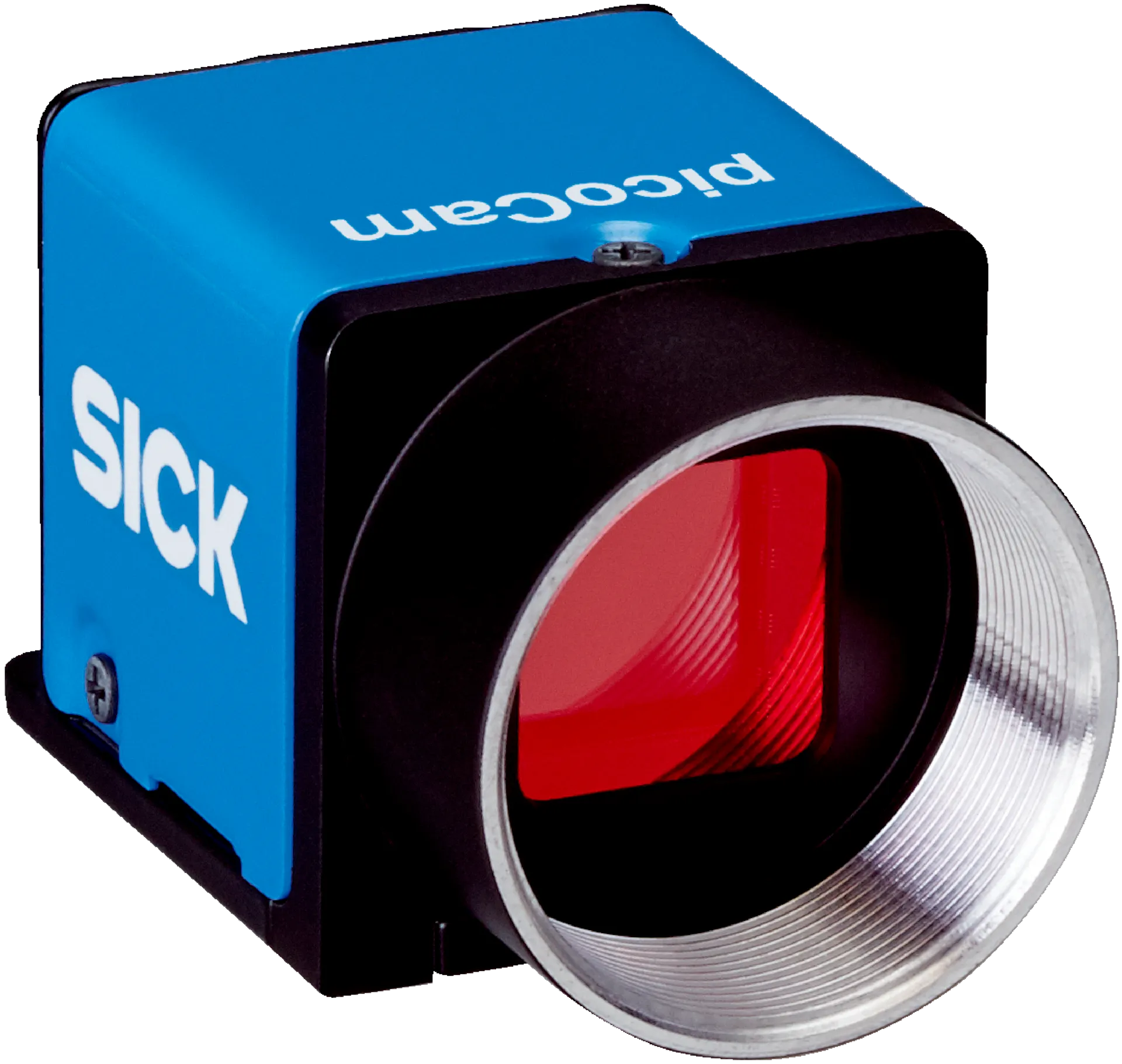

Sick I2D301C-2RCA11
Machine vision | picoCam2 | I2D301C-2RCA11 | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Sensor resolution: 1,456 px x 1,088 px (1….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | picoCam2 | I2D301C-2RCA11 | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Sensor resolution: 1,456 px x 1,088 px (1.58 Mpixel) | Sensor: CMOS Color | Sensor used: Sony IMX273
Specification
Features
| Technology | 2D snapshot |
|---|---|
| Streaming | ✔ |
| Image sensor | CMOS Color |
| Sensor used | Sony IMX273 |
| Shutter technology | Global-Shutter |
| Illumination | To be ordered separately as accessories |
| Further functions | Line mode, region of interest, long exposure |

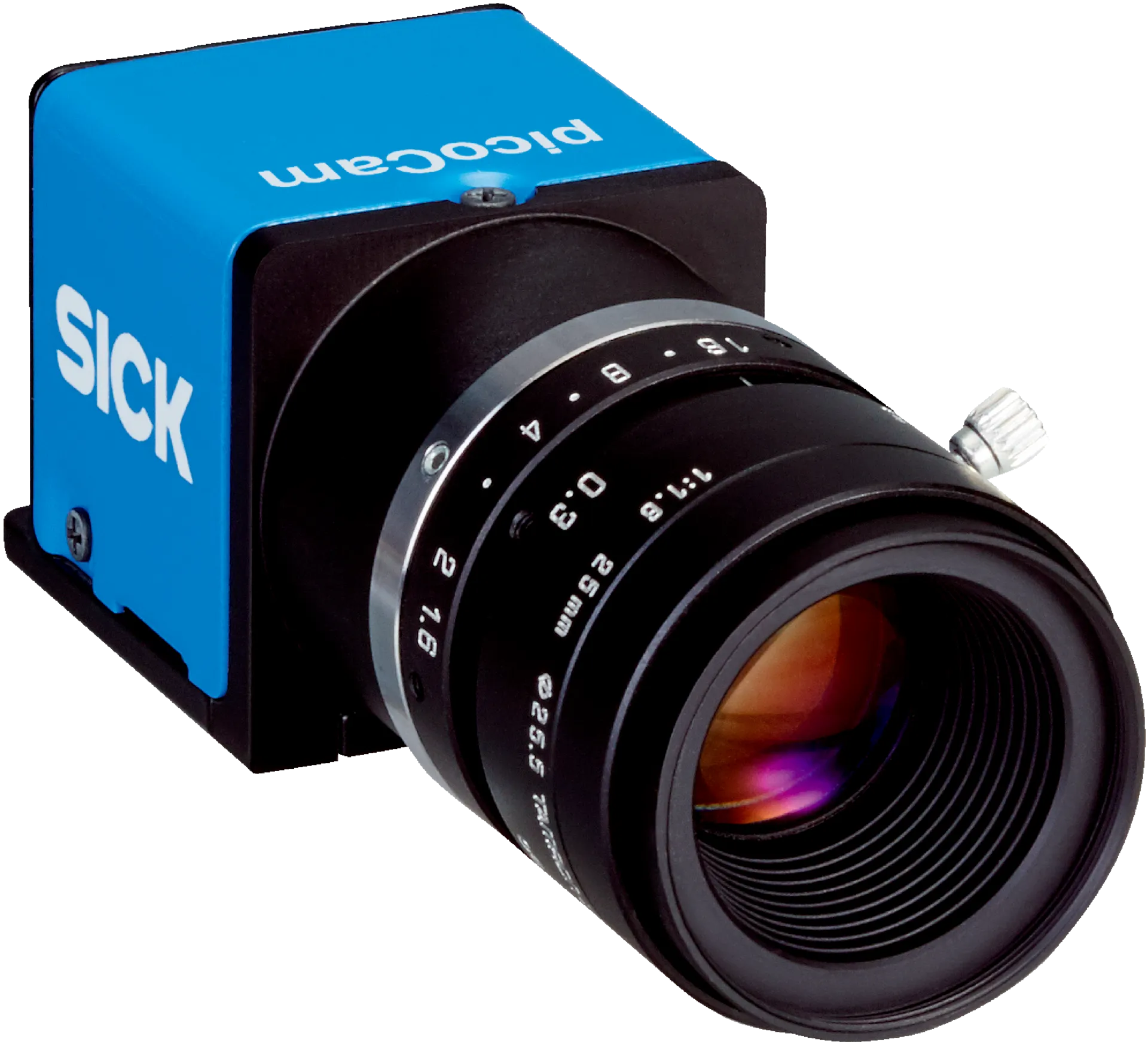

| Lens | C-mount |
| Optical format | 1/3" |
| Note | To be ordered separately as accessories |
| Task | Measuring - Dimension, contour and volumeMonitoring and controlling - QualityIdentifying - PatternIdentifying - ClassifyingIdentifying - Sorting |
Mechanics/electronics
| Connection type | 8-pin Hirose male connector |
|---|---|
| Supply voltage | 12Â VÂ ... 24Â VÂ 1) |
| Power consumption | ≤ 3.1 W |
| Enclosure rating | IP30 |
| Weight | 51Â g |
| Dimensions (L x W x H) | 29 mm x 29 mm x 29 mm |
Performance
| Bit depth | 12Â bit |
|---|---|
| Sensor resolution | 1,456 px x 1,088 px (1.58 Mpixel) |
| Pixel size | 3.45 µm x 3.45 µm |
| Sensor size | 5.023 mm x 3.754 mm |
| Scan/frame rate | 79Â fps, in freerun mode |
| Memory | 128Â MB |
Interfaces
| Ethernet | ✔ , UDP/IP |
|---|---|
| Remark | GigE Vision Standard |
| Data transmission rate | 1,000Â Mbit/s |
| Configuration software | SICK Vision Suite |
Ambient data
| Shock load | 80Â g, ENÂ 60068-2-27 (1995-03), ENÂ 60068-2-29 (1995-03) |
|---|---|
| Vibration load | 10 g, 30 Hz ... 500 Hz, EN 60068-2-6 (1996-05) |
| Ambient operating temperature | 0 °C ... +55 °C 1) |
| Storage temperature | –20 °C ... +60 °C 1) |
General notes
| Note | Not free of paint wetting impairment substances. |
|---|
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| GigE Vision | ✔ |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
