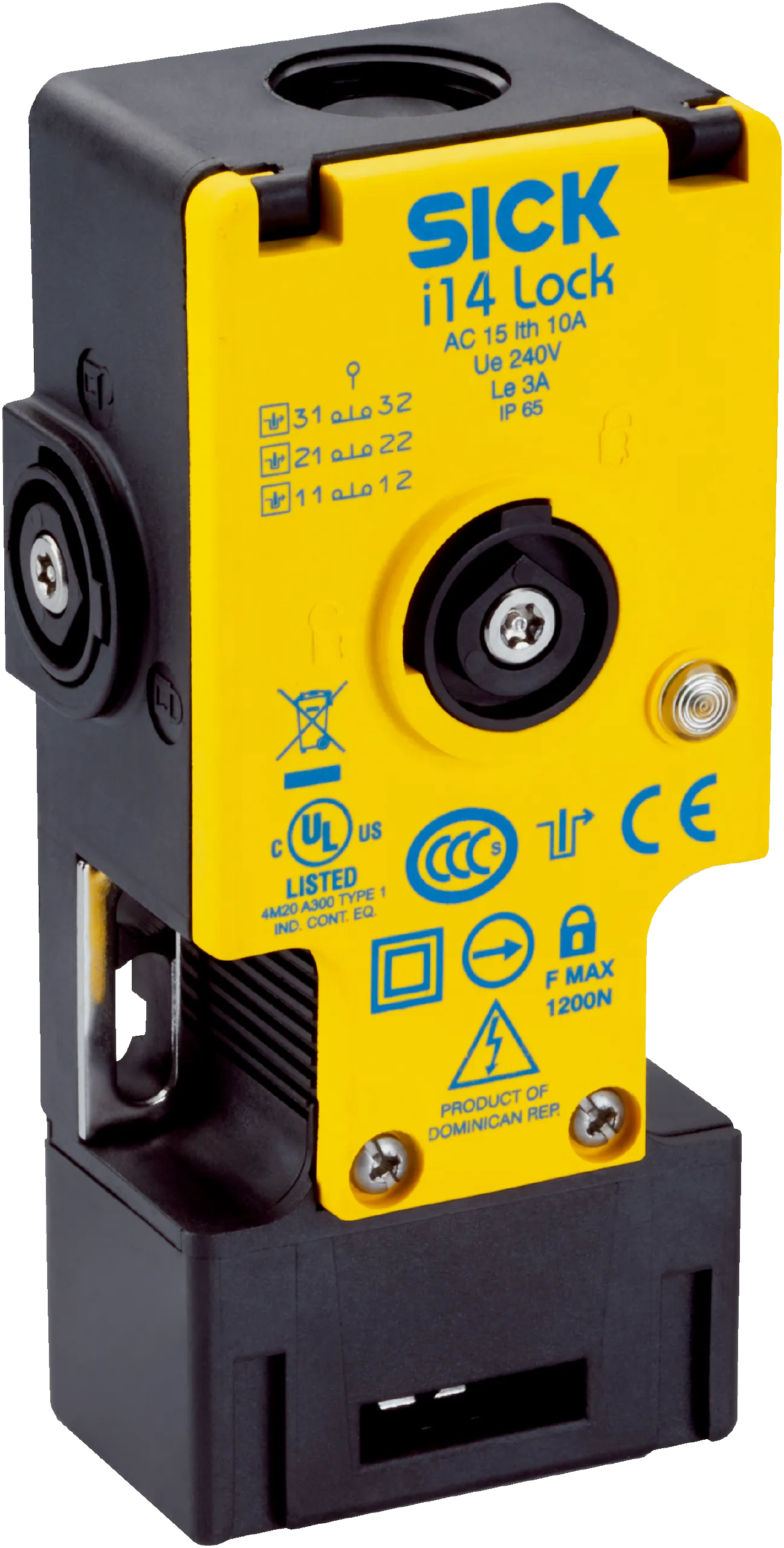

Sick i14-M0213 Lock
Safety switches | i14 Lock | i14-M0213 Lock | Locking principle: Power to release | Locking force FZh: 770 N | Connection type Detail: Cable gland, 1 x M20 | Safe series connection: None, only individ…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | i14 Lock | i14-M0213 Lock | Locking principle: Power to release | Locking force FZh: 770 N | Connection type Detail: Cable gland, 1 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 1 | Positive action N/C door monitoring contacts: 0
Specification
Features
| Sensor principle | Electro-mechanical |
|---|---|
| Locking principle | Power to release |
| Positive action N/C solenoid monitoring contacts | 2 |
| N/O solenoid monitoring contacts | 1 |
| Positive action N/C door monitoring contacts | 0 |
| N/O door monitoring contacts | 0 |
| N/C contact for door monitoring | 0 |
| Locking force Fmax | 1,000Â N (ENÂ ISOÂ 14119) |
| Locking force FZh | 770Â N (ENÂ ISOÂ 14119) |
| Actuation force | ⥠12 N |
| Retaining force | ⤠50 N 1) |
| Actuation frequency | ⤠3,600 /h |
| Actuation directions | 3 |
| Approach speed | ⤠10 m/min |
Safety-related parameters
| B10d parameter | 2 x 106 switching cycles (with small load) |
|---|---|
| Type | Type 2Â (ENÂ ISOÂ 14119) |
| Actuator coding level | Low coding level (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
|---|
Interfaces
| Connection type | Cable gland, 1 x M20 |
|---|---|
| Conductor cross section | ⤠1.5 mm² |
| Display elements | LEDs |
| Status display | â |
Electronics
| Switching principle | Slow action switching element |
|---|---|
| Usage category | AC-15/DC-13 (ENÂ 60947-5-1) |
| Rated operating current (voltage) | 3Â A (240Â VÂ AC)2Â A (24Â VÂ DC) |
| Rated insulation voltage Ui | 250Â V |
| Rated impulse withstand voltage Uimp | 2,500Â V |
| Type of output | Electro-mechanical contacts |
| Power consumption | â¤Â 7 W |
| Short-circuit protection | 3Â A gG |
| Switching voltage | ⥠5 V DC |
| Switching current (switching voltage) | 5Â mA (5Â VÂ DC) |
| Solenoid operating voltage | (20.4Â VÂ DCÂ ... 26.4Â VÂ DC) |
| Switch-on time of magnet | 100Â % |
| Locking principle | Power to release |
Mechanics
| Weight | 0.37Â kg |
|---|---|
| Housing material | Glass-fiber reinforced thermoplastic |
| Mechanical life | 1 x 106 switching cycles |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | â20 °C ... +60 °C |
| Storage temperature | â10 °C ... +60 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| cULus certificate | â |
| TÃV approval | â |
| TÃV approval annex | â |
Classifications
| ECLASS 5.0 | 27272603 |
|---|---|
| ECLASS 5.1.4 | 27272603 |
| ECLASS 6.0 | 27272603 |
| ECLASS 6.2 | 27272603 |
| ECLASS 7.0 | 27272603 |
| ECLASS 8.0 | 27272603 |
| ECLASS 8.1 | 27272603 |
| ECLASS 9.0 | 27272603 |
| ECLASS 10.0 | 27272603 |
| ECLASS 11.0 | 27272603 |
| ECLASS 12.0 | 27272603 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002593 |
| ETIM 7.0 | EC002593 |
| ETIM 8.0 | EC002593 |
| UNSPSC 16.0901 | 39122205 |
