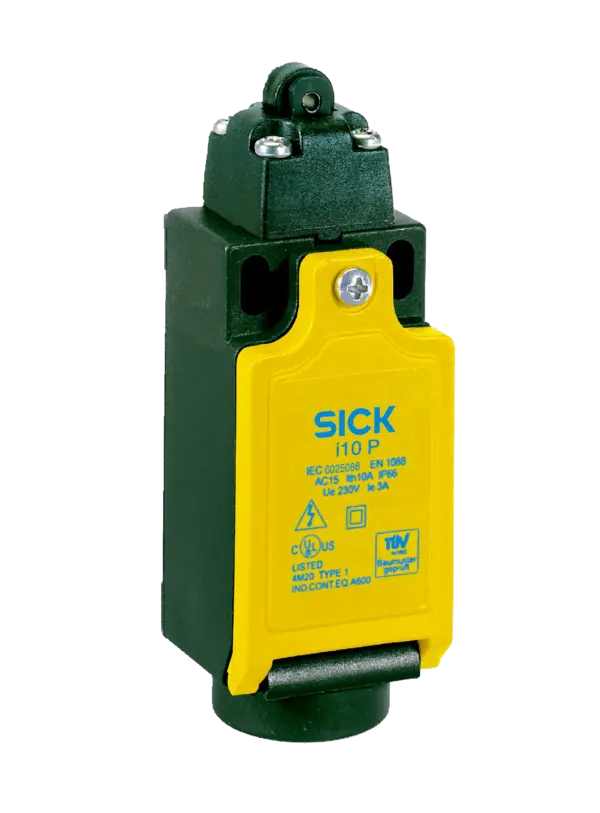

Sick i10-PA213
Safety switches | i10P | i10-PA213 | Actuating element type: Roller plunger | Positive action N/C contacts: 2 | N/O contacts: 1 | Housing material: Plastic
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | i10P | i10-PA213 | Actuating element type: Roller plunger | Positive action N/C contacts: 2 | N/O contacts: 1 | Housing material: Plastic
Specification
Features
| Positive action N/C contacts | 2 |
|---|---|
| N/O contacts | 1 |
| Actuation force | ≥ 6 N |
| Actuation frequency | ≤ 6,000 /h |
| Actuation directions | 4 |
| Approach speed | 0.1 m/min ... 15 m/min |
| Positive break travel | 3.3Â mm |
Safety-related parameters
| B10d parameter | 2 x 106 switching cycles (with small load) |
|---|---|
| Type | Type 1Â (ENÂ ISOÂ 14119) |
| Actuator coding level | Uncoded (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
|---|
Interfaces
| Connection type | Cable gland, 1 x M20 |
|---|---|
| Conductor cross section | ≤ 2.5 mm² |
Electronics
| Switching principle | Slow action switching element |
|---|---|
| Usage category | AC-15/DC-13 (IECÂ 60947-5-1) |
| Rated operating current (voltage) | 3Â A (240Â VÂ AC)3Â A (24Â VÂ DC) |
| Rated insulation voltage Ui | 250Â V |
| Rated impulse withstand voltage Uimp | 2,500Â VÂ AC |
| Short-circuit protection | F15 |
| Switching voltage | ≥ 5 V DC |
| Switching current (switching voltage) | 5Â mA (5Â VÂ DC) |
Mechanics
| Weight | 0.11Â kg |
|---|---|
| Housing material | Glass-fiber reinforced thermoplastic |
| Mechanical life | 10 x 106 switching cycles |
Ambient data
| Enclosure rating | IP66 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +80 °C |
| Storage temperature | –25 °C ... +80 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| cULus certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
Classifications
| ECLASS 5.0 | 27272601 |
|---|---|
| ECLASS 5.1.4 | 27272601 |
| ECLASS 6.0 | 27272601 |
| ECLASS 6.2 | 27272601 |
| ECLASS 7.0 | 27272601 |
| ECLASS 8.0 | 27272601 |
| ECLASS 8.1 | 27272601 |
| ECLASS 9.0 | 27272601 |
| ECLASS 10.0 | 27272601 |
| ECLASS 11.0 | 27272601 |
| ECLASS 12.0 | 27272601 |
| ETIM 5.0 | EC001829 |
| ETIM 6.0 | EC001829 |
| ETIM 7.0 | EC001829 |
| ETIM 8.0 | EC001829 |
| UNSPSC 16.0901 | 39122205 |
