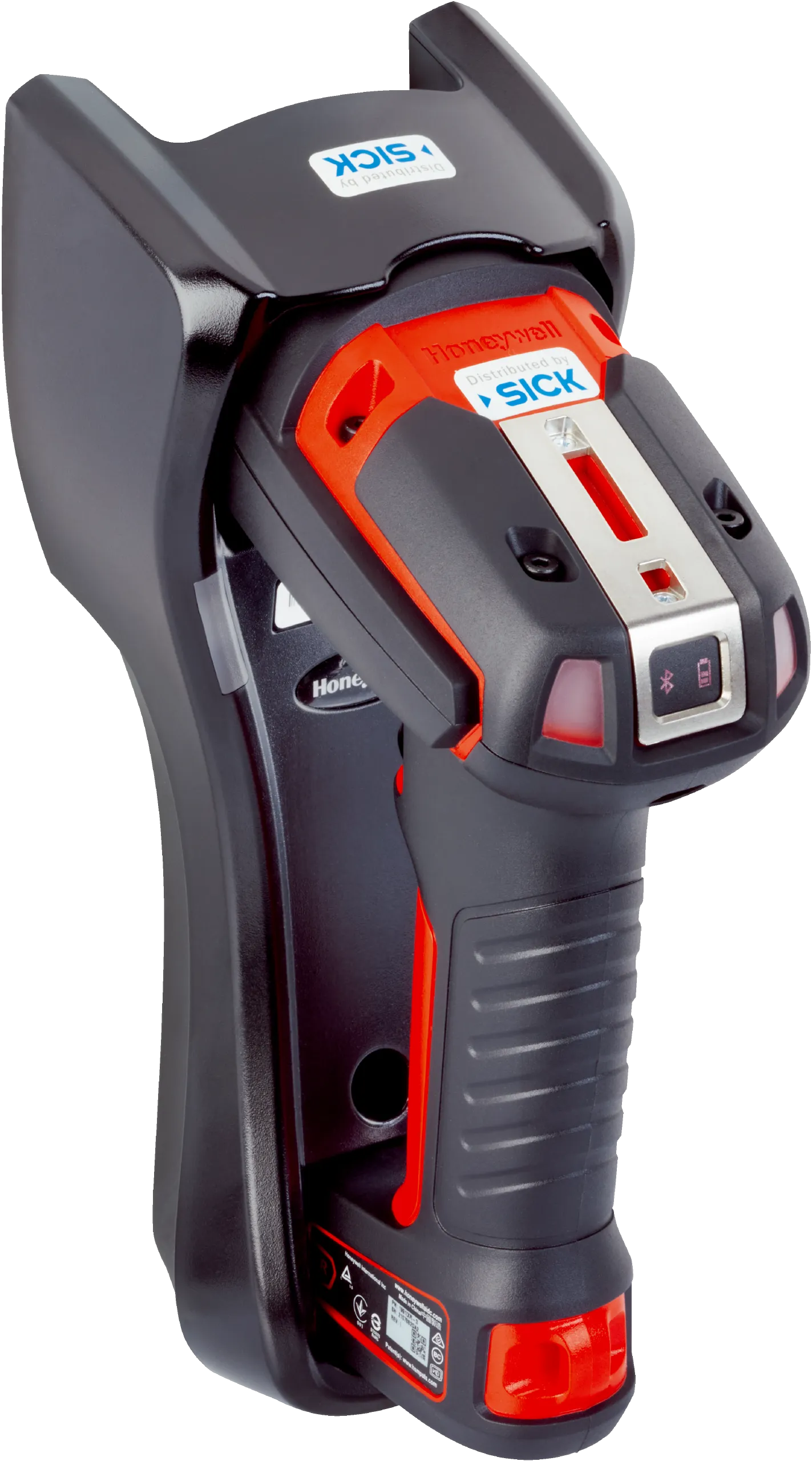

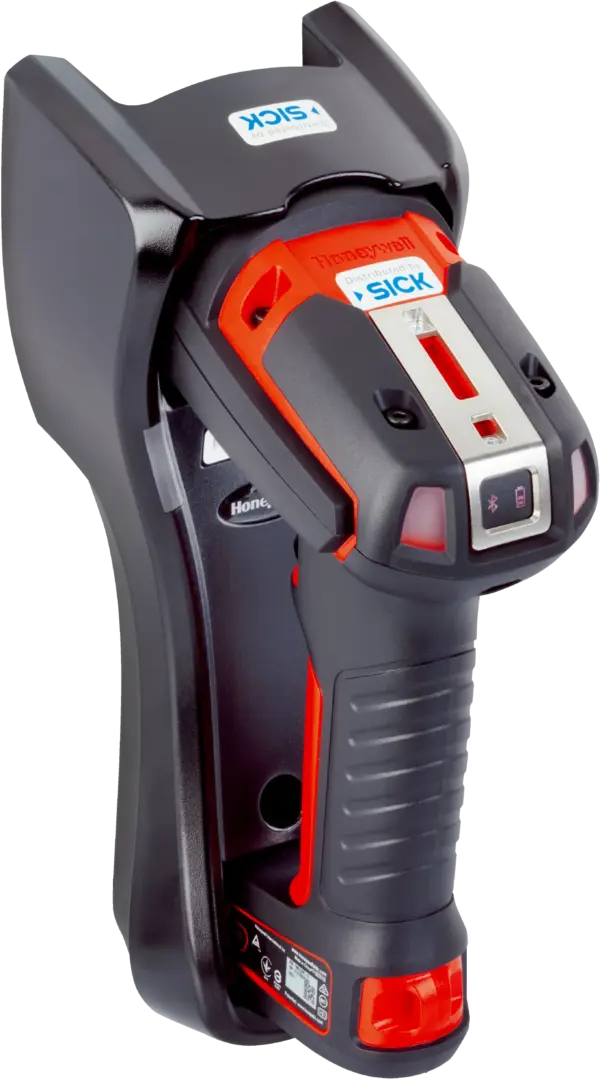

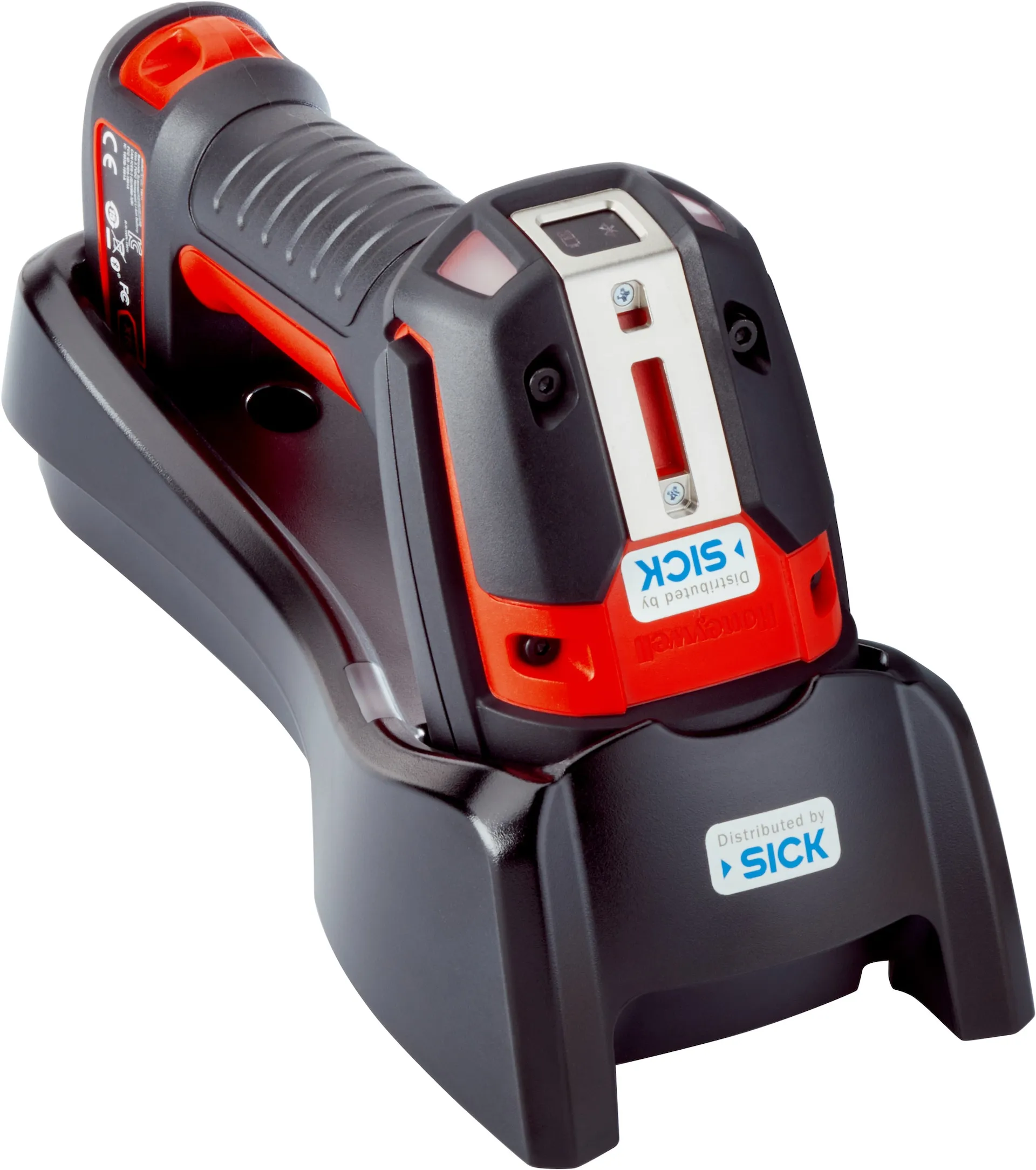

Sick HW1991ISR-3USB-5
Mobile handheld scanners | HW19 | HW1991ISR-3USB-5 | Readable code structures: 1D codes, 2D codes, Stacked, Digimarc® | Reading distance: 0 mm … 837 mm | Application: Industrial application | Scanne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mobile handheld scanners | HW19 | HW1991ISR-3USB-5 | Readable code structures: 1D codes, 2D codes, Stacked, Digimarc® | Reading distance: 0 mm … 837 mm | Application: Industrial application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: USB | Ambient operating temperature: –20 °C … +50 °C | Code resolution: ≥ 0.076 mm≥ 0.152 mm
Specification
Features
| Application | Industrial application |
|---|---|
| Version | Standard Range |
| Scanner design | Wireless variant |
| Sensor resolution | 1,280 px x 800 px |
| Light source | LED, Visible, Red, 625Â nm |
| Alignment aid | Laser, Red, 655Â nm |
| Reading distance | 0 mm ... 837 mm |
| Code resolution | ≥ 0.076 mm 1)≥ 0.152 mm 2) |
Mechanics/electronics
| Supply voltage | 4Â VÂ DCÂ ... 5.5Â VÂ DC |
|---|---|
| Current consumption | Charging (5Â VÂ DC): 1Â AStandby: 120Â mA |
| Housing material | Plastic (UL 94Â V-0) |
| Housing color | Orange, gray |
| Enclosure rating | IP65IP67 |
| Weight | 405Â g, incl. rechargeable battery |
| Dimensions (L x W x H) | 100 mm x 76 mm x 192 mm |
Performance
| Readable code structures | 1D codes, 2D codes, Stacked, Digimarc® |
|---|---|
| Bar code types | Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post |
| 2D code types | Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode, Digimarc, DOT Code, CodaBlock A/F, GS1, Chinese Sensible Code, OCR symbologies |
| Stacked code types | PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
| Code alignment | Omni-directional |
| Horizontal motion tolerance | Typ. 450 cm/s |
| Battery power | Up to 50,000Â scans when fully charged, 14Â h continuous operation at 1Â scan/s |
| Code buffer | 5,000Â Codes (EAN, for scanning in batch mode) |
Interfaces
| USB | ✔ |
|---|---|
| Function | Keyboard wedge, COM-Port emulation |
| Optical indicators | 3Â LEDs (good read, charge of battery , radio connection status) |
| Acoustic indicators | Beeper, can be switched off |
| Vibration | Yes |
| Configuration software | EZConfig Tool (≥ V.4.5.35) |
Ambient data
| Shock resistance | 50 drop samples at –30 °C ... +50 °C from 2 m height on concrete20 drop samples at 25 °C, 55% rel. air humidity onto concrete from a height of 2.4 mOnto concrete from a height of 3 m |
|---|---|
| Ambient operating temperature | –20 °C ... +50 °C |
| Storage temperature | –40 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Ambient light immunity | 100,000Â lx |
| Bar code print contrast (PCS) | ≥ 20 % |
General notes
| Items supplied | The rechargeable battery is included with delivery |
|---|
Certificates
| UN38.3 Test Summary Report | ✔ |
|---|
Classifications
| ECLASS 5.0 | 27280101 |
|---|---|
| ECLASS 5.1.4 | 27280101 |
| ECLASS 6.0 | 27280101 |
| ECLASS 6.2 | 27280101 |
| ECLASS 7.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 8.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 10.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
