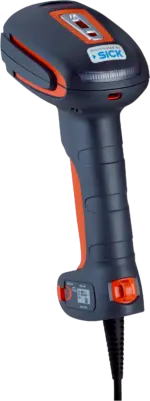

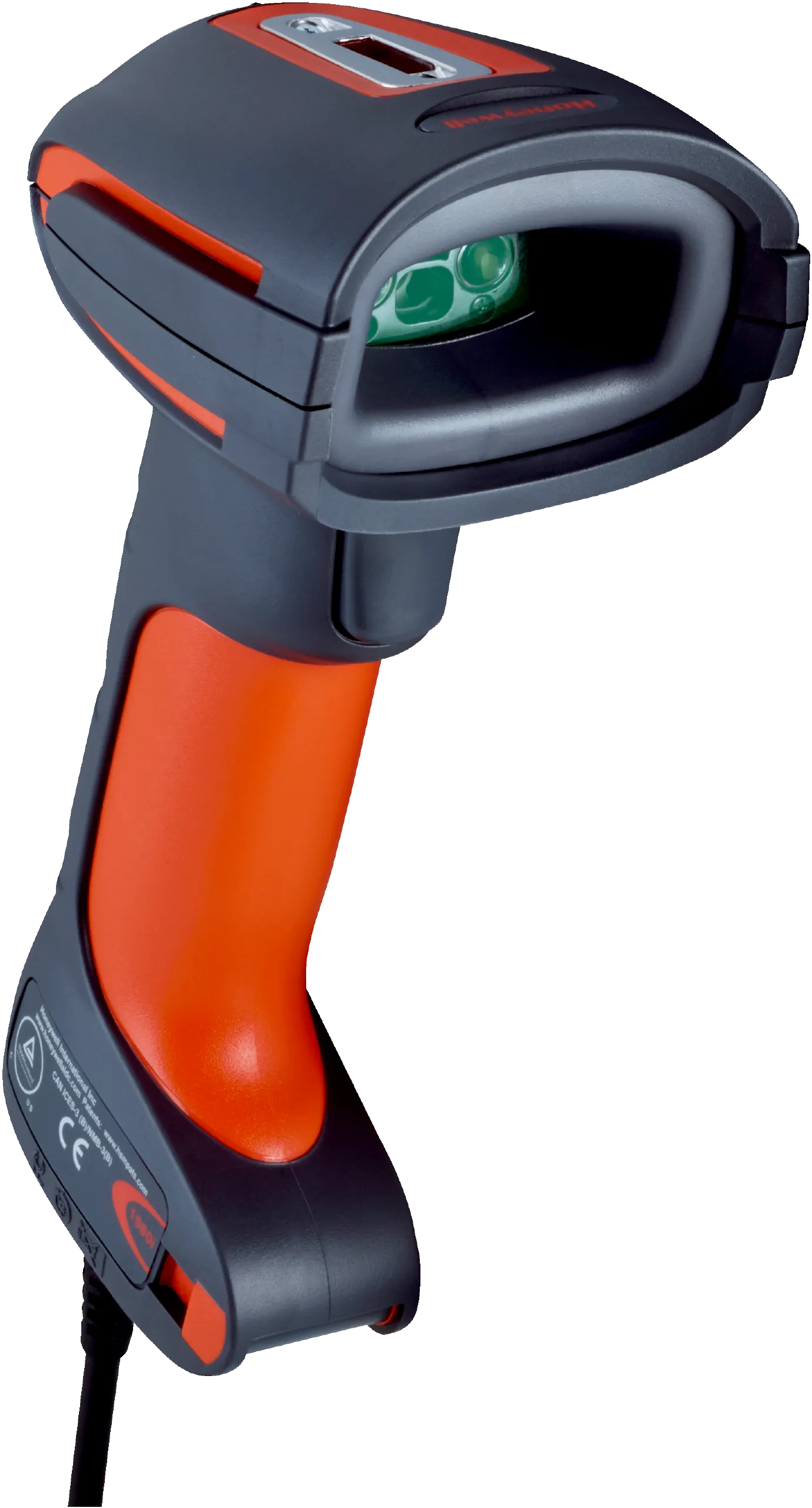

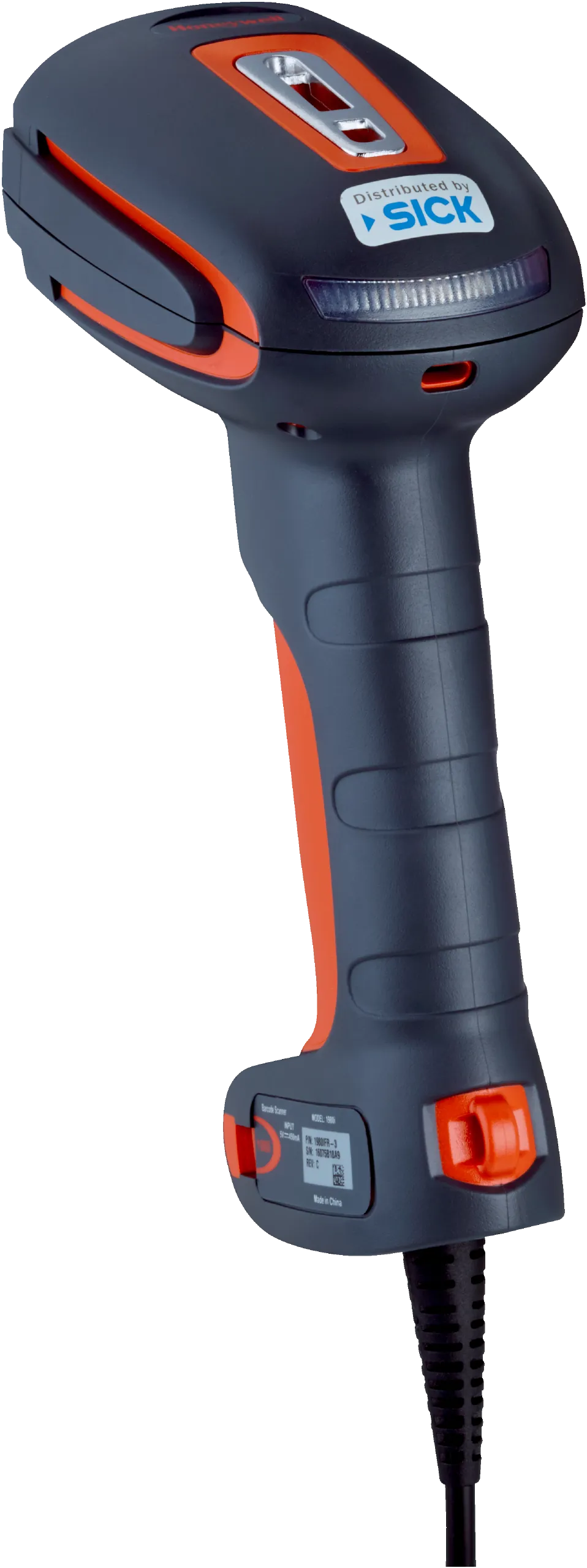

Sick HW1980IFR-3SER KIT
Mobile handheld scanners | HW19 | HW1980IFR-3SER KIT | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 150 mm … 16,000 mm | Application: Industrial application | Scanner de…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mobile handheld scanners | HW19 | HW1980IFR-3SER KIT | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 150 mm … 16,000 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP | Ambient operating temperature: –30 °C … +50 °C | Code resolution: ≥ 0.05 mm≥ 2 mm
Specification
Features
| Application | Industrial application |
|---|---|
| Version | Full Range Focus |
| Scanner design | Cable connection variant |
| Sensor resolution | 1,280 px x 800 px |
| Light source | LED, Visible, Red, 624 nm, ± 18 nm |
| Alignment aid | Laser, Red, 650Â nm |
| Reading distance | 150 mm ... 16,000 mm |
| Code resolution | ⥠0.05 mm 1)⥠2 mm 2) |
Mechanics/electronics
| Supply voltage | 4Â VÂ DCÂ ... 5.5Â VÂ DC |
|---|---|
| Current consumption | Operation at 5Â VÂ DC: 470Â mAStandby: 100Â mA |
| Housing material | Plastic (UL 94Â V-0) |
| Housing color | Orange, gray |
| Enclosure rating | IP65 |
| Weight | 335Â g |
| Dimensions (L x W x H) | 133 mm x 75 mm x 195 mm |
Performance
| Readable code structures | 1D codes, 2D codes, Stacked |
|---|---|
| Bar code types | Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post |
| 2D code types | Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode |
| Stacked code types | PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
| Code alignment | Omni-directional |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| PROFINET | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | PROFINET Single Port, PROFINET Dual Port |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Serial | â , RS-232 TTL |
| Remark | RS-232 (± 12 V) |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Optical indicators | 2Â LEDs (good read, charge of battery , radio connection status) |
| Acoustic indicators | Beeper, can be switched off |
| Vibration | Yes |
| Configuration software | EZConfig Tool |
Ambient data
| Shock resistance | 50 drop tests onto concrete from a height of 2 m at â30 °C |
|---|---|
| Ambient operating temperature | â30 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Ambient light immunity | 100,000Â lx |
| Bar code print contrast (PCS) | â¥Â 40 % |
Classifications
| ECLASS 5.0 | 27280101 |
|---|---|
| ECLASS 5.1.4 | 27280101 |
| ECLASS 6.0 | 27280101 |
| ECLASS 6.2 | 27280101 |
| ECLASS 7.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 8.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 10.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
