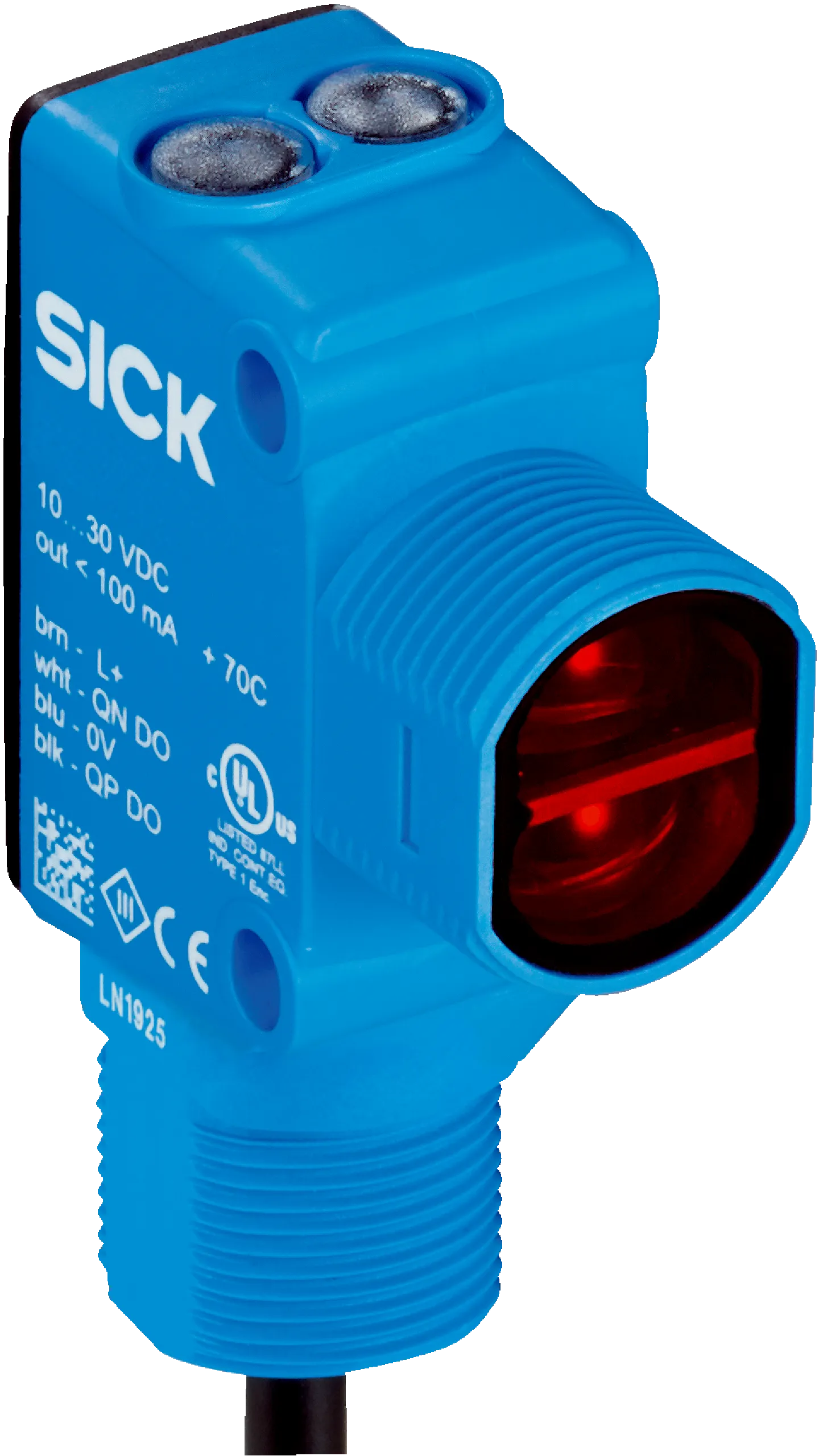

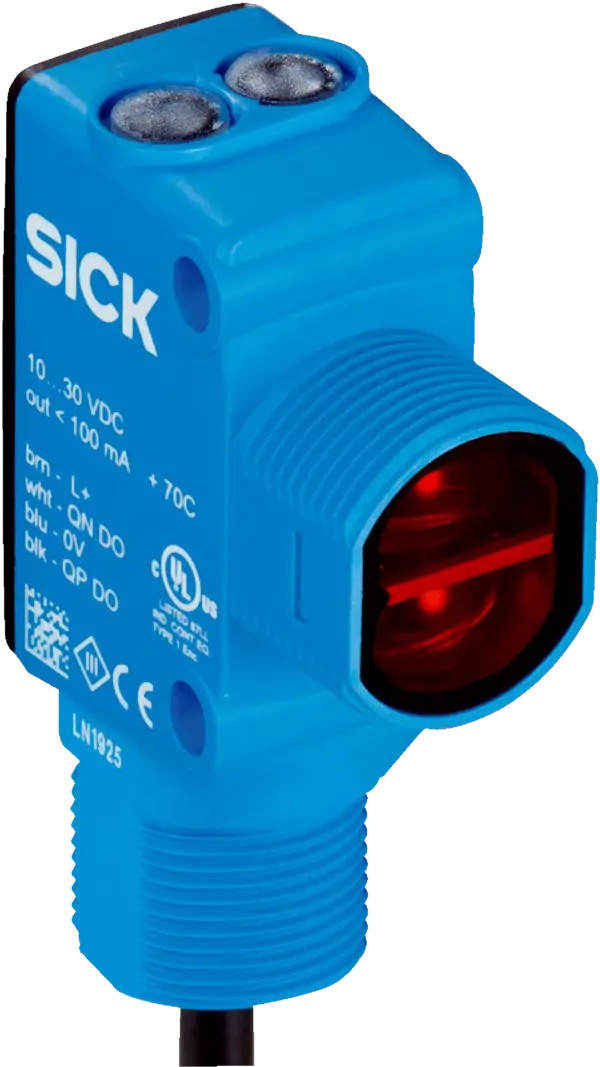

Sick HTE18B-F4B2BH
Photoelectric sensors | H18 Sure Sense | HTE18B-F4B2BH | Device version: Bottom Mount | Communication interface: – | Mounting system type: M18, head/M18, base/side (24.1 … 25.4 mm) | Sensor/ detection…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | H18 Sure Sense | HTE18B-F4B2BH | Device version: Bottom Mount | Communication interface: – | Mounting system type: M18, head/M18, base/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Energetic | Sensing range: 600 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Potentiometer, right: Sensitivity | Potentiometer, left: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 150 mm
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 16.2 mm x 50.1 mm x 31.4 mm |
| Housing design (light emission) | Hybrid |
| Thread diameter (housing) | M18 |
| Mounting system type | M18, head/M18, base/side (24.1 ⦠25.4 mm) |
| Housing color | Blue |
| Sensing range max. | 5 mm ... 600 mm 1) |
| Sensing range | 10 mm ... 200 mm 2) |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 3) |
| Light spot size (distance) | 10 mm x 18 mm (500 mm) |
| Wave length | 631Â nm |
| Potentiometer, right | Sensitivity |
| Potentiometer, left | Light/dark switching |
| Special features | Signal strength light bar |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | < 5 Vpp 1) |
| Current consumption | â¤Â 20 mA 2) |
| Switching output | Push-pull: PNP/NPN |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Switching output Q1 | Push-pull: PNP/NPN, Light switching 3) |
| Switching output Q2 | Push-pull: PNP/NPN, Dark switching 3) |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable with M12 male connector, 4-pin, 150Â mm |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.2 mm² |
| Circuit protection | AÂ 6)BÂ 7)DÂ 8) |
| Protection class | III |
| Weight | 18Â g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67IP69K |
| Items supplied | Fastening nut (1x), M18, plastic, black, flat |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) |
| Ambient operating temperature | â40 °C ... +70 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | E189383 |
Connection type/pinouts
| Cable material | Plastic |
|---|---|
| Conductor cross section | 0.2 mm² |
| BN 1 | + (L+) |
| WH 2 | Q2 |
| BU 3 | - (M) |
| BK 4 | Q1 |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
