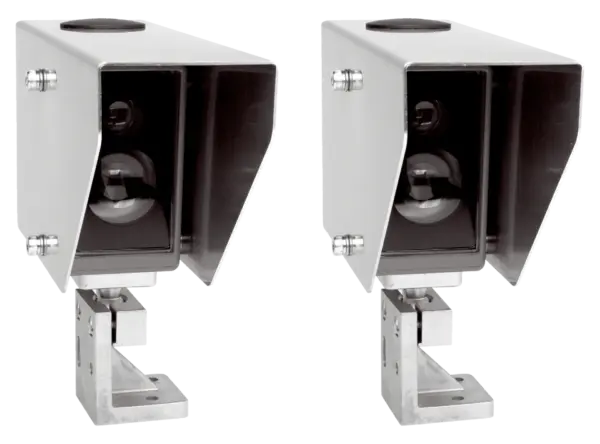

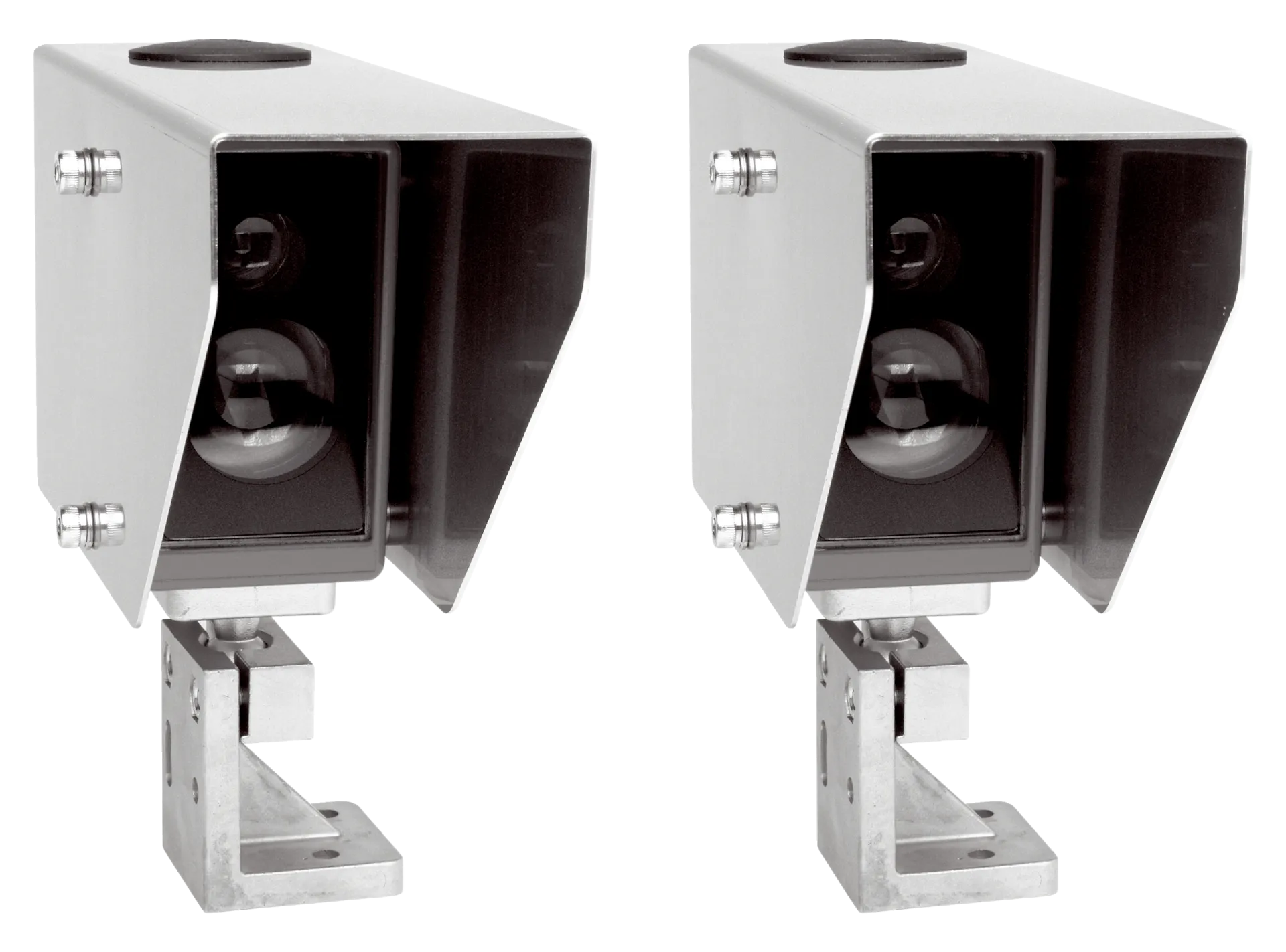

Sick HISIC450-R250
Photoelectric sensors | HISIC | HISIC450-R250 | Functional principle: Through-beam photoelectric sensor | Switching output: Relay contact | Included with delivery: 2 x sender, 2 x receiver, 4 x ball j…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | HISIC | HISIC450-R250 | Functional principle: Through-beam photoelectric sensor | Switching output: Relay contact | Included with delivery: 2 x sender, 2 x receiver, 4 x ball joint bracket, material stainless steel 1.4581, 4 x weather hood, material stainless steel 1.4571, powder-coated
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Sensing range max. | ⤠100 m 1) |
| Special applications | Overheight |
| Items supplied | 2Â x sender, 2Â x receiver, 4Â x ball joint bracket, material stainless steel 1.4581, 4Â x weather hood, material stainless steel 1.4571, powder-coated |
Electronics
| Supply voltage Ue | 20Â VÂ AC/DCÂ ... 250Â VÂ AC/DCÂ 1) |
|---|---|
| Number | 1 |
| Type | Relay contact |
| Output current Imax. | 750Â mA |
| Power consumption | 120Â W |
| Circuit protection outputs | Electrically isolated |
| Response time | â¤Â 10 ms |
| Power consumption | â¤Â 6 W |
Mechanics
| Dimensions (W x H x D) | 60 mm x 126 mm x 105 mm |
|---|
Ambient data
| Enclosure rating | IP67 |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 46171620 |
