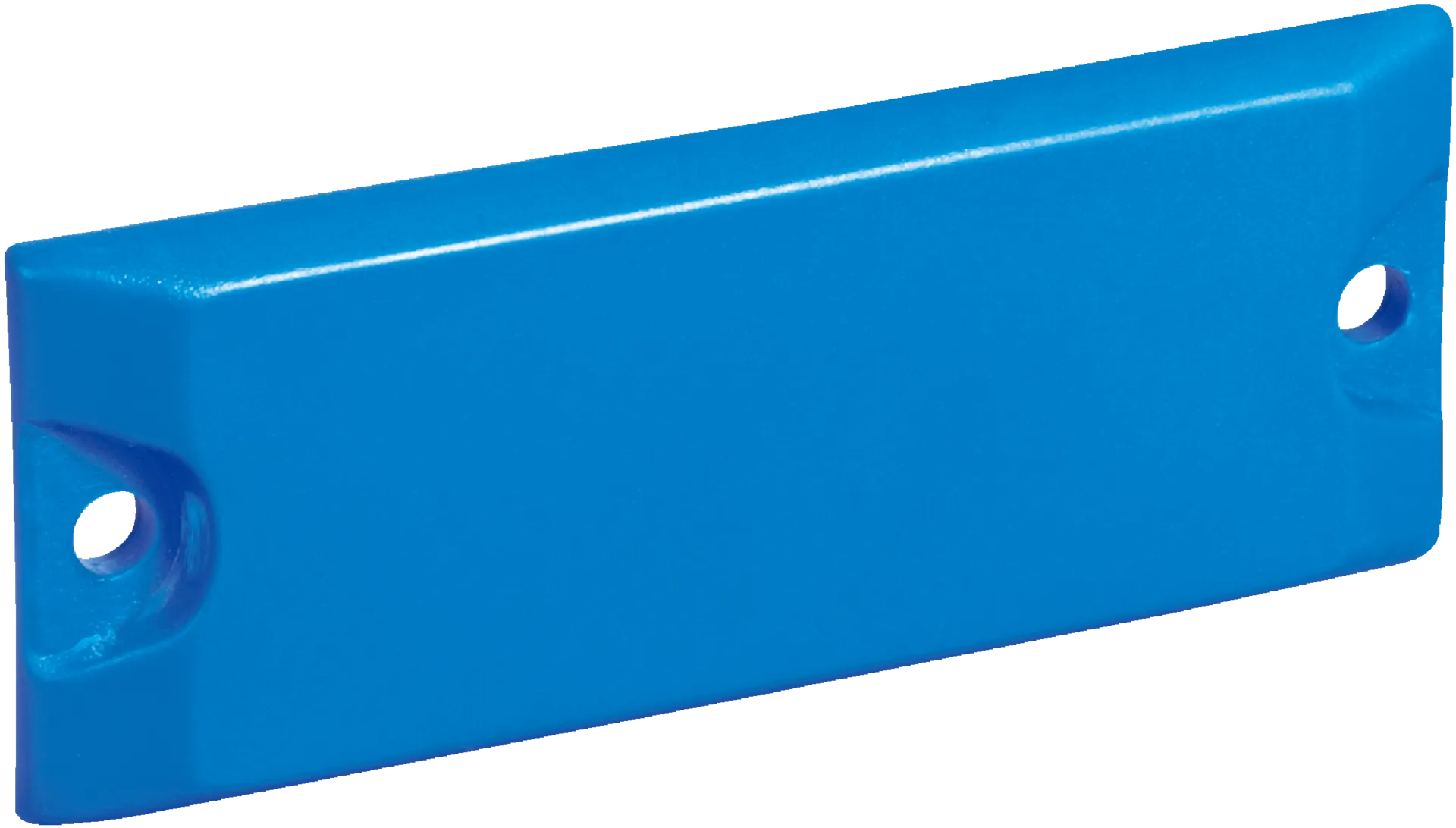

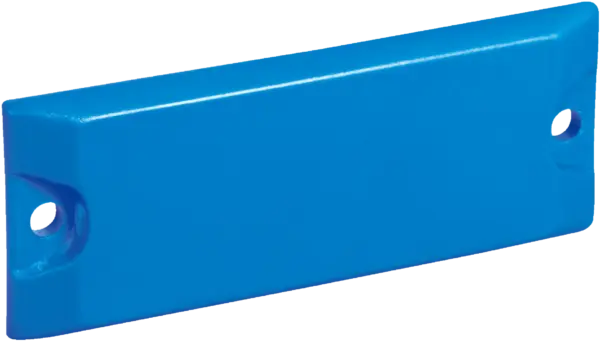

Sick HF Transponder, rectangular, on-metal
RFID transponders | HF transponders | HF Transponder, rectangular, on-metal | Memory capacity (EPC / user memory): 896 Bit (28 x 4 Byte) (User Memory) | Dimensions (L x W x H): 37 mm x 90 mm x 7 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID transponders | HF transponders | HF Transponder, rectangular, on-metal | Memory capacity (EPC / user memory): 896 Bit (28 x 4 Byte) (User Memory) | Dimensions (L x W x H): 37 mm x 90 mm x 7 mm
Specification
Features
| Product segment | RFID transponders, RFID |
|---|---|
| Product | HF transponders |
| Scope | Marking of metal parts |
| Frequency band | HF (13.56Â MHz) |
| Design | Rectangular |
| Housing material | ABS |
| Ambient operating temperature | â25 °C ... +85 °C 1) |
| Storage temperature | â40 °C ... +85 °C |
| Housing color | Blue |
| IC type | NXP ICODE SLIX |
| Storage capacity | 896Â Bit (28Â x 4Â Byte) (User Memory) |
| IC data retention time | <Â 10Â years |
| Mounting method | Screws, Rivets |
| Dimensions (W x H x L) | 90 mm x 7 mm x 37 mm |
| Weight | +Â 2.5Â g |
| RFH505 | 2 cm 2) |
| RFH510 | 2.5 cm 2) |
| RFH515 | 4 cm 2) |
| RFH620 | 6.5 cm 2) |
| RFH630 | 12 cm 2) |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 10.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
