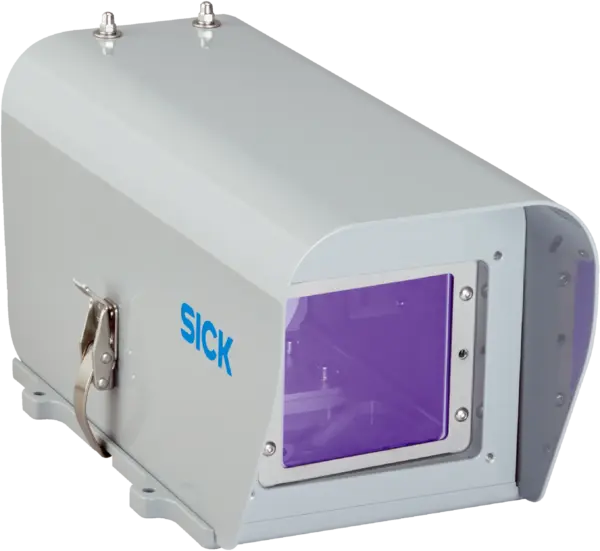

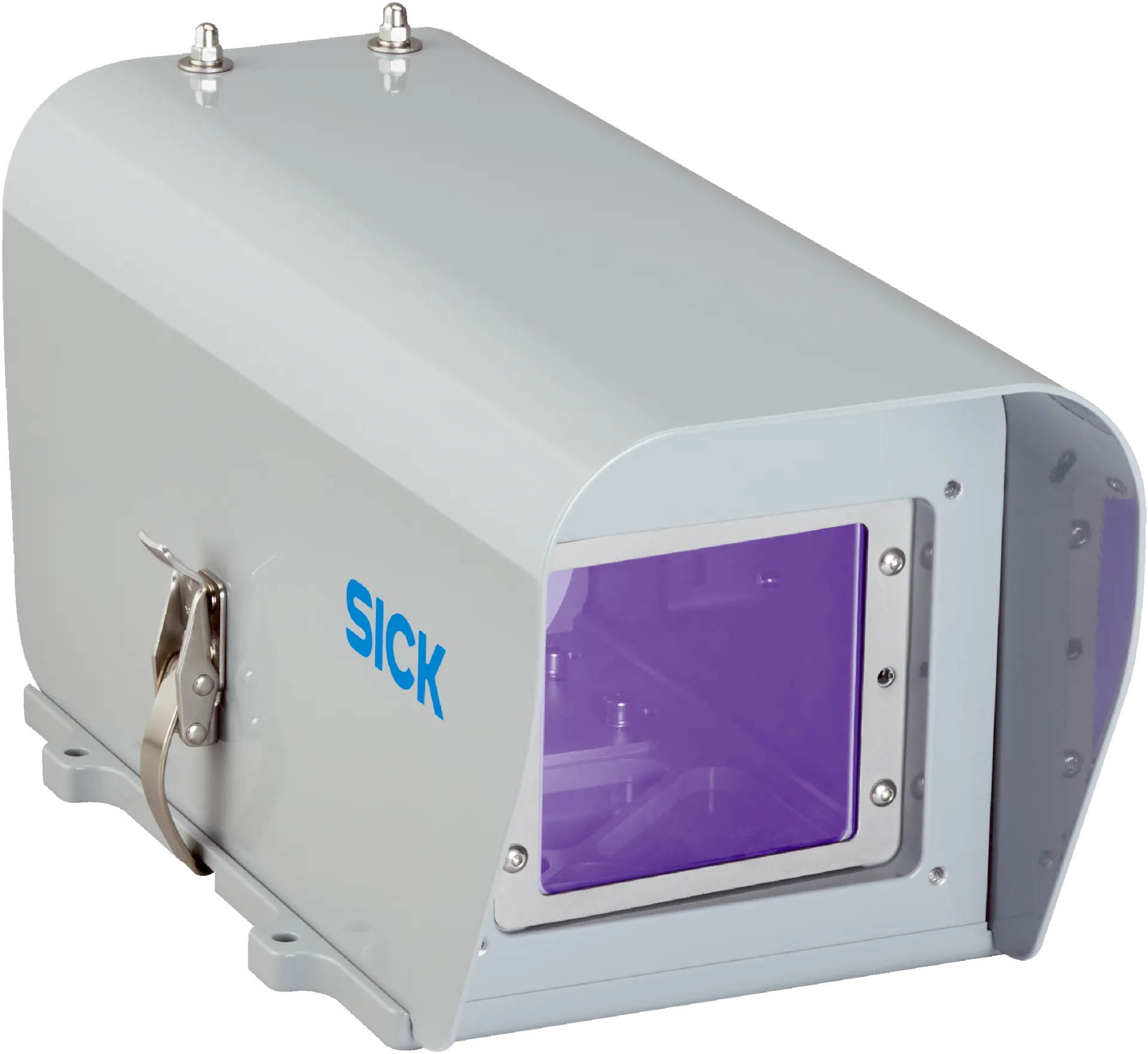

Sick Heavy-duty protective housing with cooling
Device protection and care | Protective housing | Heavy-duty protective housing with cooling | Description: Min. cooling water flow rate 2 l/min, max. water pressure 6 bar. The housing and the optiona…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

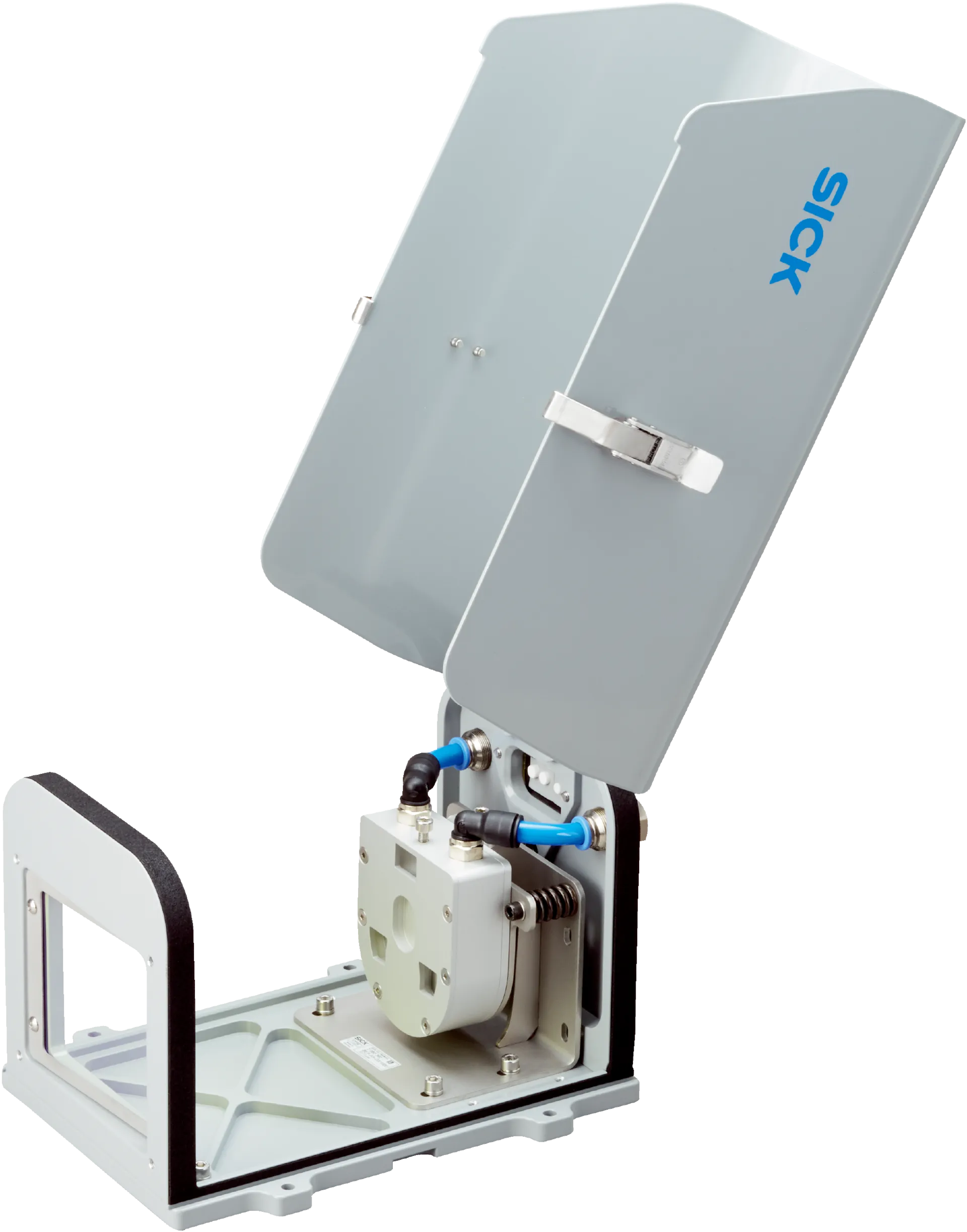

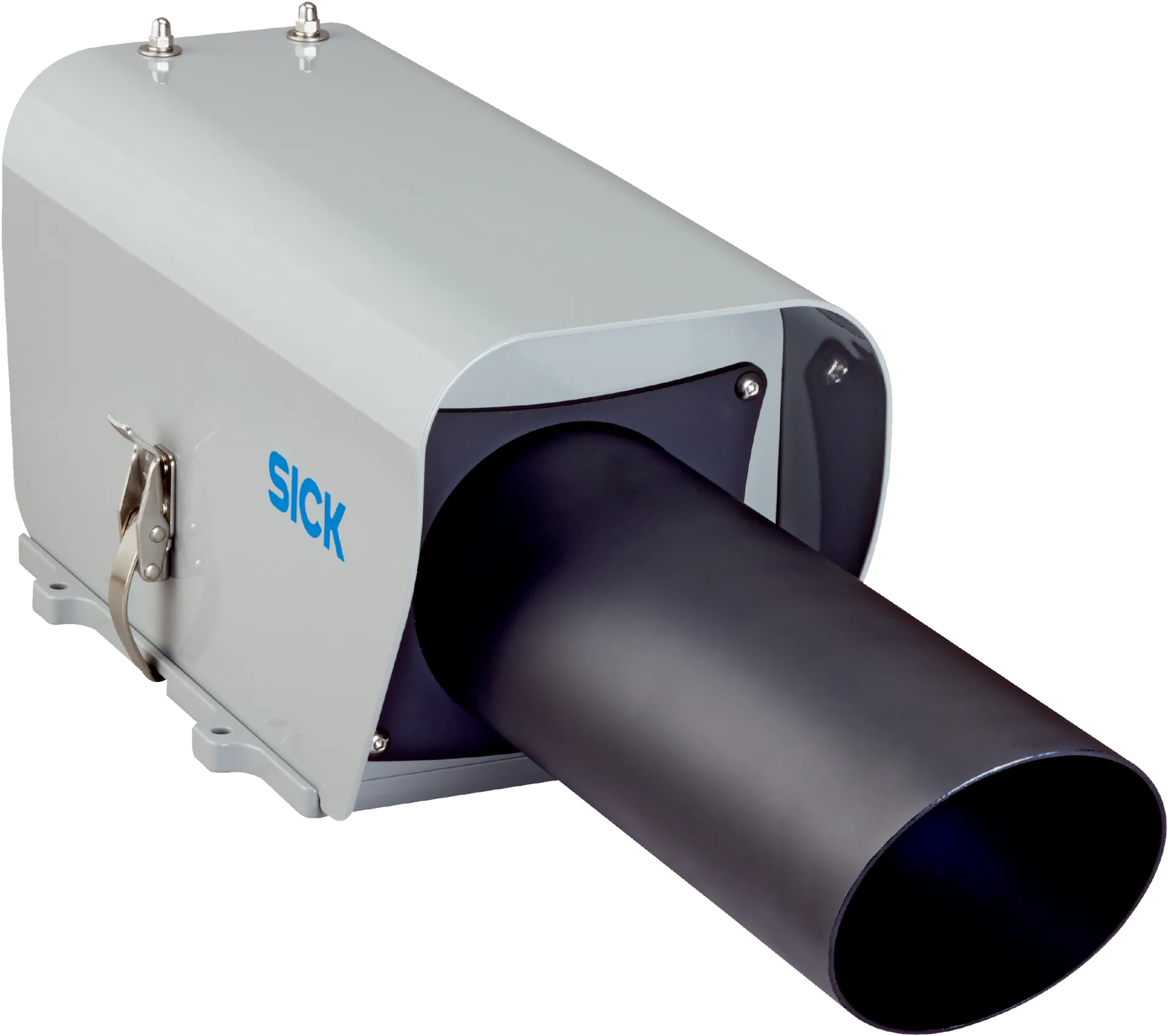

Device protection and care | Protective housing | Heavy-duty protective housing with cooling | Description: Min. cooling water flow rate 2 l/min, max. water pressure 6 bar. The housing and the optional protective tube can be flushed out with compressed air (max. 100 mbar). The housing can be opened from the top without a tool. Due to space constraints, connecting cables with 90° angled, pre-assembled male connectors/female connectors are required. | Items supplied: Heavy-duty protective housing with water cooling, alignment bracket and front screen (pre-installed). The tube for the heavy-duty protective housing is not included with delivery.
Specification
Features
| Product segment | Device protection and care |
|---|---|
| Product | Protective housing |
| Description | Min. cooling water flow rate 2 l/min, max. water pressure 6 bar. The housing and the optional protective tube can be flushed out with compressed air (max. 100 mbar). The housing can be opened from the top without a tool. Due to space constraints, connecting cables with 90° angled, pre-assembled male connectors/female connectors are required. |
| Items supplied | Heavy-duty protective housing with water cooling, alignment bracket and front screen (pre-installed). The tube for the heavy-duty protective housing is not included with delivery. |
| Material | Housing: aluminum. Attachments: stainless steel, zinc coated and passivated steel, plastic, EPDM, NBR, elastomer, glass |
| Ambient operating temperature | +95 °C, at a cooling water temperature of 20 °C+80 °C, at a cooling water temperature of 30 °C+75 °C, at a cooling water temperature of 35 °C |
| Weight | 4.2Â kg |
Classifications
| ECLASS 5.0 | 27279202 |
|---|---|
| ECLASS 5.1.4 | 27279202 |
| ECLASS 6.0 | 27279202 |
| ECLASS 6.2 | 27279202 |
| ECLASS 7.0 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 8.1 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ETIM 5.0 | EC000202 |
| ETIM 6.0 | EC000202 |
| ETIM 7.0 | EC000202 |
| ETIM 8.0 | EC000202 |
| UNSPSC 16.0901 | 32131023 |
