Sick Hardware Kit
Safety systems | Safe Robotics Area Protection | Hardware Kit | Variant: sBot Speed CIP | Product type: Hardware | Robot controller: FANUC: R-30iB Plus / KUKA: KR C5 | Stopping process of the robot: W…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety systems | Safe Robotics Area Protection | Hardware Kit | Variant: sBot Speed CIP | Product type: Hardware | Robot controller: FANUC: R-30iB Plus / KUKA: KR C5 | Stopping process of the robot: With speed reduction | Robot restart: Automatic | Safety controller type: Programmable | Interface: EtherNet/IPâ„¢ CIPÂ Safetyâ„¢
Specification
Features
| Variant | sBot Speed CIP |
|---|---|
| Product type | Hardware |
| Robot controller | FANUC: R-30iB Plus, KUKA: KR C5 |
| Stopping process of the robot | With speed reduction |
| Robot restart | Automatic |
| Communication interface | EtherNet/IP™ CIP Safety™ |
| Safe state in the event of a fault | The safety outputs via the network are logic 0. |
| Safety laser scanners | microScan3 Core - EFI-pro |
| Protective field range | 9Â m |
| Safety task | Hazardous area protection |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | 90% at 50 °C (EN 61131-2) |
| Safety controller included | Flexi Soft |
| Safety controller type | Programmable |
| Supply voltage VS | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Performance level | PL d (ISO 13849-1) |

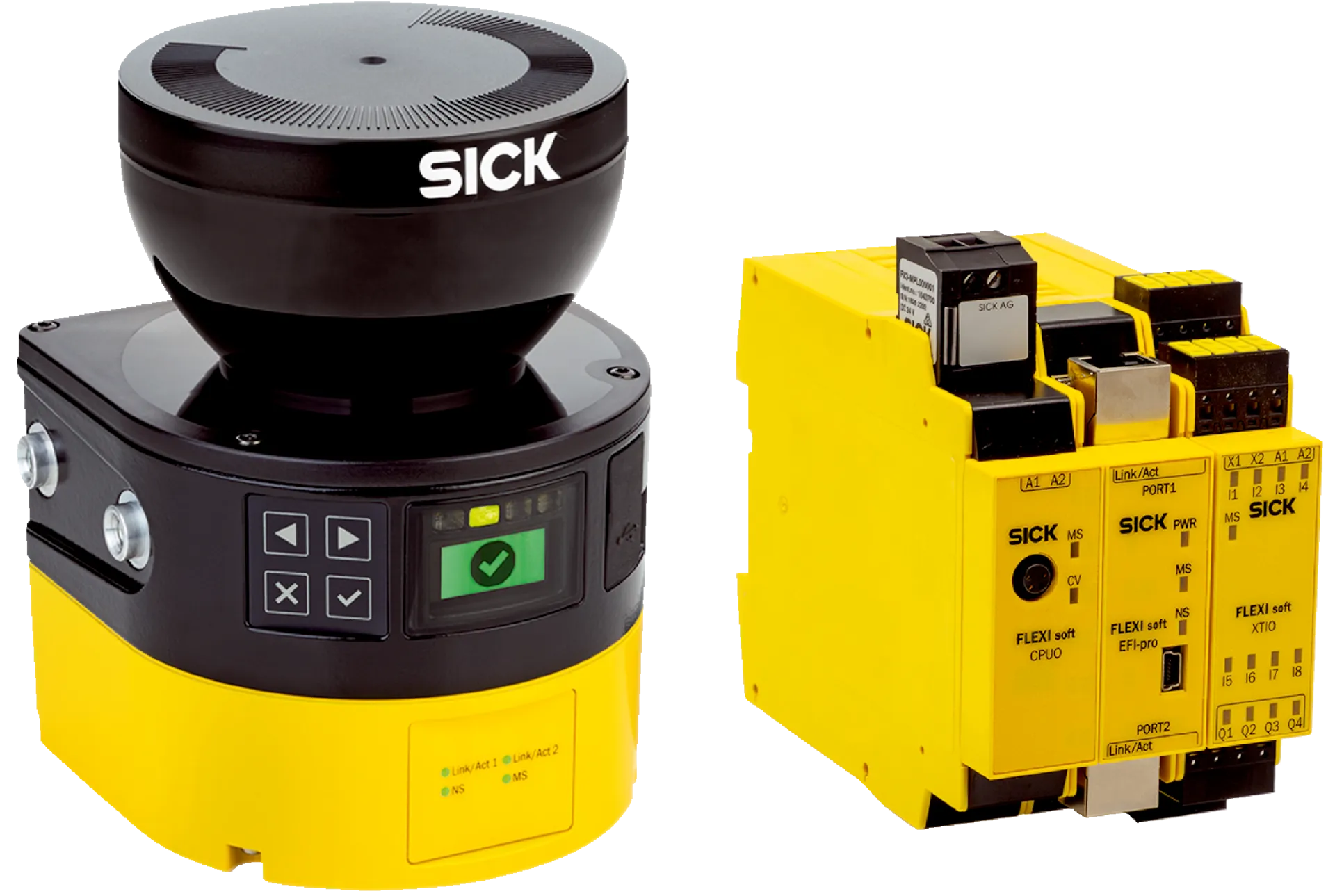

| Items supplied | microScan3 Core – EFI-pro safety laser scannerFlexi Soft main module FX3-CPU0FX3-MPL0 Flexi Soft system plugFX3-XTIO Flexi Soft I/O moduleFlexi-Soft-Gateway EFI-Pro FX3-GEPR0Documentation (operating instructions) |
Certificates
| China RoHS | ✔ |
|---|
Classifications
| ECLASS 5.0 | 27279090 |
|---|---|
| ECLASS 5.1.4 | 27279090 |
| ECLASS 6.0 | 27279090 |
| ECLASS 6.2 | 27279090 |
| ECLASS 7.0 | 27279090 |
| ECLASS 8.0 | 27279090 |
| ECLASS 8.1 | 27279090 |
| ECLASS 9.0 | 27279090 |
| ECLASS 10.0 | 27279090 |
| ECLASS 11.0 | 27279090 |
| ECLASS 12.0 | 27279090 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
