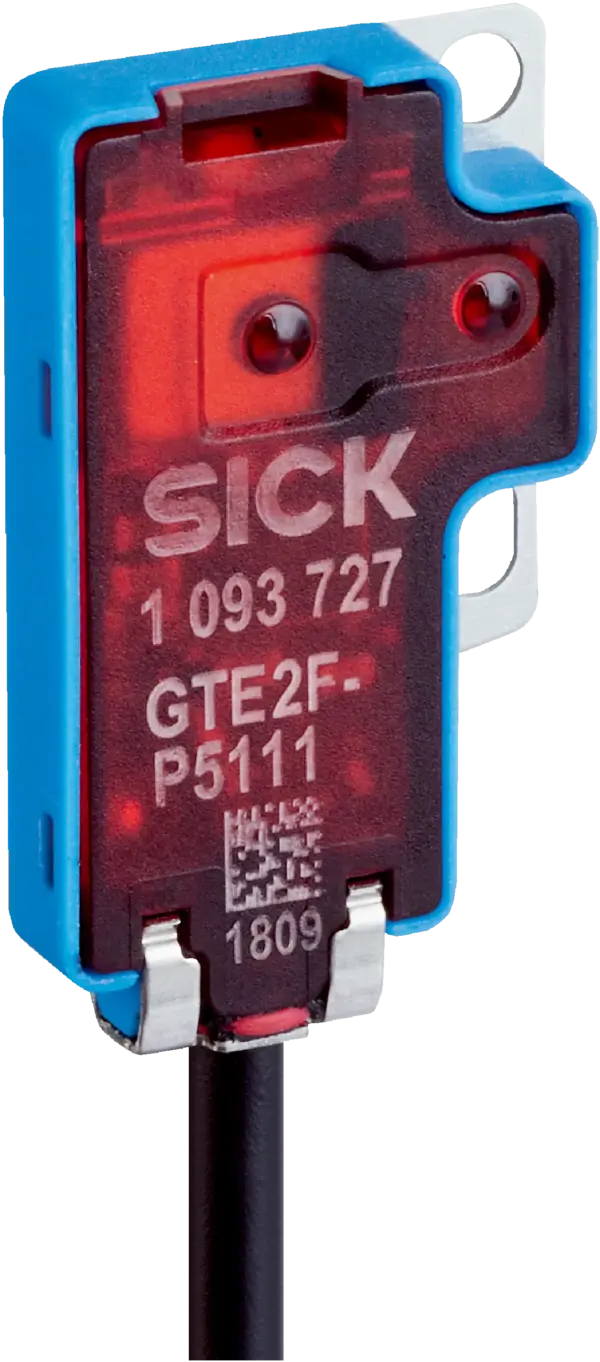

Sick GTE2F-P5111
Photoelectric sensors | G2 | GTE2F-P5111 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Con…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G2 | GTE2F-P5111 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 14 mm x 24 mm x 3.5 mm |
| Housing design (light emission) | Rectangular |
| Minimum detectable object (MDO) | 0.1 mm 1) |
| Sensing range max. | 1.5 mm ... 15 mm |
| Sensing range | 2 mm ... 12.5 mm 2) |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 3) |
| Light spot size (distance) | Ø 11 mm (15 mm) |
| Wave length | 660Â nm |
| Adjustment | None |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | < 5 Vpp 1) |
| Current consumption | 20Â mAÂ 2) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.625 ms 3) |
| Switching frequency | 800 Hz 4) |
| Connection type | Cable with connector M8, 3-pin, 200 mm 5) |
| Cable material | Plastic, PVC |
| Cable diameter | Ø 2.3 mm |
| Circuit protection | AÂ 6)CÂ 7)DÂ 8) |
| Weight | 22Â g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, MABS |
| Enclosure rating | IP67 |
| Shock resistance | 294 m/s² (approx. 30 g, 6 shocks in x-, y-, z-axis) |
| Vibration resistance | 10 Hz ... 55 Hz (amplitude 0.5 mm, x-, y-, z-axis 0.5 hours (each direction))138 m/s² 10 Hz ... 2,000 Hz (approx. 14 g, x-, y-, z-axis 2 hours) |
| Ambient operating temperature | –20 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| Repeatability (Ta not constant) | 0.1Â mm |
| Hysteresis | <Â 2.25Â mm |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
