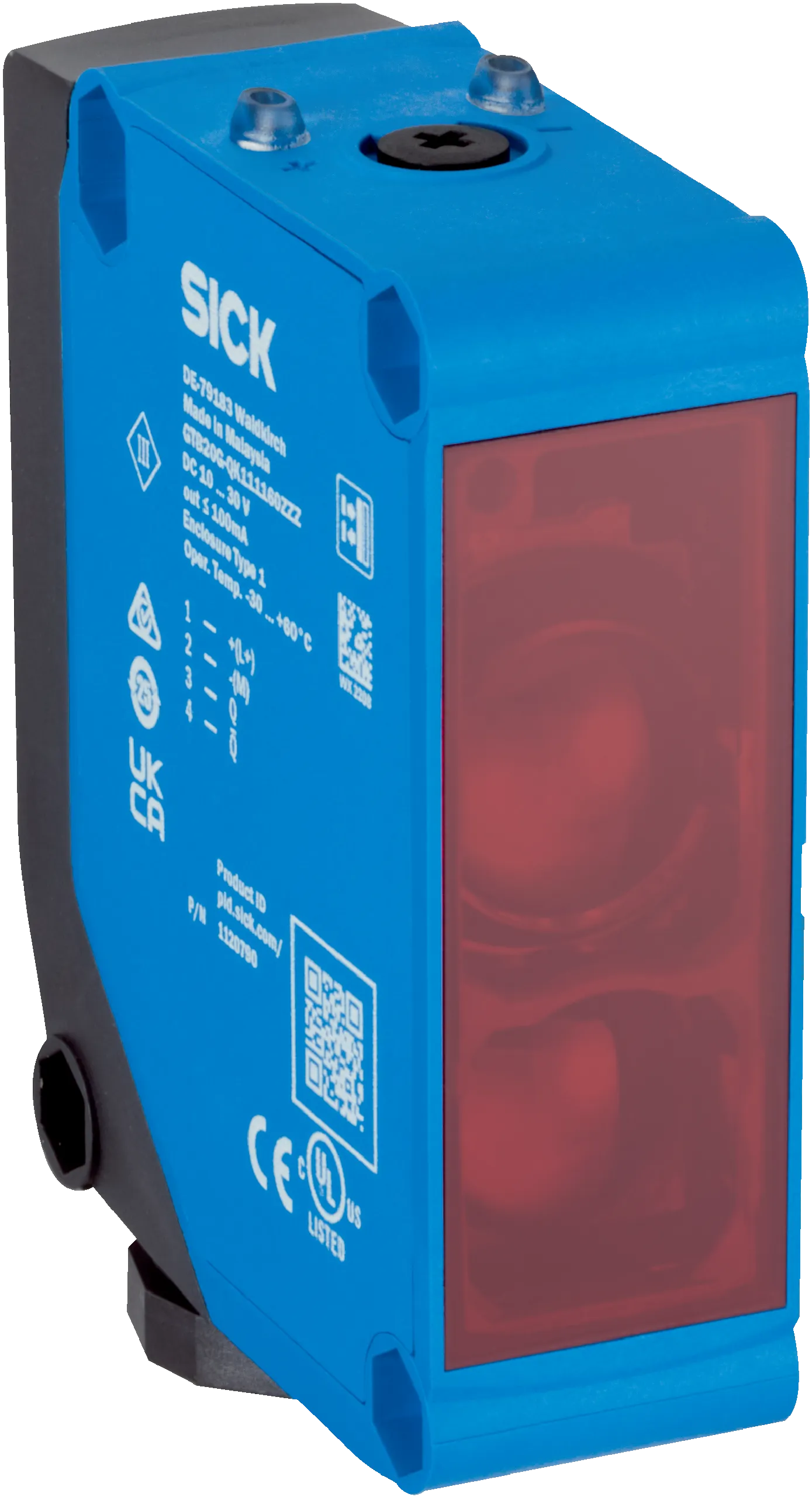

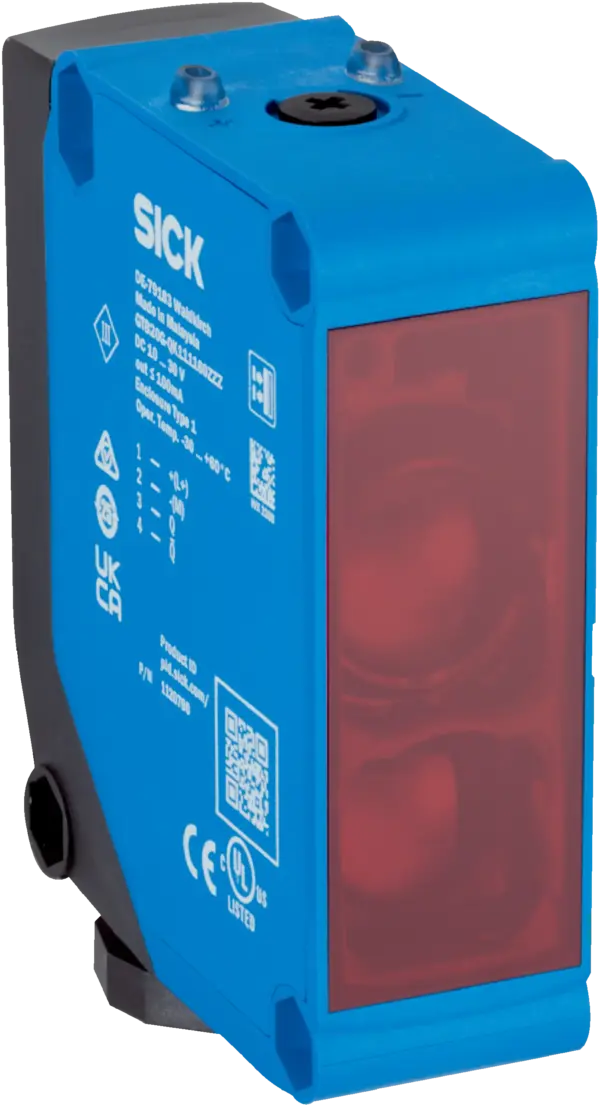

Sick GTE20M-QK111170ZZZ

Photoelectric sensors | G20 | GTE20M-QK111170ZZZ | Sensing range min. / max.: 0.005 m / 3.5 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switchin…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | G20 | GTE20M-QK111170ZZZ | Sensing range min. / max.: 0.005 m / 3.5 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Terminal connection, 4 terminals | Light source: LED | Type of light: Infrared light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular

Specification

Features

Functional principlePhotoelectric proximity sensor
Functional principle detailEnergetic
Sensing range min.0.005Â m
Sensing range max.3.5Â m
Reference objectObject with 90% remission factor (complies with standard white according to DINÂ 5033)
Light sourceLED
Type of lightInfrared light
Shape of light spotRectangular
Light spot size (distance)Ø 28 mm (500 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.5° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length850Â nm
Average service life100,000 h at Ta = +25 °C
PotentiometerFor sensitivity adjustment, 270°
LED greenOperating indicatorStatic on: power on
LED yellowStatus of received light beamStatic on: object presentStatic off: object not present

Safety-related parameters

MTTFD667Â years
DCavg0%

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple<Â 5Â Vpp
Usage categoryDC-13 (according to ENÂ 60947-1)
Current consumption≤ 30 mA, without load. At UB = 24 V
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWVS - (≤ 3 V) / approx. 0 V
Signal voltage NPN HIGH/LOWVS - (≤ 3 V) / approx. 0 V
Output current Imax.≤ 100 mA 2)
Circuit protection outputsReverse polarity protected
Response time≤ 500 µs
Switching frequency1,000 Hz 3)
BN 1+ (L+)
BU 2- (M)
BU 3QDigital output, light switching, object present → output Q HIGH
BK 4ǬDigital output, dark switching, object present → output Ǭ LOW

Mechanics

HousingRectangular
Dimensions (W x H x D)23.5 mm x 74.5 mm x 52.5 mm
ConnectionTerminal connection, 4Â terminals
HousingPlastic, ABS
Front screenPlastic, PMMA
WeightApprox. 88 g

Ambient data

Enclosure ratingIP67 (ENÂ 60529)
Ambient operating temperature–30 °C ... +60 °C
Ambient temperature, storage–40 °C ... +70 °C
Typ. Ambient light immunitySunlight: ≤ 20,000 lx
Shock resistance30Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2Â 1)
UL File No.NRKH.E348498 & NRKH7.E348498

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
Photobiological safety (IEC EN 62471)✔

Classifications

ECLASS 5.027270904
ECLASS 5.1.427270904
ECLASS 6.027270904
ECLASS 6.227270904
ECLASS 7.027270904
ECLASS 8.027270904
ECLASS 8.127270904
ECLASS 9.027270904
ECLASS 10.027270904
ECLASS 11.027270904
ECLASS 12.027270903
ETIM 5.0EC002719
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
UNSPSC 16.090139121528
