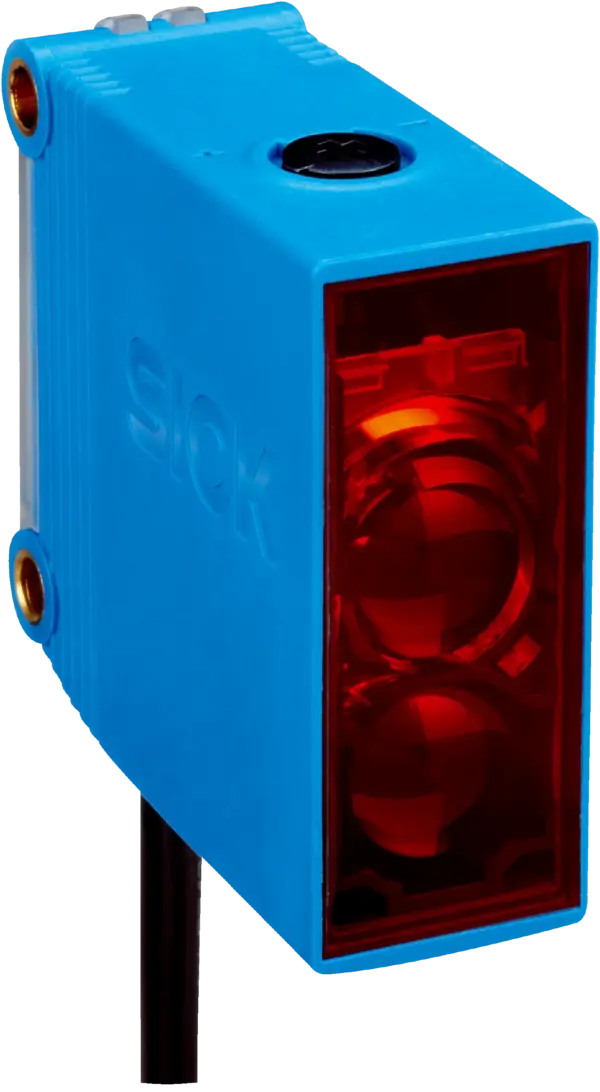

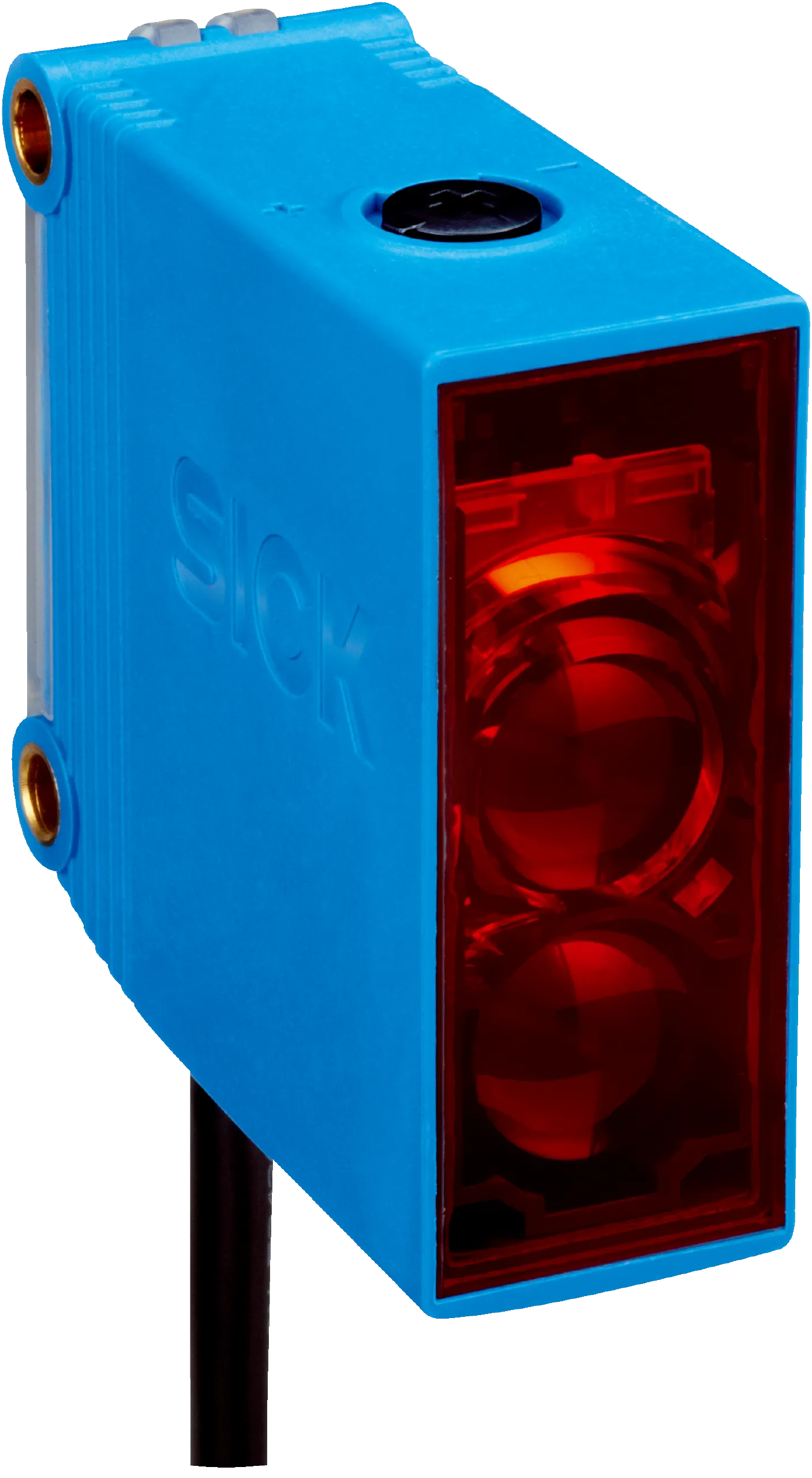

Sick GTE10-R3821
Photoelectric sensors | G10 | GTE10-R3821 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Relay | Switching mode: Light/dark switchi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G10 | GTE10-R3821 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 20 mm x 50 mm x 51.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 20 mm ... 2,000 mm 1) |
| Sensing range | 40 mm ... 1,400 mm 1) |
| Type of light | Infrared light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | Ø 57 mm (1,500 mm) |
| Wave length | 850Â nm |
| Adjustment | Potentiometer, 270° |
Mechanics/electronics
| Supply voltage Ue | 24Â VÂ AC/DCÂ ... 240Â VÂ AC/DCÂ 1) |
|---|---|
| Ripple | <Â 10Â % |
| Power consumption | ≤ 2.5 VA |
| Switching output | Relay, SPDT, electrically isolated 2) |
| Switching mode | Light/dark switching 2) |
| Switching load max. (current/voltage) | 0.11Â A (250Â VÂ DC)3Â A (30Â VÂ DC)3Â A (250Â VÂ AC) |
| Response time | ≤ 10 ms |
| Switching frequency | 20 Hz 3) |
| Connection type | Cable, 5-wire, 2 m 4) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.25 mm² |
| Circuit protection | CÂ 5) |
| Protection class | IIÂ 6) |
| Weight | 115Â g |
| Interference emission | ENÂ 61000-6-3 (2011-09)Â 7) |
| Housing material | Plastic, ABS/PMMA |
| Enclosure rating | IP67 |
| Relay switching cycles min. | 100.000Â cycles (3Â A) |
| Usage category | DC-13 (according to ENÂ 60947-1)AC-15 (according to ENÂ 60947-1) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2ENÂ 61000-6-3 (2011-09) |
| Ambient operating temperature | –30 °C ... +60 °C 8) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| More standards | UL325Â 9) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
