Photoelectric sensors | G6 | GTB6SP-22A1116EZZZ | Sensing range min. / max.: 5 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

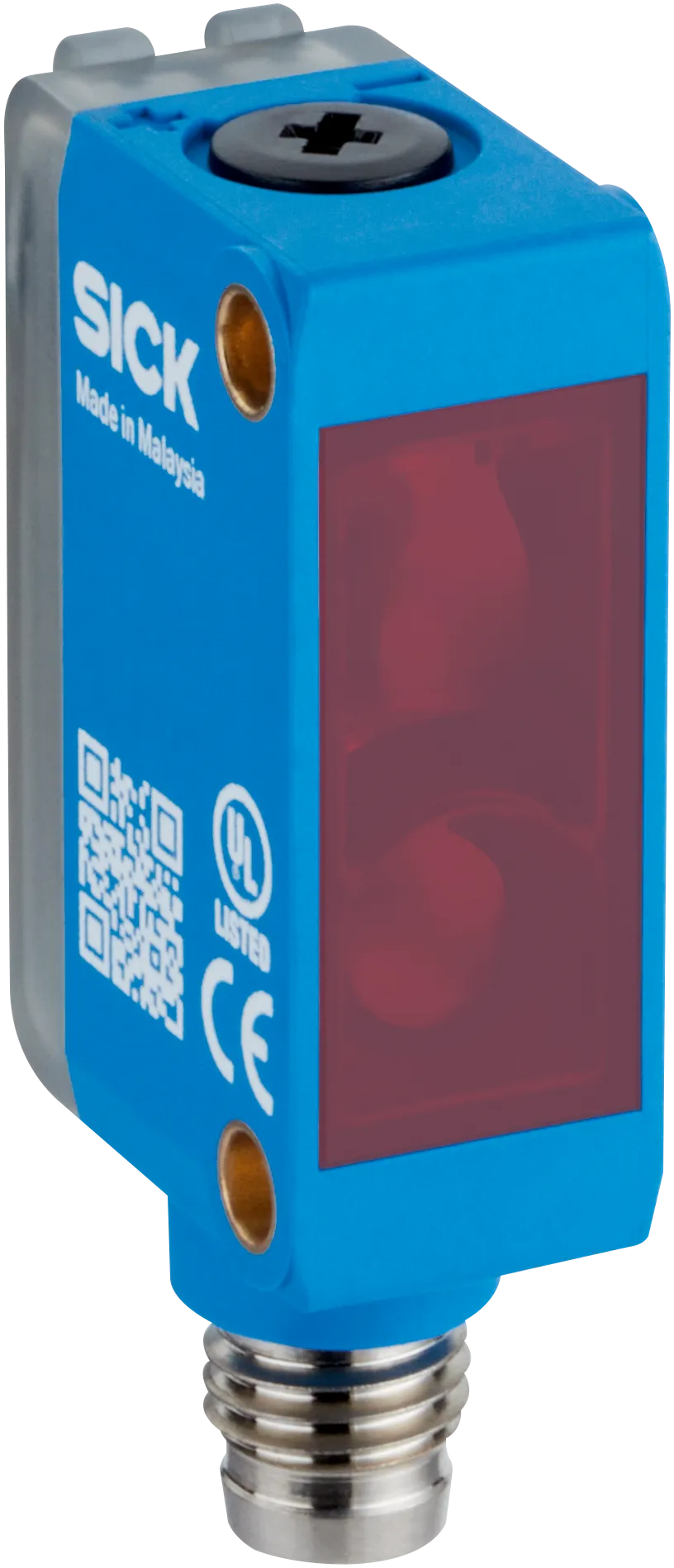

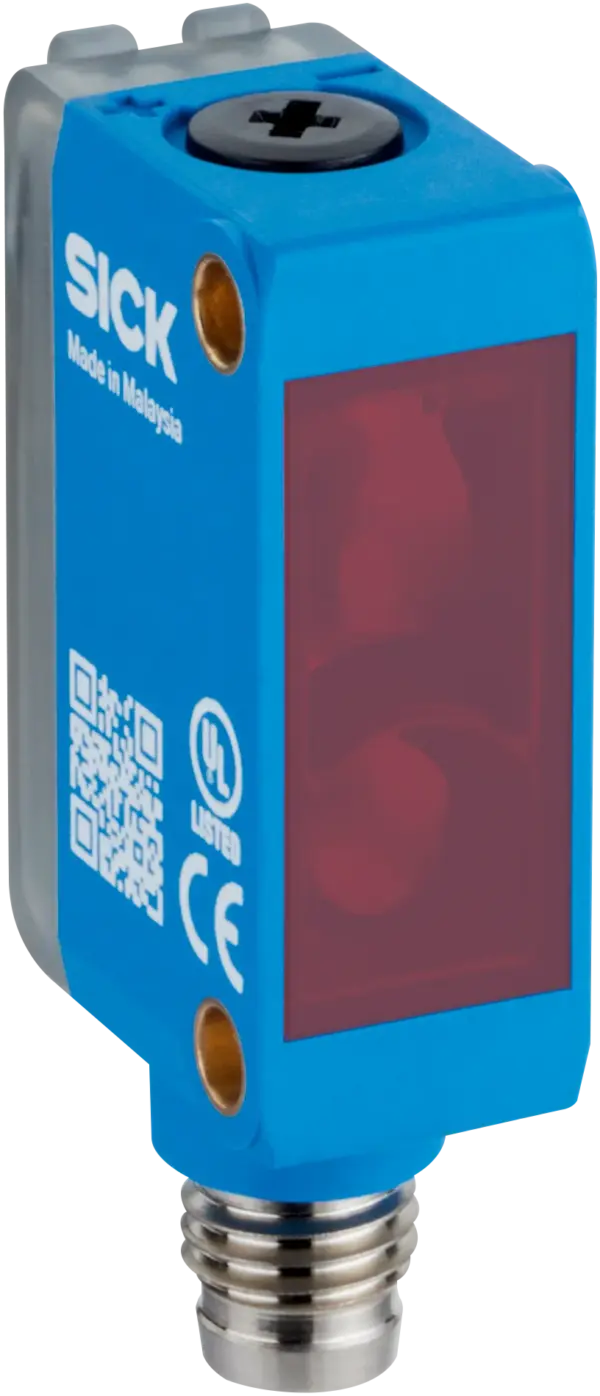

Photoelectric sensors | G6 | GTB6SP-22A1116EZZZ | Sensing range min. / max.: 5 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Sensing range min. | 5Â mm |
| Sensing range max. | 400Â mm |
| Adjustable switching threshold for background suppression | 35 mm ... 400 mm |
| Minimum distance between set sensing range and background (black 6% / white 90%) | 5Â mm, at a distance of 120Â mm |
| Recommended sensing range for the best performance | 35 mm ... 140 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | Ø 5.6 mm (150 mm) |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 640Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Potentiometer | For setting the sensing range, 5Â rotations |
| Operating mode switch | For inverting the switching function (light/dark switching) |
| LED green | Operating indicatorStatic on: power on |
| LED yellow | Status of received light beamStatic on: object presentStatic off: object not present |
Safety-related parameters
| MTTFD | 3,564Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 5 Vpp |
| Usage category | DC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2) |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Number | 1 |
| Type | PNP |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-3Â VÂ /Â 0Â V |
| Output current Imax. | ≤ 100 mA 2) |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 625 µs 3) |
| Switching frequency | 1,000 Hz 4) |
| Function of pin 4/black (BK) | Digital output, light switching, object present → output Q HIGH |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be switched |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.6 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing | Plastic, ABS |
| Front screen | Plastic, PMMA |
| Male connector | Metal, copper alloy (C3604 CUZN39PB3) |
| Weight | Approx. 10 g |
| Maximum tightening torque of the fixing screws | 0.4Â Nm |
Ambient data
| Enclosure rating | IP67 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Typ. Ambient light immunity | Sunlight: ≤ 30,000 lx |
| Shock resistance | 30Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 0.5 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 95Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
