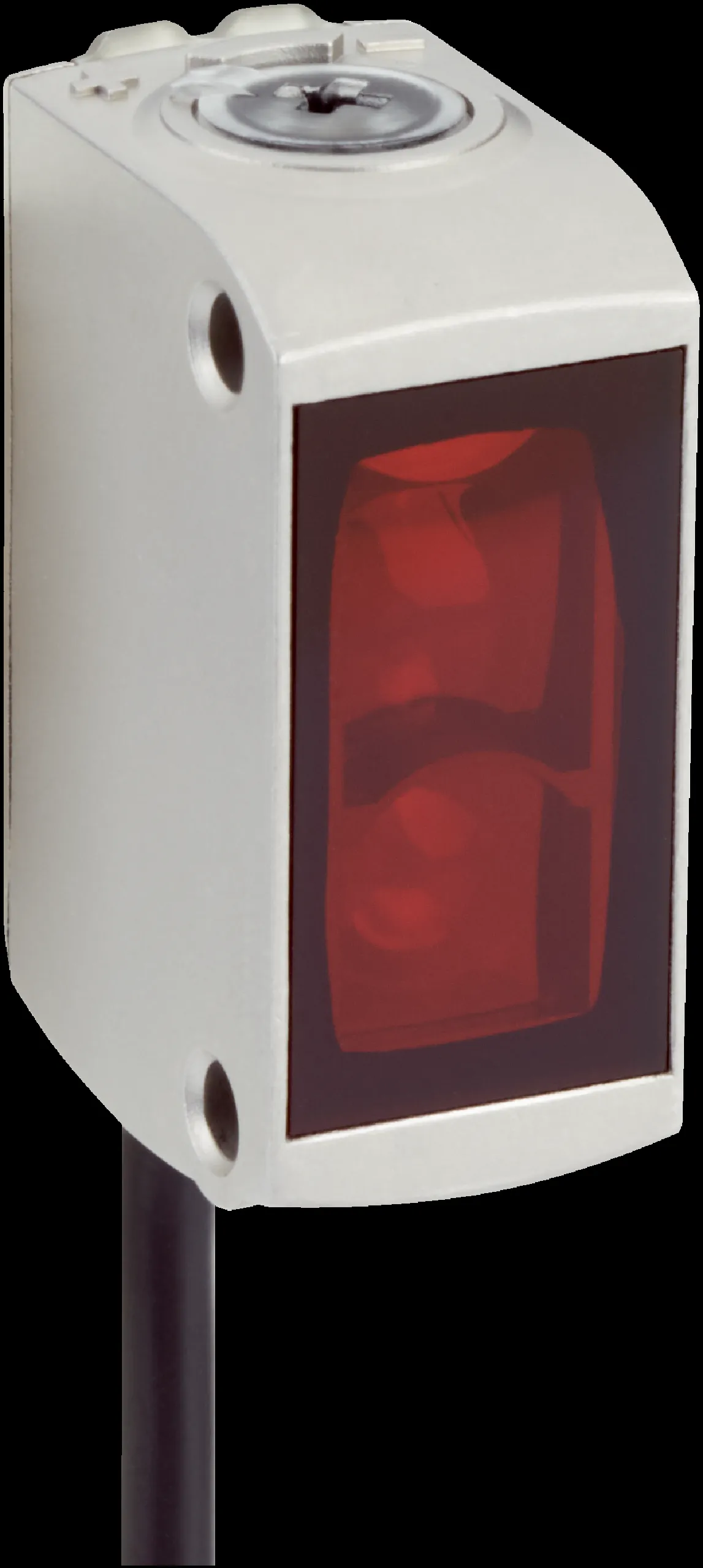

Sick GTB6-F7411V
Photoelectric sensors | G6 | GTB6-F7411V | Sensing range max.: 5 mm … 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G6 | GTB6-F7411V | Sensing range max.: 5 mm … 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Sensing range max. | 5 mm ... 250 mm 1) |
| Sensing range | 35 mm ... 140 mm |
| Light source | PinPoint LEDÂ 2) |
| Type of light | Visible red light |
| Light spot size (distance) | ÃÂ 6Â mm (100Â mm) |
| Wave length | 650Â nm |
| Adjustment | Mechanical spindle, 5Â turns |
| Special applications | Hygienic and washdown zones |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | VS - (⤠3 V) / approx. 0 V |
| Output current Imax. | â¤Â 100 mA 4) |
| Response time | < 1.25 ms 5) |
| Switching frequency | 500 Hz 6) |
| Output function | Complementary switching output |
| Circuit protection | AÂ 7)BÂ 8)DÂ 9) |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 15 mm x 44 mm x 22 mm |
| Connection | Cable with M12 male connector, 4-pin 1) |
| Length of cable (L) | 300 mm 1) |
| Housing | Metal, Stainless steel V4A (1.4404, 316L) |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 70Â g |
Ambient data
| Enclosure rating | IP67IP69KÂ 1) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C 2) |
| Ambient temperature, storage | â30 °C ... +75 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| ECOLAB certificate | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
