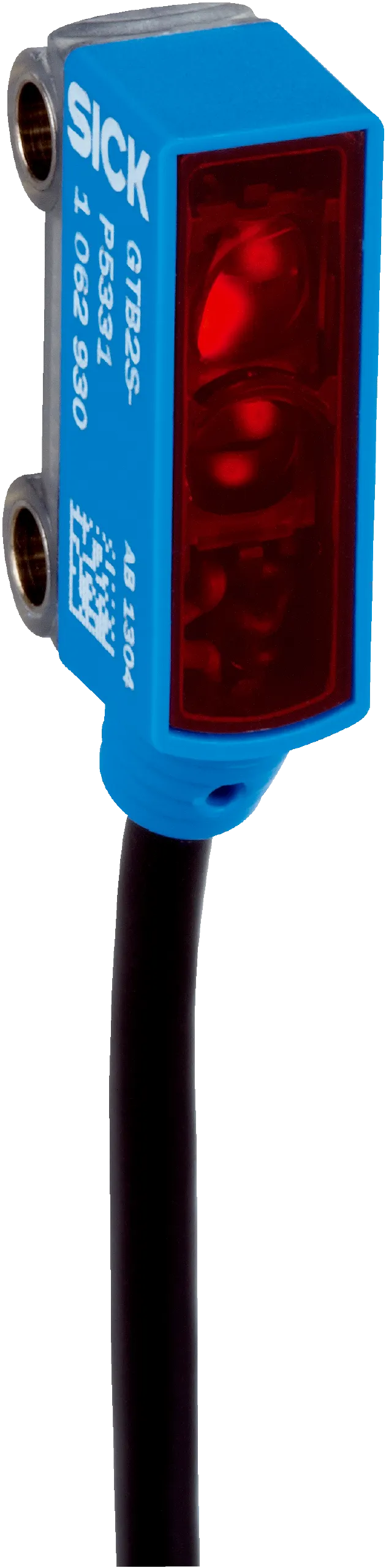

Sick GTB2S-E1331
Photoelectric sensors | G2 | GTB2S-E1331 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Dark swi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G2 | GTB2S-E1331 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm ... 36 mm 1) |
| Sensing range | 5 mm ... 30 mm 2) |
| Background suppression typ. from | 38Â mm |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 3) |
| Light spot size (distance) | Ø 3 mm (15 mm) |
| Wave length | 640Â nm |
| Adjustment | None |
| Special applications | Detecting small objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 20Â mAÂ 3) |
| Switching output | NPN |
| Switching mode | Dark switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.6 ms 4) |
| Switching frequency | 800 Hz 5) |
| Connection type | Cable, 3-wire, 2 m 6) |
| Cable material | Plastic, PVC |
| Cable diameter | Ø 3 mm |
| Circuit protection | AÂ 7)CÂ 8)DÂ 9) |
| Weight | 17.5Â g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
Safety-related parameters
| MTTFD | 3,378Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
