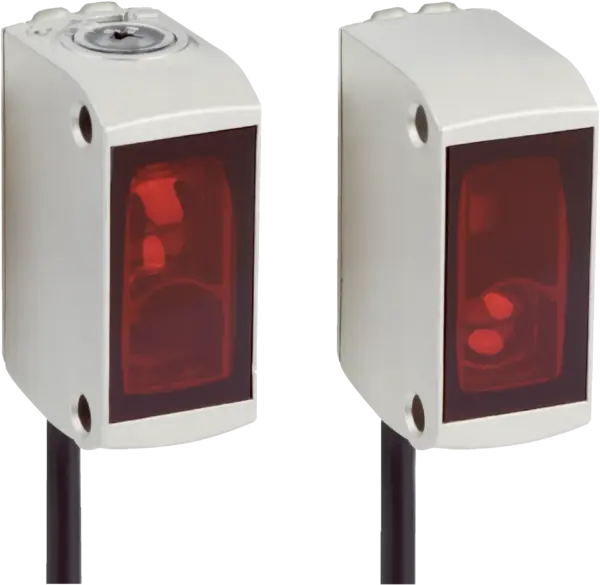

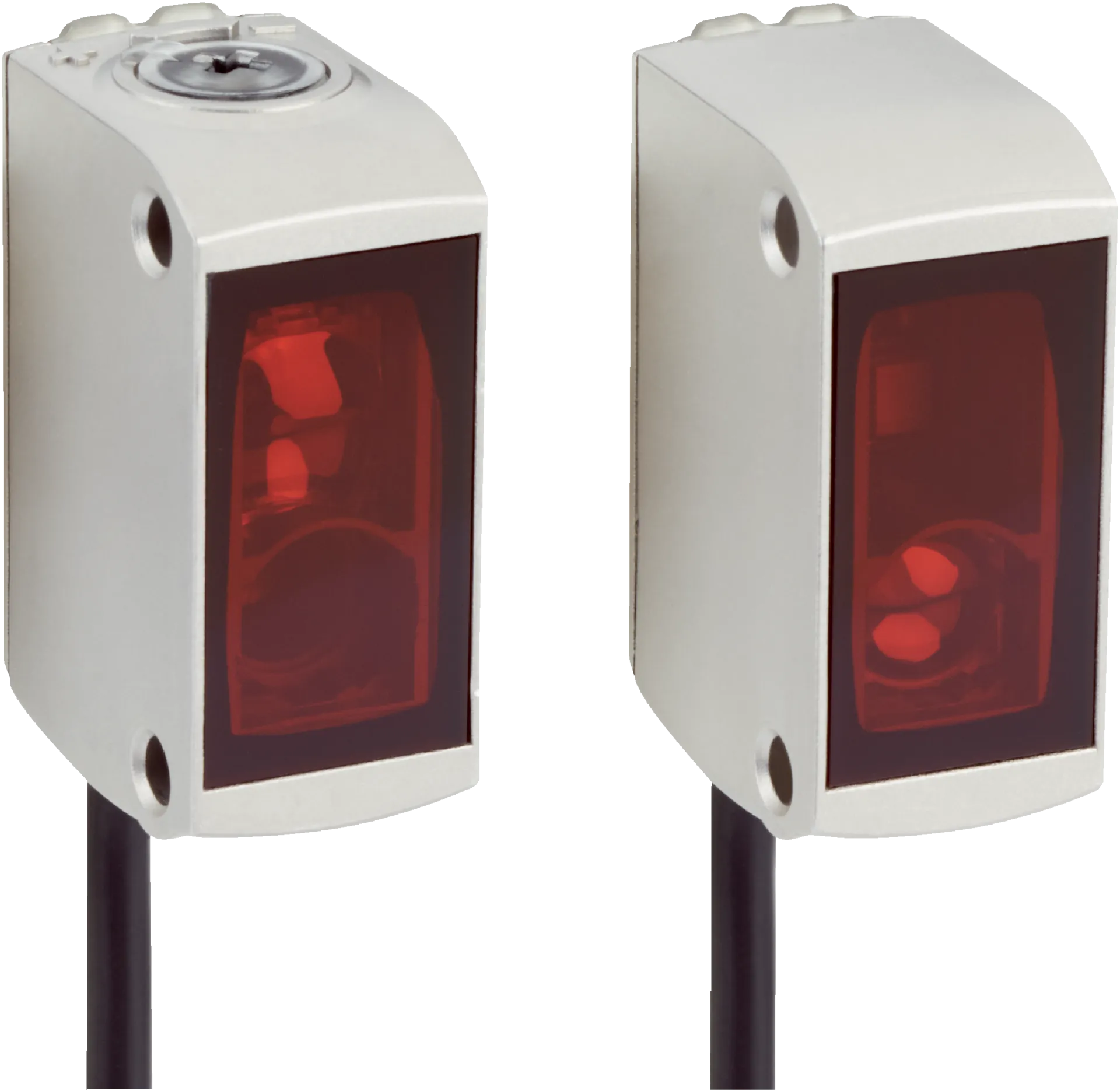

Sick GSE6-F2421V
Photoelectric sensors | G6 | GSE6-F2421V | Sensing range max.: 0 m … 14.5 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G6 | GSE6-F2421V | Sensing range max.: 0 m … 14.5 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Type of light: Infrared light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Sensing range max. | 0 m ... 14.5 m |
| Sensing range | 0 m ... 10 m |
| Polarisation filter | No |
| Light source | LEDÂ 1) |
| Type of light | Infrared light |
| Light spot size (distance) | ÃÂ 460Â mm (10Â m) |
| Wave length | 850Â nm |
| Adjustment | Potentiometer, 270° |
| Special applications | Hygienic and washdown zones |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | VS - (⤠3 V) / approx. 0 V |
| Output current Imax. | â¤Â 100 mA 4) |
| Response time | < 625 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Output function | Complementary switching output |
| Circuit protection | AÂ 7)BÂ 8)DÂ 9) |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 15 mm x 44 mm x 22 mm |
| Connection | Cable, 4-wire, 2 m 1) |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 2 m 1) |
| Housing | Metal, Stainless steel V4A (1.4404, 316L) |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 150Â g |
Ambient data
| Enclosure rating | IP67IP69KÂ 1) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C 2) |
| Ambient temperature, storage | â30 °C ... +75 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| ECOLAB certificate | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
