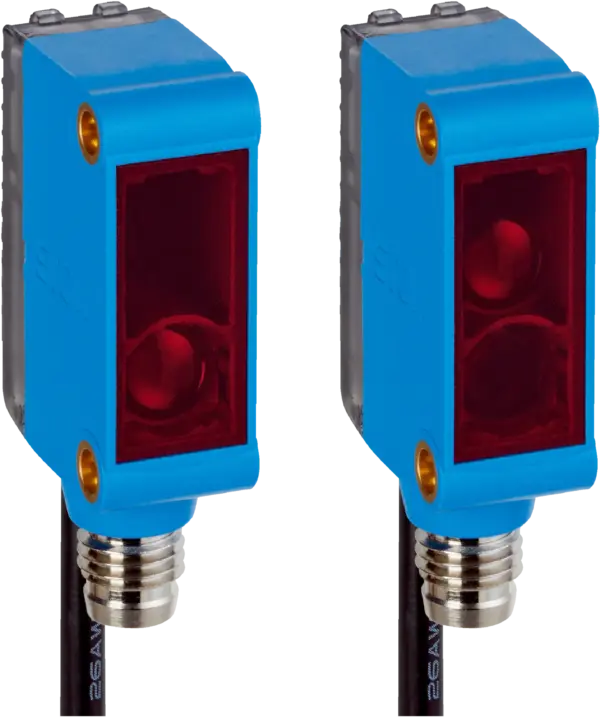

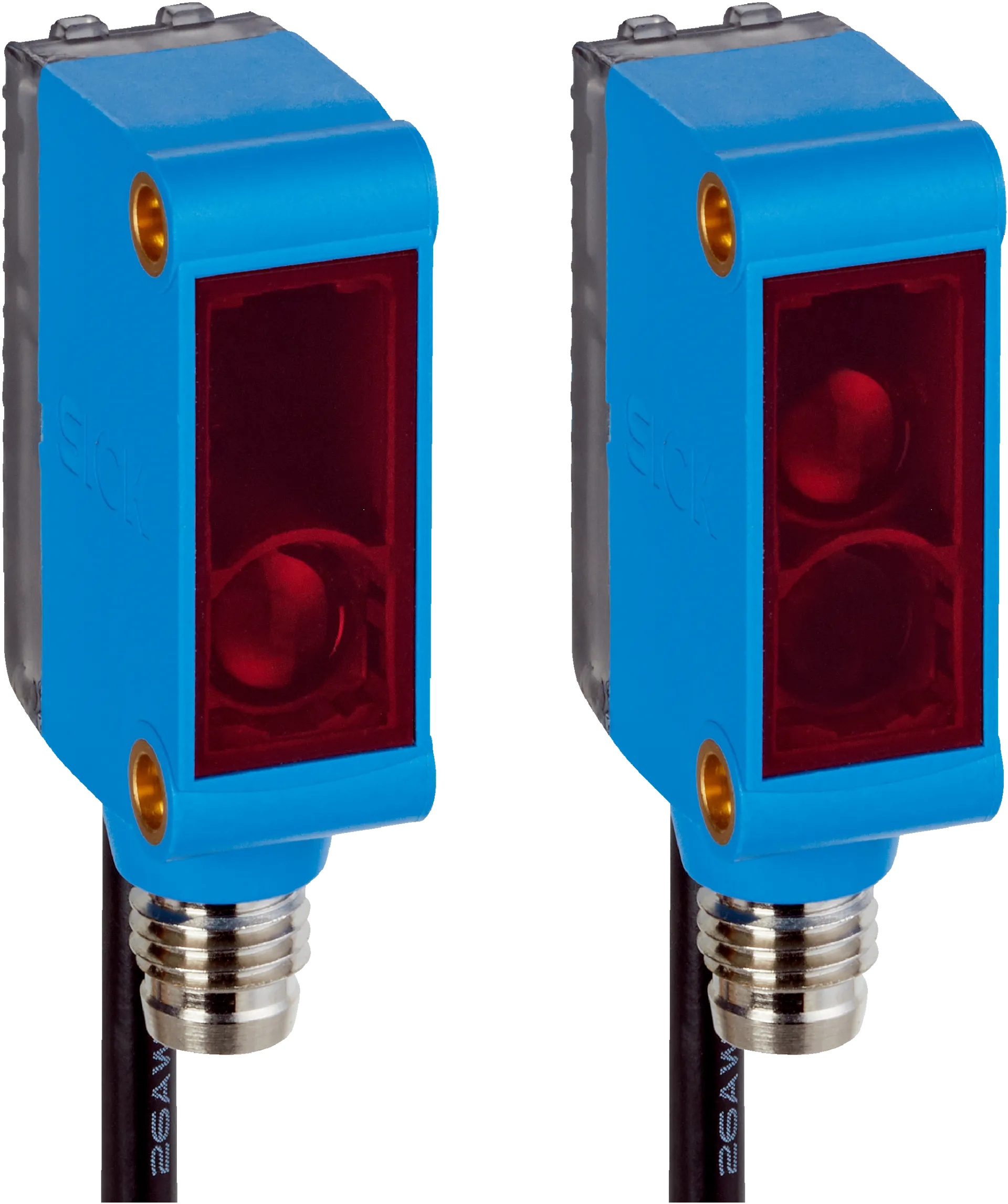

Sick GSE6-CA021K00
Automation light grids | FlexChain | GSE6-CA021K00 | Device version: FlexChain Guest | Operating range: 15 m | Length of cable: 0.5 m
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | FlexChain | GSE6-CA021K00 | Device version: FlexChain Guest | Operating range: 15 m | Length of cable: 0.5 m
Specification
Features
| Device version | FlexChain Guest |
|---|---|
| Sensor principle | Sender/receiverLight grid system |
Mechanics/electronics
| Light source | PinPoint LED, Infrared light |
|---|---|
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 850Â nm |
| Supply voltage Vs | 12Â V, via FlexChain (host) |
| Adjustment | Cable (Sensitivity)Via FlexChain (host) |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection type | Male connector M8, 4-pin, Cable with female connector, M8, 4-pin, 0.5Â m |
| Housing material | Plastic (ABS) |
| Enclosure rating | IP65, IP67 |
| Protection class | III |
| Weight | Approx. 23 g |
Performance
| Operating range | 15Â m |
|---|
Ambient data
| Shock resistance | Single shocks 30Â g, 11Â ms 6Â per axle / continuous shocks 25Â g, 6Â ms, 1,000Â per axis |
|---|---|
| Vibration resistance | Sinusoidal oscillation 20-2,000Â Hz 10Â g, 3Â h per axle |
| EMC | ENÂ 61000-6-2, ENÂ 61000-6-3 |
| Ambient light immunity | Direct: 40,000 lx 1) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –25 °C ... +70 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
