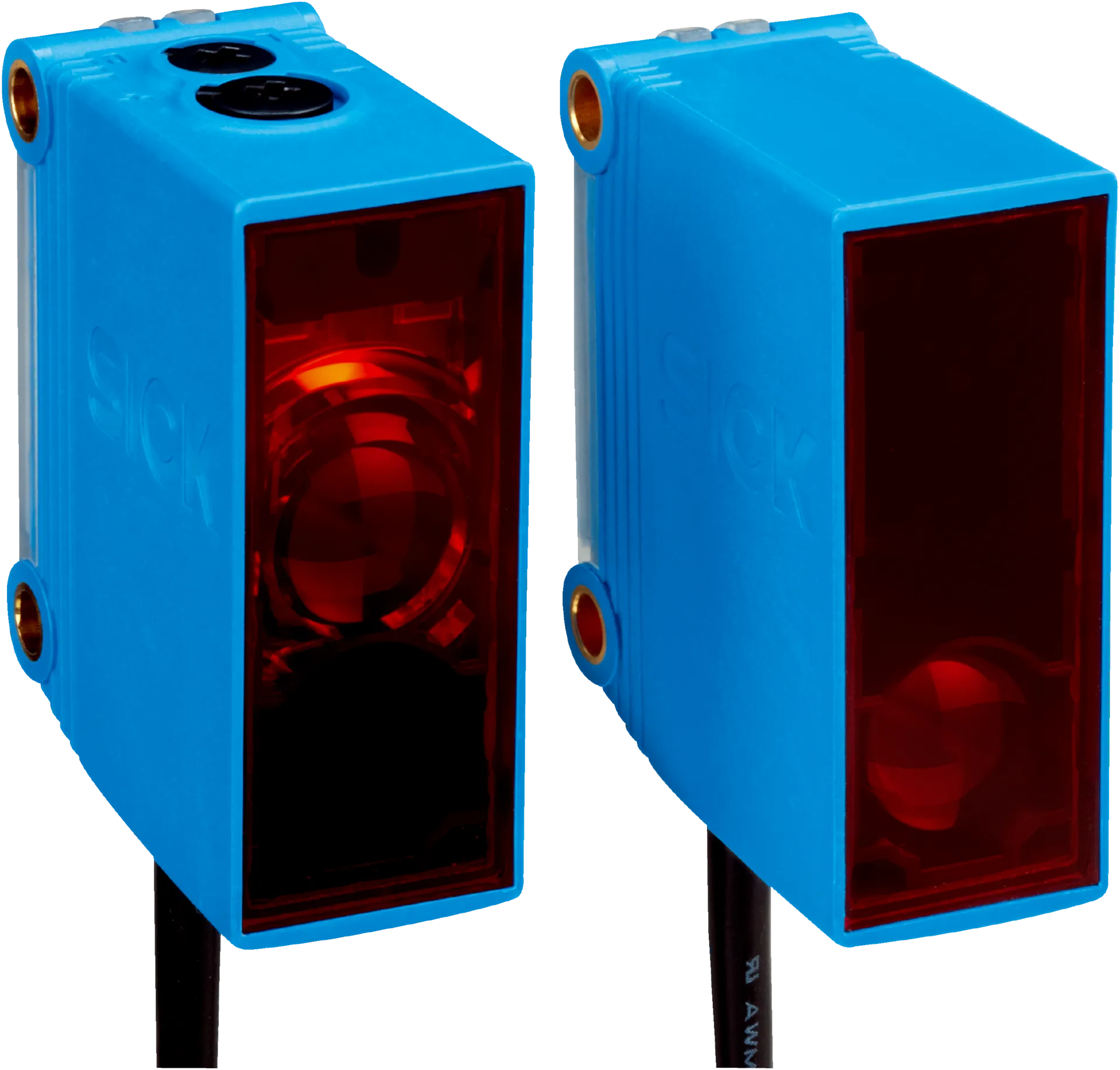

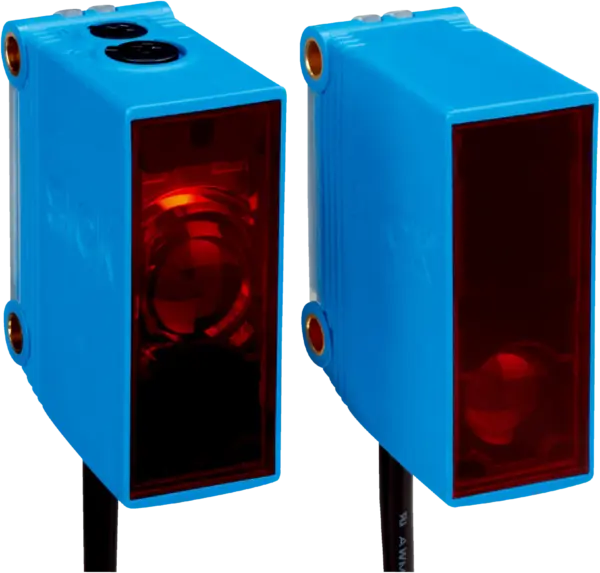

Sick GSE10-N1211
Photoelectric sensors | G10 | GSE10-N1211 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G10 | GSE10-N1211 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: –
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 40 m |
| Sensing range | 0 m ... 35 m |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 1) |
| Light spot size (distance) | Ø 180 mm (15 m) |
| Wave length | 625Â nm |
| Adjustment | Potentiometer, 270° |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Power consumption, sender | ≤ 15 mA |
| Power consumption, receiver | ≤ 20 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs 3) |
| Switching frequency | 1,000 Hz 4) |
| Connection type | Cable, 3-wire, 2 m 5) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.14 mm² |
| Circuit protection | AÂ 6)BÂ 7)CÂ 8)DÂ 9) |
| Protection class | III |
| Weight | 180Â g |
| Housing material | Plastic, ABS/PMMA |
| Enclosure rating | IP67 |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| Test input | Sender OFF at "Test" 0Â V |
| Ambient operating temperature | –30 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| More standards | UL325Â 10) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
