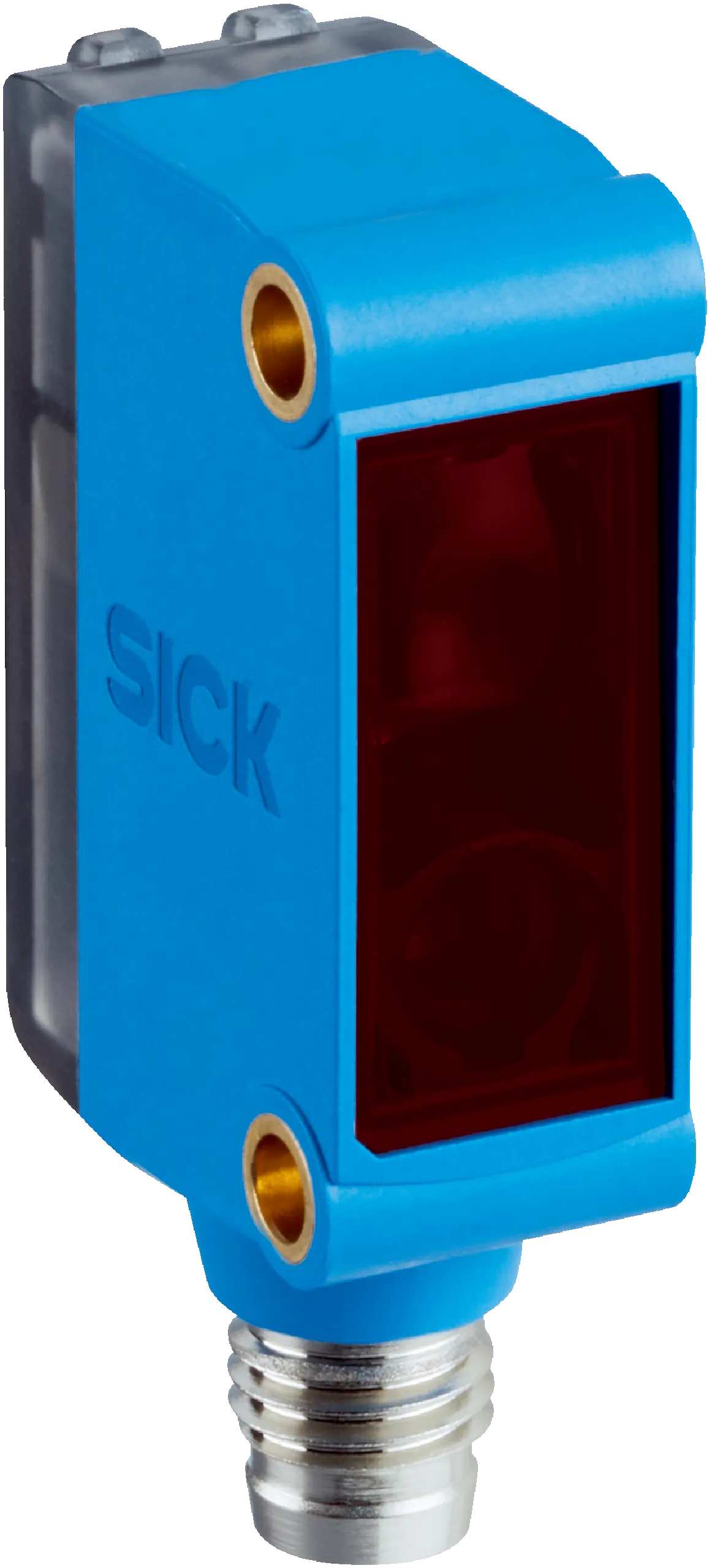

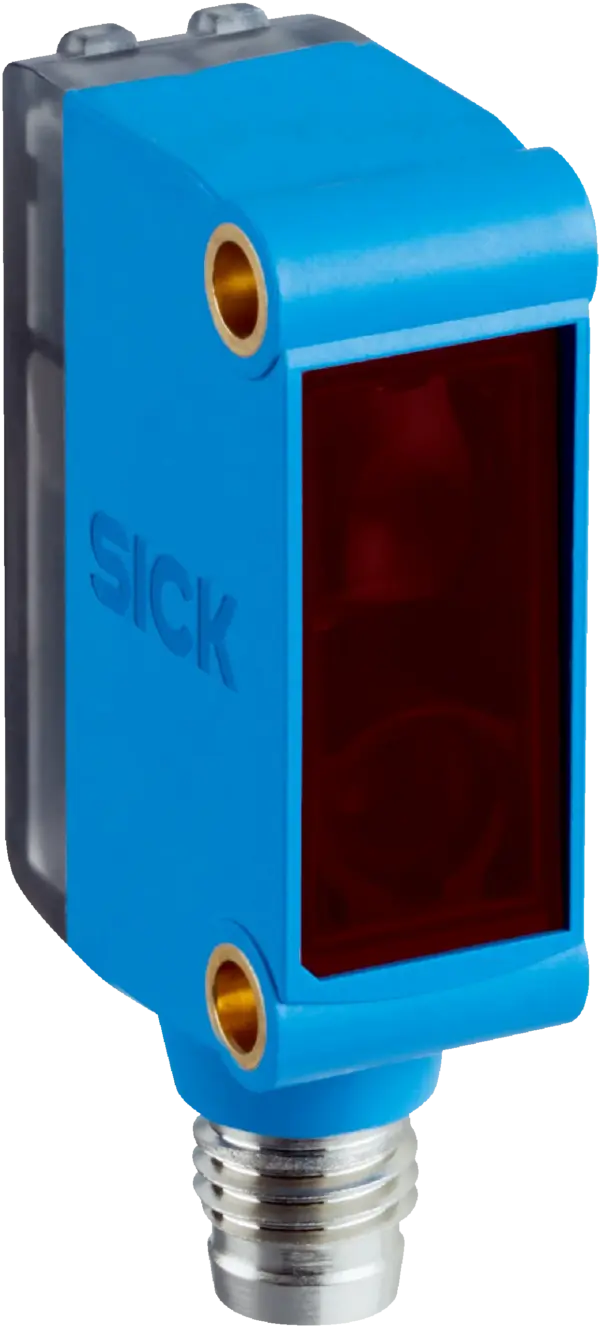

Sick GS6-D4312S71
Photoelectric sensors | G6 | GS6-D4312S71 | Sensing range max.: 0 m … 10 m | Functional principle: Through-beam photoelectric sensor | Connection type: Male connector M8, 4-pin | Light source: PinPo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | G6 | GS6-D4312S71 | Sensing range max.: 0 m … 10 m | Functional principle: Through-beam photoelectric sensor | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Special features: Wide optical angle of dispersion, sender only. To work with GE6-P4212S71, 1112774, mounting holes M3 un-threaded | Housing: Rectangular | Included with delivery: Fastening screws included
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Sensing range max. | 0 m ... 10 m |
| Sensing range | 0 m ... 8 m |
| Polarisation filter | No |
| Light source | PinPoint LEDÂ 1) |
| Type of light | Visible red light |
| Light spot size (distance) | ÃÂ 1,550Â mm (10Â m) |
| Wave length | 650Â nm |
| Adjustment | None |
| Special features | Wide optical angle of dispersionSender only. To work with GE6-P4212S71, 1112774Mounting holes M3 un-threaded |
| Items supplied | Fastening screws included |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Protection class | III |
| Output current Imax. | â¤Â 100 mA 4) |
| Response time | < 350 µs 5) |
| Switching frequency | 1,700 Hz 6) |
| Circuit protection | AÂ 7)BÂ 8)DÂ 9) |
| Special feature | Sender |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing | Plastic, ABS/PC |
| Front screen | Plastic, PMMA |
| Weight | Approx. 40 g |
Ambient data
| Enclosure rating | IP67 |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C 1) |
| Ambient temperature, storage | â40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
